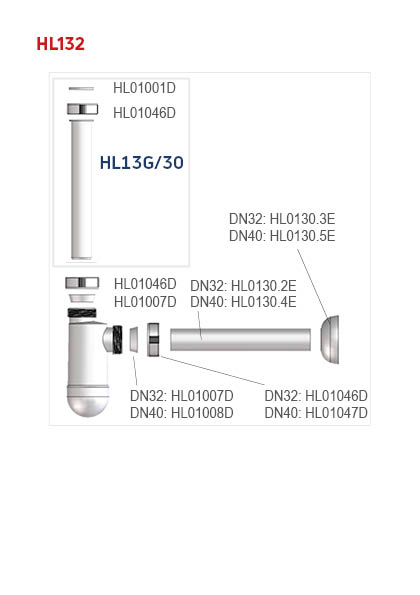

spare parts
HL01007DProduct overview / Wash basinsgasket wedge shaped T30
HL0130.4EProduct overview / Wash basinsoutlet DN40
HL0130.5EProduct overview / Wash basinsrosette DN40
HL13G/30Product overview / Kitchen traps / attachmentsdip-tube DN32x1 1/4'
HL01001DProduct overview / Wash basinsgasket 1 1/4'
HL01046DProduct overview / Kitchen trapslocking nut 1 1/4'
attachment
HL12.3Product overview / Kitchen traps / attachmentsreducer/spacer 1 1/2'x1 1/4'
HL13/30Product overview / Kitchen traps / attachmentsdip-tube DN32x1 1/4' with appliance hose connector
HL19.2Product overview / Washing devices / attachmentsappliance hose connector 1'x8-13mm, O-ring
HL2Product overview / Washing devices / attachmentsappliance hose twin connector with non-return valve. O-ring
HL2.1Product overview / Washing devices / attachmentsappliance hose twin connector with non-return and air-admittance valve. O-ring
HL2.2Product overview / Washing devices / attachmentsappliance hose twin connector for washing machine and dryer with non-return valve. O-ring
HL3Product overview / Kitchen traps / attachmentsnon-return valve 1'
HL5/40Product overview / Attachmentsbrass soldering connector DN40
HL902T/40Product overview / Air admittance valvesair admittance valve 1' with tee DN40x1 1/2'
HL904TProduct overview / Air admittance valvesair admittance valve DN40 with tee DN40x1 1/2'
Alternatives
technical data
| material | PP |
| dimension | DN40 x 5/4" |
| capacity |
| weight | 0,2 [kg] |
| EAN | 9003076321322 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,214 [kg] |
| EAN/pack. | 9003076321322 |
| height/width/depth | 120/120/280 [mm] |
| volume | 0,004032000 [m3] |
carton
| unit | 60 [pcs.] |
| weight | 14 [kg] |
| EAN/pack. |
| height/width/depth | 400/400/800 [mm] |
| volume | 0,128000000 [m3] |
single use pallet
| unit | 300 [pcs.] |
| weight | 82 [kg] |
| EAN/pack. |
| height/width/depth | 850/800/1200 [mm] |
| volume | 0,816000000 [m3] |
