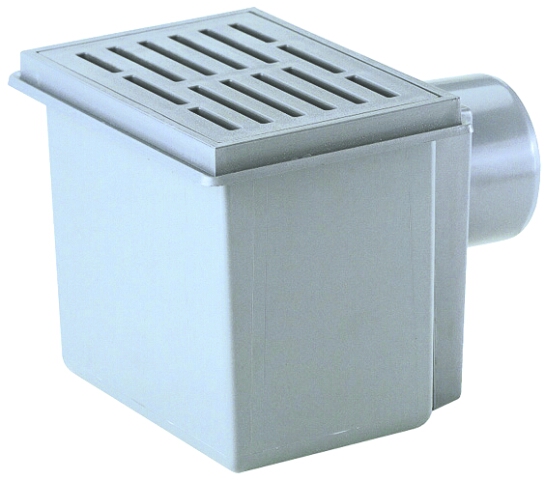

basement drain DN110 horizontal 170x240mm/155x225mm plastic
basement drain DN110 horizontal with trap seal, plastic grate frame 170 x 240 mm, plastic grate 155 x 225 mm, cleaning eye and bucket. Trap seal height: 60 mm.

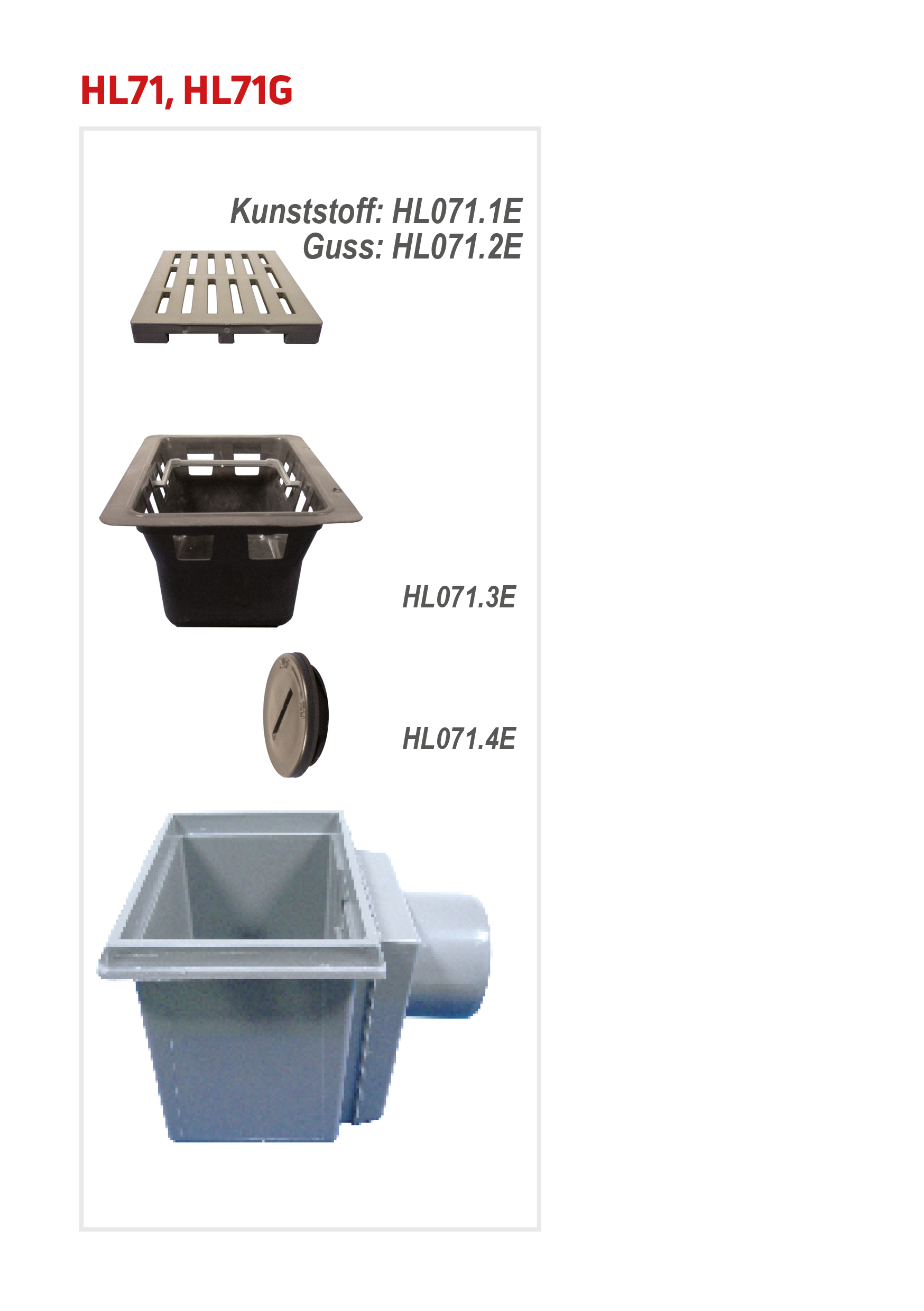

spare parts
HL071.1EProduct overview / Anti flood valvesplastic grate 155x225mm
HL071.3EProduct overview / Anti flood valvesbucket
HL071.4EProduct overview / Anti flood valvescleaning eye nut
Alternatives
extensions
technical data
| material | ABS |
| dimension | DN110 |
| capacity | 2,30 l/sec |
| weight | 1,4 [kg] |
| EAN | 9003076700714 |
| installation height | 220 mm |
| grate frame | 170x240mm |
| grate | Kunststoff 155x225mm |
| load class | K - 300 kg |
| inlet |
| standards | EN 1253 |
carton
| unit | 4 [pcs.] |
| weight | 6,2 [kg] |
| EAN/pack. |
| height/width/depth | 460/300/520 [mm] |
| volume | 0,071760000 [m3] |
single use pallet
| unit | 100 [pcs.] |
| weight | 167 [kg] |
| EAN/pack. |
| height/width/depth | 2000/900/1220 [mm] |
| volume | 2,196000000 [m3] |
pcs.
| unit | 1 [pcs.] |
| weight | 1,4 [kg] |
| EAN/pack. | 9003076700714 |
| height/width/depth | 220/240/300 [mm] |
| volume | 0,015840000 [m3] |
