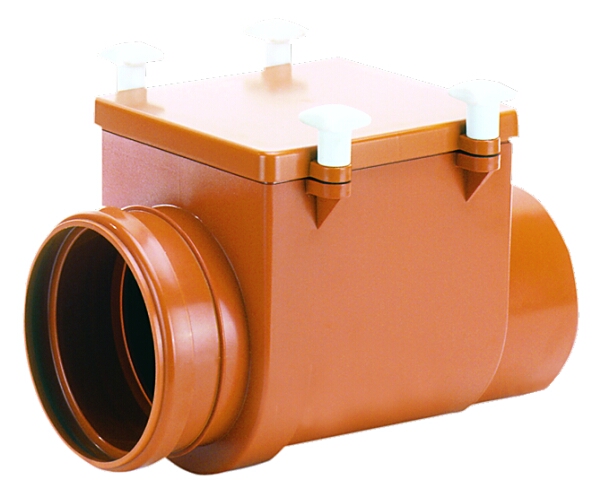

anti-flood valve DN160 with stainless steel flap
anti-flood valve DN160 with automatic stainless steel flap and cleaning eye.
ATTENTION! New model - identificable by sockets molded to the body. Models with screwed sockets have other spare parts - please contact HL!
spare parts
HL01081DProduct overview / Anti flood valvescasing gasket NEW
HL01090DProduct overview / Anti flood valveslip seal DN160
HL0710.33EProduct overview / Anti flood valvescasing cover NEW
HL0710.35EProduct overview / Anti flood valvesflap cartridge NEW
HL01080DProduct overview / Anti flood valvesflap seal NEW
HL0710.8EProduct overview / Anti flood valvesbutterfly nuts (4 Stk.)
attachment
Alternatives
HL715.1Product overview / Anti flood valves / anti flood valvesanti-flood valve DN160 with stainless steel flap and manual blocking
HL715.2Product overview / Anti flood valves / anti flood valvesanti-flood valve DN160 with 2 stainless steel flaps and manual blocking
HL715.2EPCProduct overview / Anti flood valves / anti flood valvesanti-flood valve DN160 with electronically controlled flap, additional stainless steel flap and manual blocking. With interface
technical data
| material | ABS |
| dimension | DN160 |
| capacity |
| weight | 2,694 [kg] |
| EAN | 9003076907151 |
| installation height | 248 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 3,58 [kg] |
| EAN/pack. | 9003076907151 |
| height/width/depth | 290/275/420 [mm] |
| volume | 0,033495000 [m3] |
single use pallet
| unit | 54 [pcs.] |
| weight | 214 [kg] |
| EAN/pack. | 9003076999101 |
| height/width/depth | 2050/870/1300 [mm] |
| volume | 2,318550000 [m3] |
