used with
HL66.3Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/147x147mm/138x138mm
HL317Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 147x147mm/138x138mm
HL317HProduct overview / Floor drains / vertical / bitumen membranefloor drain DN50/75/110 vertical with bitumen membrane, 147x147mm/138x138mm
HL72.1HNProduct overview / Floor drains / horizontal / bitumen membranefloor drain DN75/110 horizontal with bitumen membrane, 147x147mm/138x138mm
HL72.1NProduct overview / Floor drains / horizontal / flangefloor drain DN75/110 horizontal with flange, 147x147mm/138x138mm
HL66.4Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/147x147mm/138x138mm plastic
HL72.1Product overview / Floor drains / horizontal / flangefloor drain DN75/110 horizontal with flange, 147x147mm/138x138mm plastic
HL72.1HProduct overview / Floor drains / horizontal / bitumen membranefloor drain DN75/110 horizontal with bitumen membrane, 147x147mm/138x138mm plastic

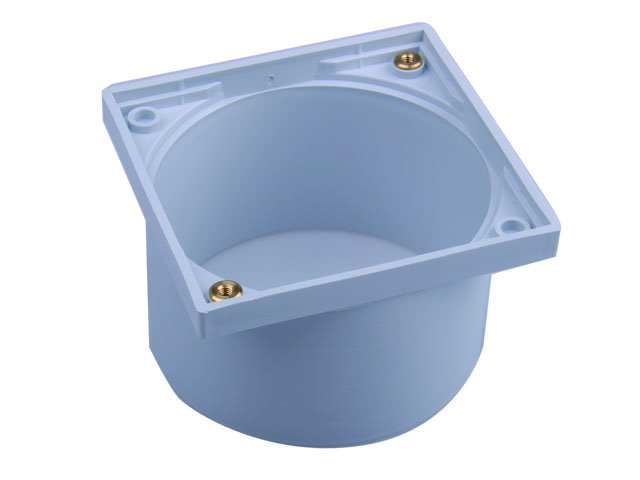

technical data
| material | PP |
| dimension | d 145mm |
| capacity |
| weight | 0,137 [kg] |
| EAN | 9003076317028 |
| installation height | 90mm |
| grate frame | 147x147mm |
| grate |
| load class |
| inlet |
| standards |
pcs.
| unit | 1 [pcs.] |
| weight | 0,137 [kg] |
| EAN/pack. | 9003076317028 |
| height/width/depth | 100/150/150 [mm] |
| volume | 0,002250000 [m3] |
