product link (product category - independent)

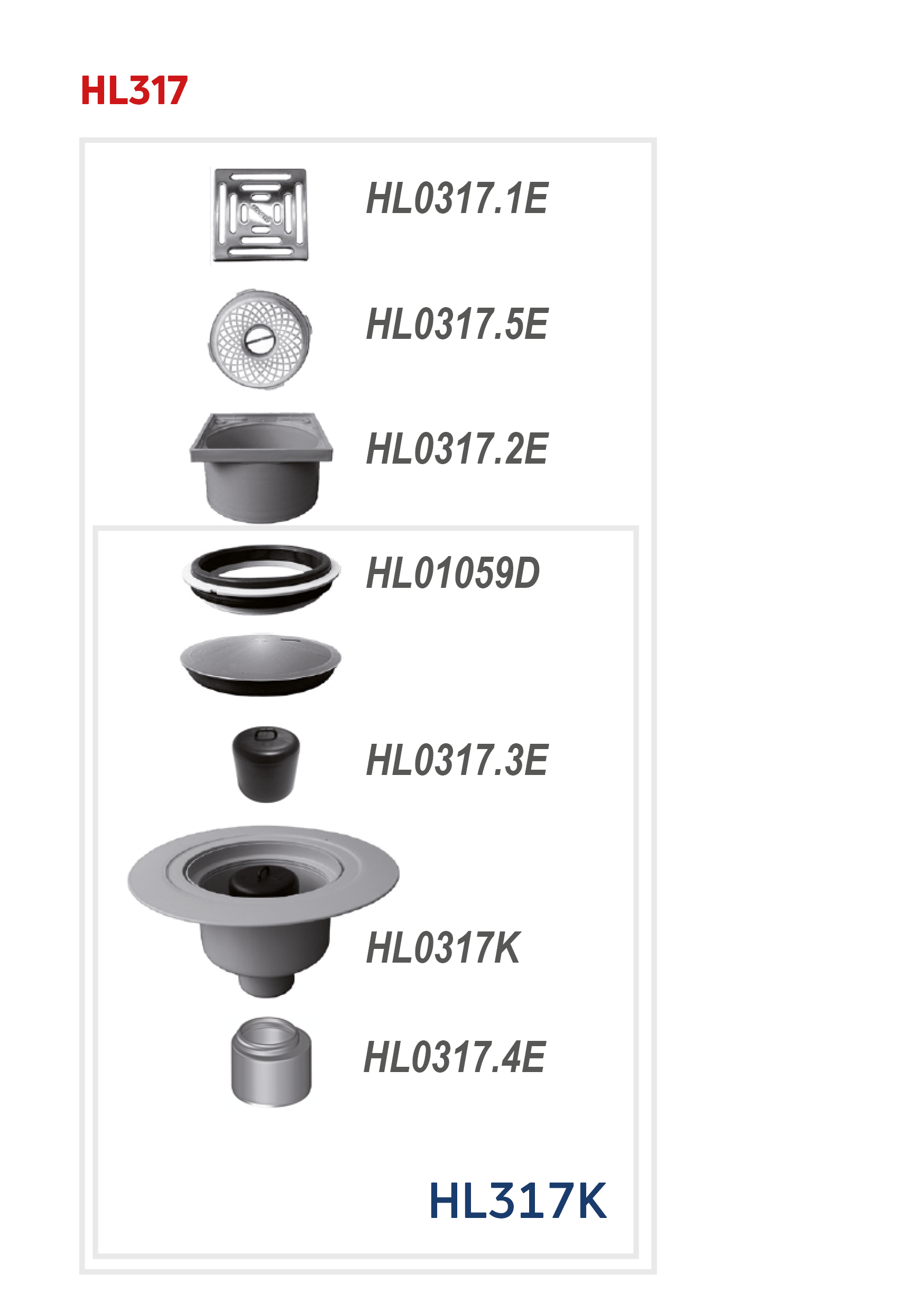

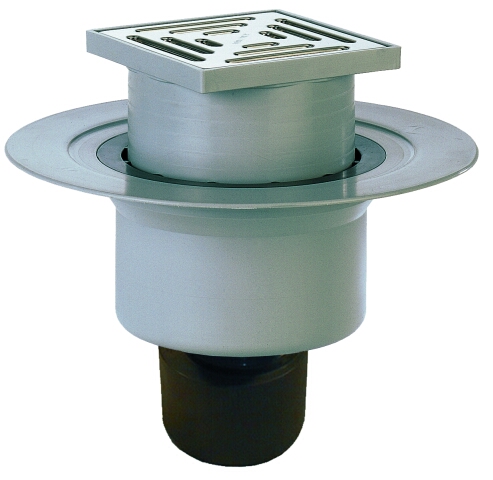

floor drain DN50/75/110 vertical with flange, trap seal, cut-to-size grate frame 20 - 70 mm / 147 x 147 mm, stainless steel grate 138 x 138 mm and strainer. Comes with lot cover.
material | PP, Edelstahl |
dimension | DN50/75/110 |
capacity | 1,80 l/s |
weight | 1,05 [kg] |
EAN | 9003076703173 |
installation height | 220 mm |
grate frame | 20-70 mm/147x147 mm |
grate | Edelstahl 138x138 mm |
load class | K3 - 300 kg |
inlet |
standards | EN 1253 |
unit | 1 [pcs.] |
weight | 1,25 [kg] |
EAN/pack. | 9003076703173 |
height/width/depth | 185/305/305 [mm] |
volume | 0,017209625 [m3] |
unit | 84 [pcs.] |
weight | 115 [kg] |
EAN/pack. |
height/width/depth | 1950/800/1200 [mm] |
volume | 1,872000000 [m3] |
