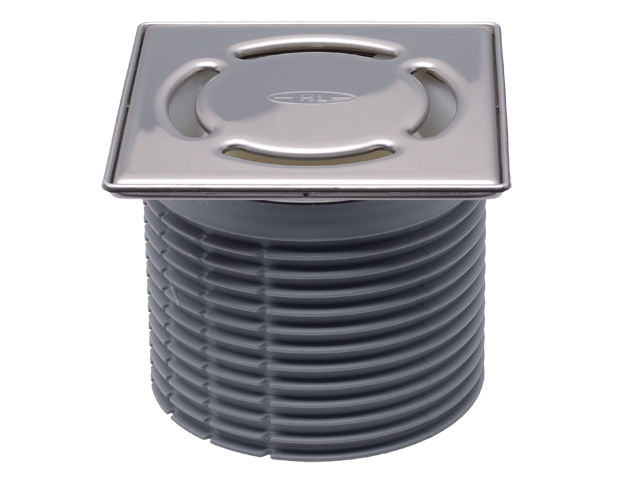

grating d 110 mm with stainless steel frame 121 x 121 mm, stainless steel grate 115 x 115 mm and trap seal. Total height 100 mm, frame height 6 mm. System "System "KLICK-KLACK" - the new arresting system for grates. Loose or lost grates belong to the past. Simply insert the grate into the frame and "click" it in - ready! Comes with supporting frame / cover.
material | PP, Edelstahl V4A |
dimension | d 110 mm |
capacity |
weight | 0,425 [kg] |
EAN | 9003076015337 |
installation height | 100mm |
grate frame | 121x121mm |
grate | Edelstahl 115x115mm |
load class | K - 300 kg |
inlet |
standards |
unit | 1 [pcs.] |
weight | 0,43 [kg] |
EAN/pack. | 9003076015337 |
height/width/depth | 125/132/132 [mm] |
volume | 0,002178000 [m3] |
