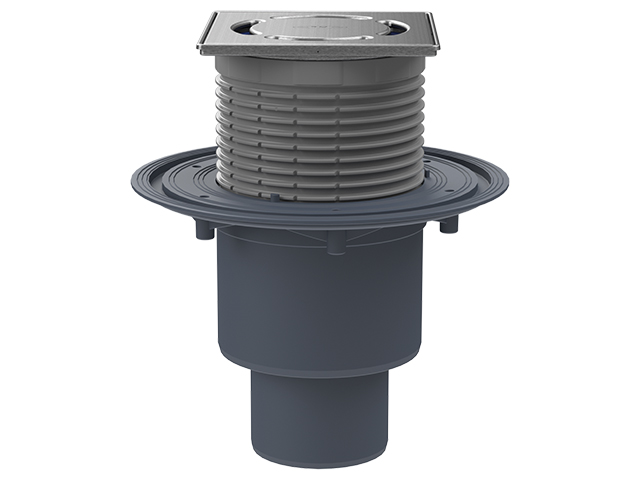

floor drain DN50/75/110 vertical with flange, trap seal, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK" - the new arresting system for grates. Loose or lost grates belong to the past. Simply insert the grate into the frame and "click" it in - ready!
| material | PP, Edelstahl |
| dimension | DN50/75/110 |
| capacity | 0,67 l/s |
| weight | 0,71 [kg] |
| EAN | 9003076016327 |
| installation height | 158 mm |
| grate frame | 10-80 mm/121x121mm V2A |
| grate | Edelstahl 115x115 mm |
| load class | K3 - 300 kg |
| inlet |
| standards | EN1253 |
| unit | 1 [pcs.] |
| weight | 0,9 [kg] |
| EAN/pack. | 9003076016327 |
| height/width/depth | 155/225/295 [mm] |
| volume | 0,010288125 [m3] |
| unit | 143 [pcs.] |
| weight | 139 [kg] |
| EAN/pack. |
| height/width/depth | 1900/800/1200 [mm] |
| volume | 1,824000000 [m3] |
