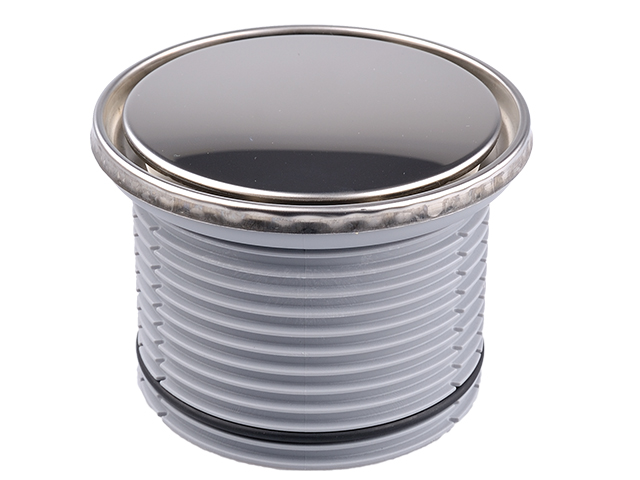

Grating round d 110 mm with stainless steel frame trap seal Primus Blue .Grate D133/113
grating round d 110 mm with stainless steel frame d 131 mm, stainless steel coverplate d 112 mm and trap seal PRIMUS BLUE. Total height 93 mm, frame height 16 mm
spare parts
HL038N.3EProduct overview / Floor drainsstainless steel plate round d 112mm
HL038N.4EProduct overview / Floor drainsgrate frame round d 110mm/93mm/stainless steel frame d 133mm incl. O-ring
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL0510.12EProduct overview / Floor drainsSiphon "Primus blue" for drains HL310Prblue , HL510Prblue
used with
HL310PrblueRProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size plastic extension 20 - 75 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.
HL510PrblueRProduct overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with flange, with Primus Blue, cut-to-size plastic extension 20 - 78 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.
technical data
| material | PP |
| dimension | d 110 mm |
| capacity |
| weight | 0,494 [kg] |
| EAN | 9003076051984 |
| installation height | 93 mm |
| grate frame | d 131 mm |
| grate | Edelstahl rund d 112 mm |
| load class | K - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,5 [kg] |
| EAN/pack. | 9003076051984 |
| height/width/depth | 100/150/150 [mm] |
| volume | 0,002250000 [m3] |
