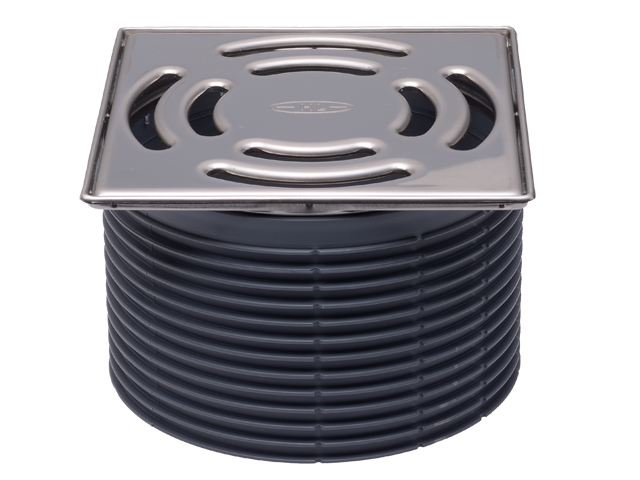

Grating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, siphon PRIMUS
Grating d 146 mm/stainless steel frame 145x145 mm/ stainless steel grate 138x138 mm Klick-Klack fixing system, siphon PRIMUS, lot cover for top; hight over all 100mm

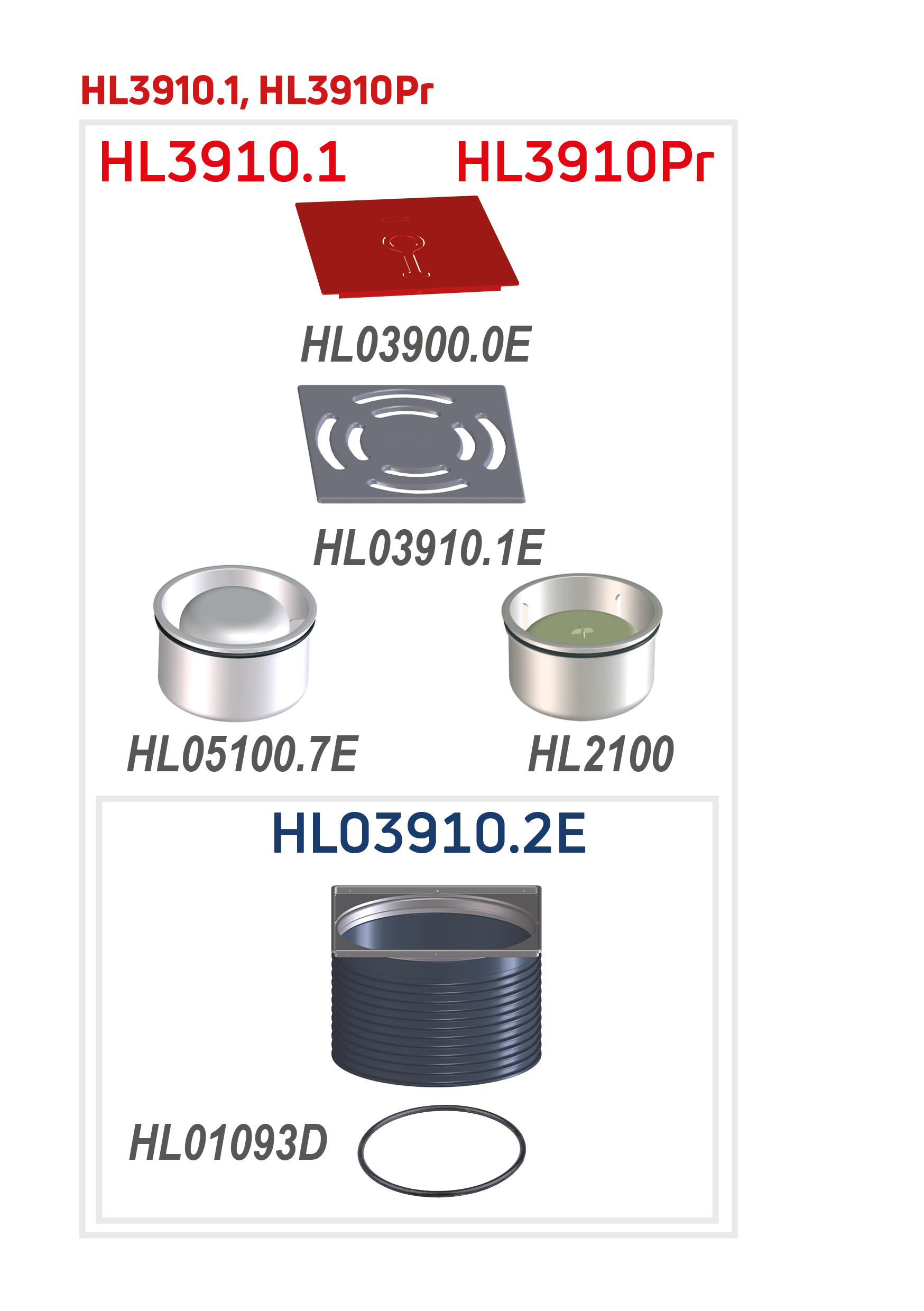

spare parts
HL03910.1EProduct overview / Floor drains / attachmentsGrate stainless steel 138x138mm
HL03910.2EProduct overview / Floor drainsGrating d 146mm / stainless steel frame 145x145mm incl. O-ring, system Klick-Klack
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03900.0EProduct overview / Floor drainsLot cover 145x145 mm
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
HL01093DProduct overview / Floor drainsO-ring 125x4
attachment
extensions
HL3400Product overview / Sealing kits / Extensions / extensionsElongation element d 146 mm/ 200 mm incl. O-ring
HL8500Product overview / Sealing kits / Extensions / extensionsElongation element 200 mm/ d 146 mm with flange and O-ring
used with
technical data
| material |
| dimension |
| capacity |
| weight | 0,637 [kg] |
| EAN | 9003076025558 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,655 [kg] |
| EAN/pack. | 9003076025558 |
| height/width/depth | 120/150/150 [mm] |
| volume | 0,002700000 [m3] |
