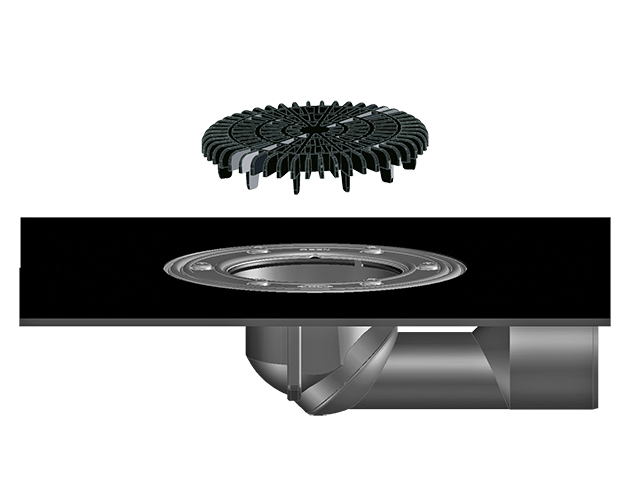

floor/balcony and terrace drain body DN50/75 with ball-joint outlet (for horizontal and vertical use) and bitumen membrane d 420 mm for perfect and easy lap-joint waterproofing with bituminous membranes. Comes with lot cover.
| material | PP/PE |
| dimension | DN50/75 |
| capacity | 1 l/s |
| weight | 1,034 [kg] |
| EAN | 9003076002108 |
| installation height | 91 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
| unit | 1 [pcs.] |
| weight | 1,3 [kg] |
| EAN/pack. | 9003076002108 |
| height/width/depth | 145/260/435 [mm] |
| volume | 0,016399500 [m3] |
