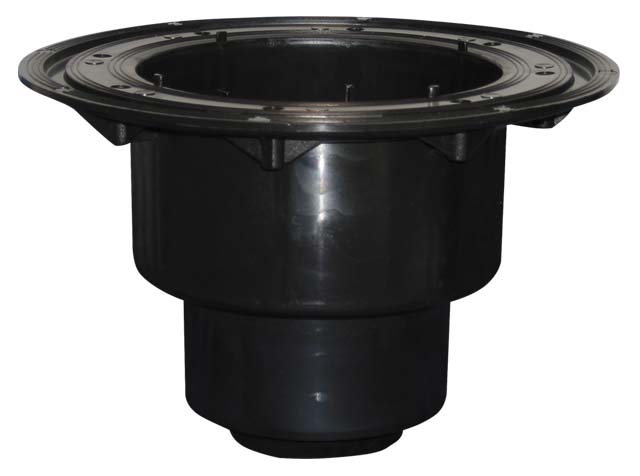

Floor drain body DN50/75/110 vertical
Floor drain body DN50/75/110 vertical with flange; including lot cover
attachment
HL3910Product overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack
HL05100.7EProduct overview / Floor drainsNormal siphon complete
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
HL3910.1Product overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, with siphon
HL03910.3EProduct overview / Floor drainsGrate stainless steel 138x138 mm
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
HL3910PrProduct overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, siphon PRIMUS
HL05100.7EProduct overview / Floor drainsNormal siphon complete
extensions
HL3400Product overview / Sealing kits / Extensions / extensionsElongation element d 146 mm/ 200 mm incl. O-ring
HL8500Product overview / Sealing kits / Extensions / extensionsElongation element 200 mm/ d 146 mm with flange and O-ring
Waterproofing Kits
HL8300Product overview / Sealing kits / Extensions / waterproofing kitsSealing set with EPDM-collar 500x500 mm
HL8300.0Product overview / Sealing kits / Extensions / waterproofing kitsSealing set with clamp ring stainless steel
HL8300.HProduct overview / Sealing kits / Extensions / waterproofing kitsSealing set with bitumen collar 500x500 mm
HL8300.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece
used with
technical data
| material | PE |
| dimension | DN50/75/110 |
| capacity |
| weight | 0,45 [kg] |
| EAN | 9003076025510 |
| installation height | 162mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 0,777 [kg] |
| EAN/pack. | 9003076025510 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
single use pallet
| unit | 72 [pcs.] |
| weight | 66 [kg] |
| EAN/pack. |
| height/width/depth | 1950/800/1200 [mm] |
| volume | 1,872000000 [m3] |
