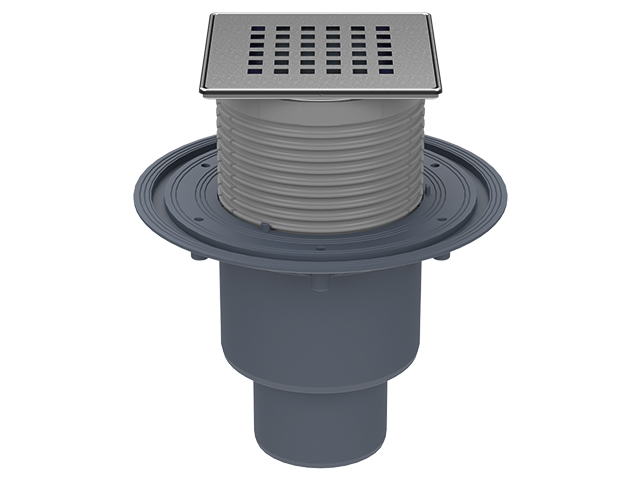

                floor drain DN50/75/110 vertical with flange, trap seal, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Quadra" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK" - the new arresting system for grates. Loose or lost grates belong to the past. Simply insert the grate into the frame and "click" it in - ready!
| material | PE. Edelstahl V2A |
| dimension | DN50/75/110 |
| capacity | < 0,5 l/s |
| weight | 1,02  [kg]  |
| EAN | 9003076016341 |
| installation height | 158 mm |
| grate frame | 10-80 mm/121x121 mm V2A |
| grate | 115x115 mm Edelstahl V2A |
| load class | L - 1,5 t |
| inlet |
| standards | EN1253 |
| unit | 1  [pcs.]  |
| weight | 1,21  [kg]  |
| EAN/pack. | 9003076016341 |
| height/width/depth | 155/225/295  [mm]  |
| volume | 0,010288125  [m3]  |
