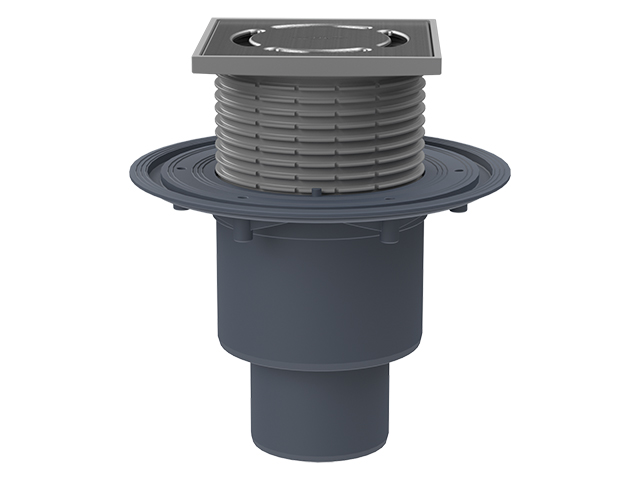

HL310N

floor drain DN50/75/110 vertical 123x123mm/115x115mm

HL310N

floor drain DN50/75/110 vertical with flange, trap seal, cut-to-size grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.

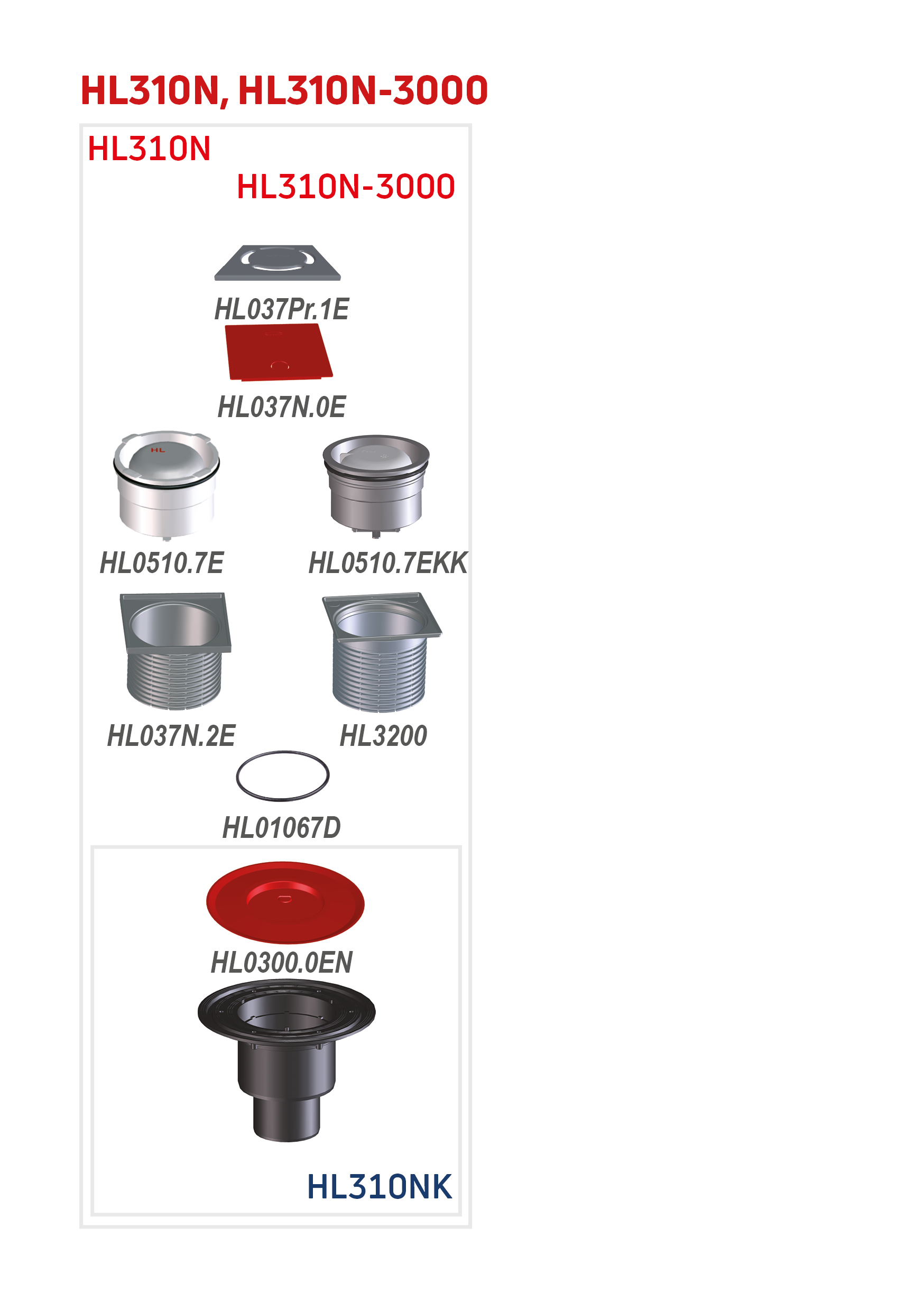

spare parts

HL310NKProduct overview / Floor drains / vertical / flangefloor drain body DN50/75/110 vertical HL37N.1Product overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm with trap seal. Comes with lot cover HL037N.2EProduct overview / Floor drainsgrate frame d 110mm/90mm/123x123mm incl. O-ring HL01067DProduct overview / Floor drainsO-ring 92x4mm HL037N.0EProduct overview / Floor drainssupporting frame/cover 123x123mm HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm HL0510.7EProduct overview / Floor drainstrap seal cartridge HL01067DProduct overview / Floor drainsO-ring 92x4mm HL0510.8EProduct overview / Floor drainsbell trap

attachment

HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL3120Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Quadra" HL3121Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Seine" HL3122Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Loire" HL3123Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Orinoko" HL3124Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Nil" HL3125Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Yukon" HL3127Product overview / Floor drains / attachmentsStainless steel grate (V4A) 115x115mm 'Primus Design' HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL82Product overview / Balcony and terrace / attachmentsheating kit 18W/230V HL840Product overview / Attachmentsfire collar R90 for HL310N series HL845Product overview / Attachmentsformwork-core with center-ring for HL840

Alternatives

HL310NGProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 150x150mm/137x137mm cast iron HL310NPrProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 123x123mm/115x115mm HL310NPrGProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS,150x150mm/137x137mm cast iron HL310NPrRProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, round d 133mm/d 112mm HL310NRProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical round d 133mm/d 112mm HL80.1Product overview / Floor drains / vertical / flangefloor drain DN50/75 ball-joint with trap seal, 123x123mm/115x115mm

extensions

HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane

Waterproofing Kits

HL83Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar 400x400mm HL83.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit HL83.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 400mm HL83.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece HL83.PProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with flange PVC d 287mm

technical data

material

PE, Edelstahl

dimension

DN50/75/110

capacity

0,67 l/s

weight

0,724

[kg]

EAN	9003076004638

installation height

158 mm

grate frame

12-70 mm/123x123 mm

grate

Edelstahl 115x115 mm

load class

K3 - 300 kg

inlet

standards

EN1253

carton

unit

1

[pcs.]

weight

0,912

[kg]

EAN/pack.

9003076004638

height/width/depth

155/225/295

[mm]

volume

0,010288125

[m³]

single use pallet

unit	143 [pcs.]

weight

140,5

[kg]

EAN/pack.

height/width/depth

1950/800/1200

[mm]

volume

1,872000000

[m³]
