product link (product category - independent)

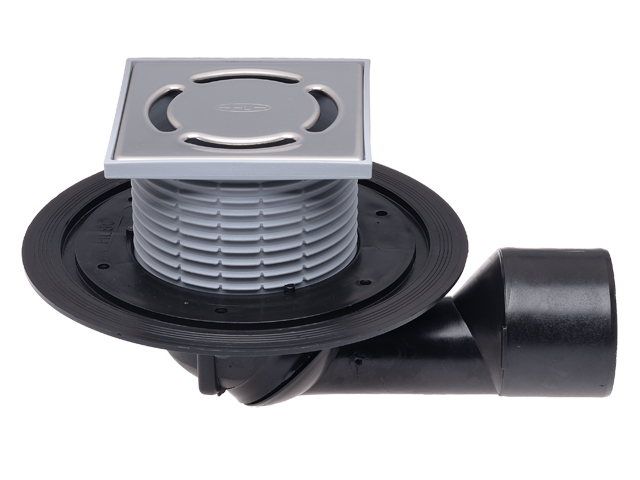

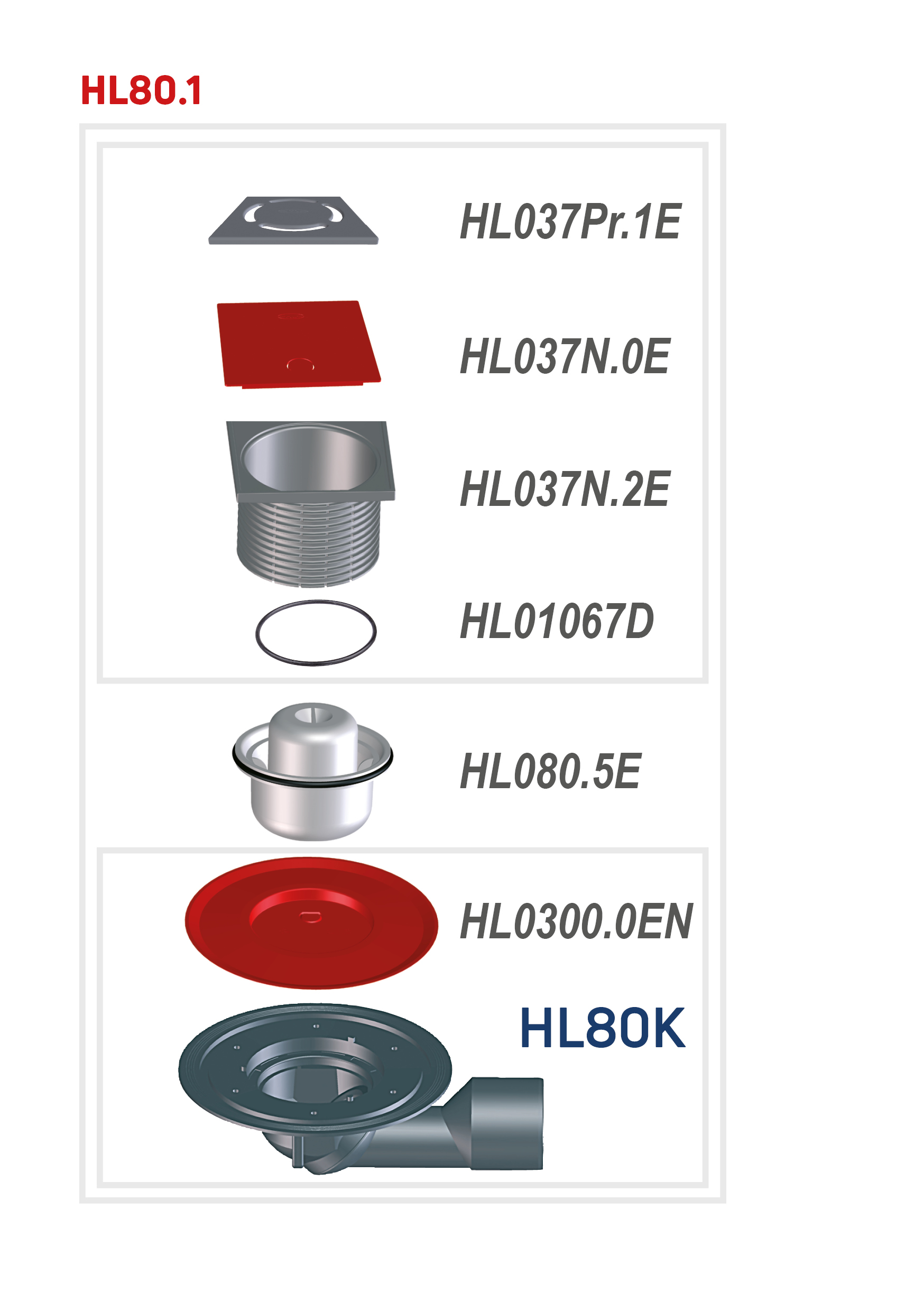

floor drain DN50/75 with ball-joint outlet (for horizontal and vertical use), flange, trap seal, cut-to-size plastic grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.
material | PP/PE |
dimension | DN50/75 |
capacity | 0,5 l/sec |
weight | 0,556 [kg] |
EAN | 9003076700813 |
installation height | 103 mm |
grate frame | 12-71mm/123x123mm |
grate | Edelstahl 115x115mm |
load class | K - 300 kg |
inlet |
standards |
unit | 1 [pcs.] |
weight | 0,745 [kg] |
EAN/pack. | 9003076700813 |
height/width/depth | 155/225/295 [mm] |
volume | 0,010288125 [m3] |
unit | 143 [pcs.] |
weight | 117 [kg] |
EAN/pack. | 9003076108015 |
height/width/depth | 1900/800/1200 [mm] |
volume | 1,824000000 [m3] |
