HL80K

floor/balcony and terrace drain body DN50/75 ball-joint

HL80K

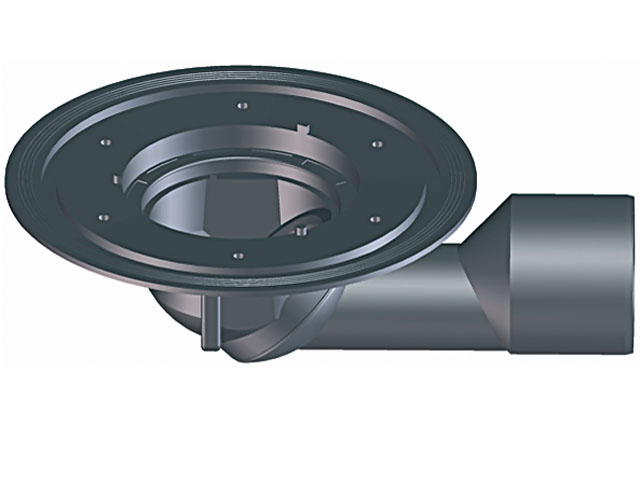

floor/balcony and terrace drain body DN50/75 with ball-joint outlet (for horizontal and vertical use). Comes with lot cover.

attachment

HL080.2ENWEProduct overview / Floor drainsgrate frame d 110mm/92mm/100x100mm incl. O-ring HL0301.11EProduct overview / Floor drainssolid brass grate gold plated 94x94mm HL0301.3EProduct overview / Floor drainspolished solid brass grate 94x94mm HL0301.4EProduct overview / Floor drainsstainless steel grate white 94x94mm HL080.1EProduct overview / Floor drainsstainless steel grate 94x94mm HL080.1SEProduct overview / Balcony and terracestainless steel grate (316) 94x94mm HL080.4EProduct overview / Balcony and terraceflap cartridge HL080.5EProduct overview / Floor drainstrap cartridge HL180Product overview / Balcony and terrace / attachmentsgravel guard d 110mm HL181Product overview / Balcony and terrace / attachmentsFlat leaf catcher for balcony or terrasse drains of series HL80, HL90 and HL310NK, HL510NK HL3000Product overview / Floor drains / attachmentsgrating d 110mm/stainless steel frame 121x121mm/115x115mm. System "KLICK-KLACK". Comes with supporting frame/cover. HL0510.7EKKProduct overview / Floor drainstrap seal cartridge HL2000KKProduct overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL36NProduct overview / Floor drains / attachmentsgrating d 110mm/100x100mm/94x94mm HL0301.11EProduct overview / Floor drainssolid brass grate gold plated 94x94mm HL0301.3EProduct overview / Floor drainspolished solid brass grate 94x94mm HL0301.4EProduct overview / Floor drainsstainless steel grate white 94x94mm HL080.1SEProduct overview / Balcony and terracestainless steel grate (316) 94x94mm HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL37NProduct overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm. Comes with lot cover HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL37NPProduct overview / Floor drains / attachmentsgrating d 110mm/PVC-collar 185x185mm/115x115mm HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL38NProduct overview / Floor drains / attachmentsgrating round d 110mm/stainless steel frame d 133mm/d 112mm HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL39Product overview / Floor drains / attachmentsGrating d 110mm/147x147mm/140x140mm HL0300.1SEProduct overview / Floor drainsstainless steel grate (316) 140x140mm HL0300.3EProduct overview / Floor drainspolished solid brass grate 140x140mm HL0300.4EProduct overview / Floor drainsstainless steel grate white 140x140mm HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL39GProduct overview / Floor drains / attachmentsgrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL82Product overview / Balcony and terrace / attachmentsheating kit 18W/230V

Alternatives

HL80CKProduct overview / Floor drains / vertical / CeraDrainfloor/balcony and terrace drain body DN50/75 CeraDrain ball-joint with polymer concrete collar HL80HKProduct overview / Floor drains / vertical / bitumen membranefloor/balcony and terrace drain body DN50/75 ball-joint with bitumen membrane

extensions

HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane

Waterproofing Kits

HL83Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar 400x400mm HL83.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit HL83.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 400mm HL83.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece HL83.PProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with flange PVC d 287mm

used with

HL80Product overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75 ball-joint with frost-proof flap seal, 123x123mm/115x115mm HL80.1Product overview / Floor drains / vertical / flangefloor drain DN50/75 ball-joint with trap seal, 123x123mm/115x115mm HL80.1RProduct overview / Floor drains / vertical / flangefloor drain DN50/75 ball-joint with trap seal, round d 133mm/d 112mm HL80RProduct overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75 ball-joint with frost-proof flap seal, round d 133mm/d 112mm HL81.1GProduct overview / Floor drains / vertical / flangefloor drain DN50/75 ball-joint with trap seal, 150x150mm/137x137mm cast iron HL81GProduct overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75 ball-joint with frost-proof flap seal, 150x150mm/137x137mm cast iron

technical data

material

PP/PE

dimension

DN50/75

capacity

weight

0,313

[kg]

EAN	9003076004126

installation height

91 mm

grate frame

grate

load class

inlet

standards

carton

unit

1

[pcs.]

weight

0,5

[kg]

EAN/pack.

9003076004126

height/width/depth

155/225/295

[mm]

volume

0,010288125

[m³]

single use pallet

unit	143 [pcs.]

weight

82

[kg]

EAN/pack.

height/width/depth

1900/800/1200

[mm]

volume

1,824000000

[m³]

downloads

Foto Web

640x480/300dpi

Foto Parts List

150x150/72dpi

Techn. drawing

pdf

CAD

dxf
