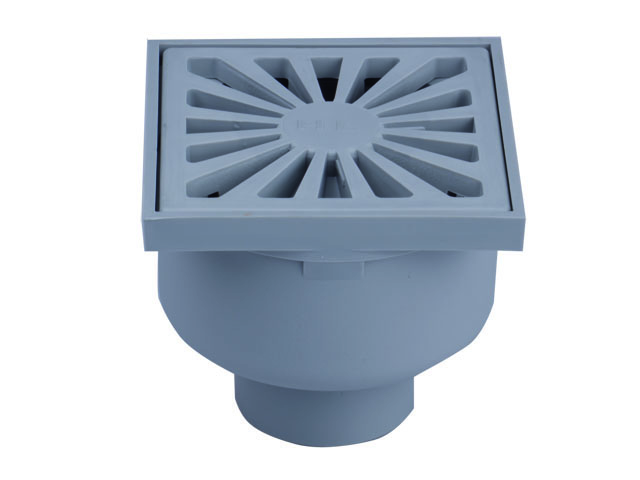

floor drain DN50 vertical 94x94mm plastic
floor drain DN50 vertical with trap seal and plastic grate 94 x 94 mm
technical data
| material | PP |
| dimension | DN50 |
| capacity | 39 l/min |
| weight | 0,155 [kg] |
| EAN | 9003076700936 |
| installation height | 60 mm |
| grate frame |
| grate | Kunststoff 94x94mm |
| load class | H - 150 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,158 [kg] |
| EAN/pack. | 9003076700936 |
| height/width/depth | 100/105/105 [mm] |
| volume | 0,001102500 [m3] |
carton
| unit | 20 [pcs.] |
| weight | 3,58 [kg] |
| EAN/pack. |
| height/width/depth | 200/385/385 [mm] |
| volume | 0,029645000 [m3] |
