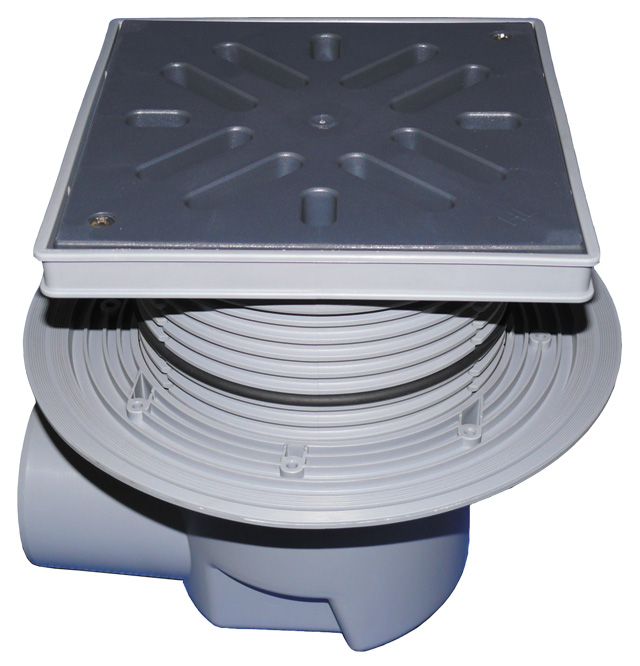

perfect-drain DN110 horizontal with flange, 240x240mm/226x226mm plastic with trap seal
perfect-drain DN110 horizontal with flange, cut-to-size plastic grate frame 42 - 130 mm / 240 x 240 mm, secured plastic grate 226 x 226 mm, strainer and trap seal

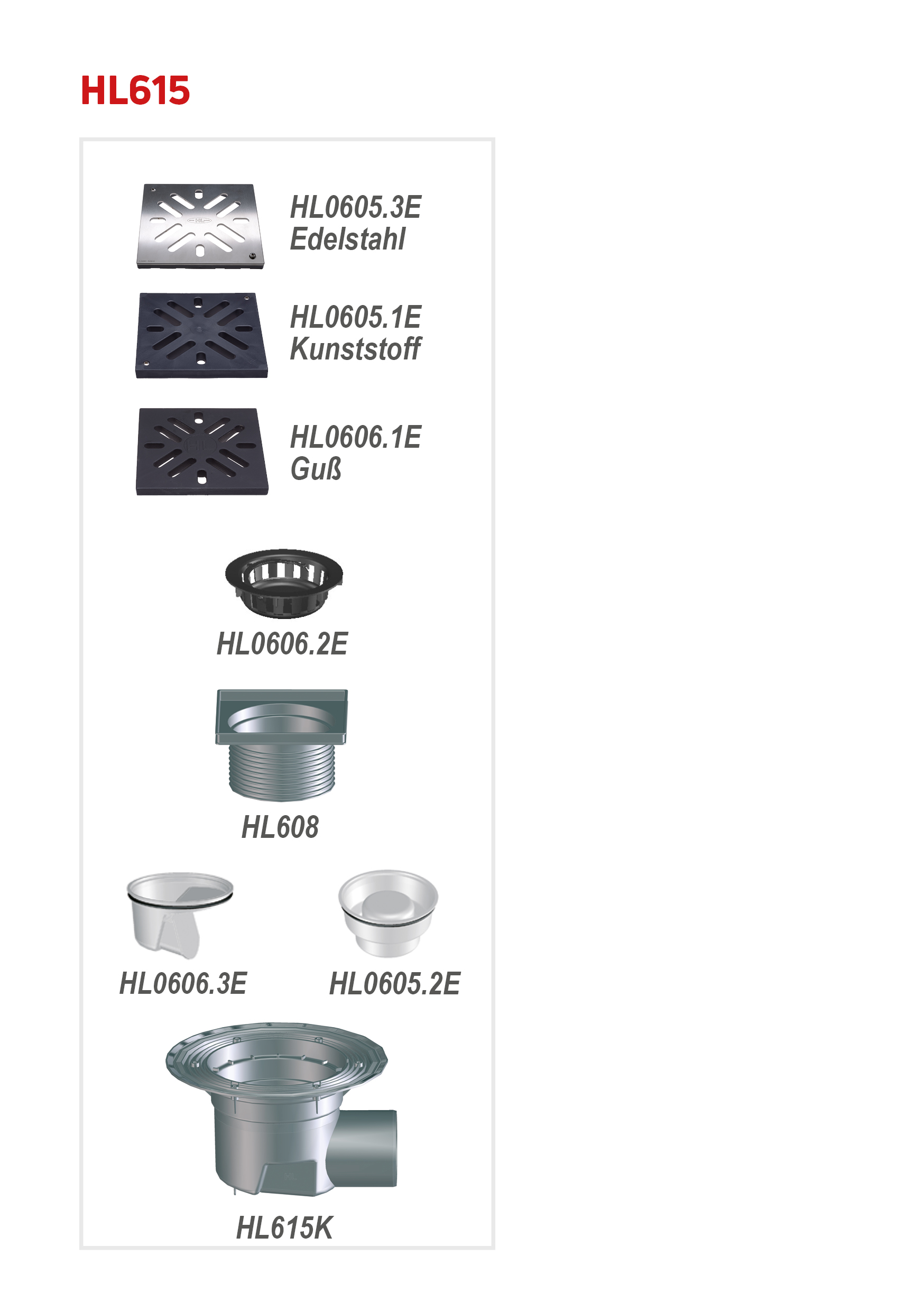

spare parts
HL0605.2E15 Magnum drains/Attachments/Trap inserts/HL0605.2E/HL0605.2Etrap cartridge
HL0606.2E15 Magnum drains/Attachments/Leave/Gravel catcher/HL0606.2E/HL0606.2Estrainer
HL615K15 Magnum drains/Products/horizontal/with flange/HL615/HL615Kperfect-drain body DN110 horizontal with flange
HL62315 Magnum drains/Attachments/Gratings/HL623/HL623grating d 195mm/240x240mm/226x226mm plastic
HL0605.1E15 Magnum drains/Attachments/Cover/HL0605.1E/HL0605.1Eplastic grate 226x226mm
HL0605.5E15 Magnum drains/Attachments/Spare parts/HL0605.5Escrews M6x30mm (2 pcs.)
HL60815 Magnum drains/Attachments/Gratings/HL608/HL608extension 144mm/d 195mm
attachment
HL0606.3E15 Magnum drains/Attachments/Trap inserts/HL0606.3E/HL0606.3Eflap cartridge
HL19015 Magnum drains/Attachments/Drainage elements/HL190/HL190gravel guard d 195mm
HL19115 Magnum drains/Attachments/Leave/Gravel catcher/HL191/HL191Flat leaf catcher for series Perfekt
HL60915 Magnum drains/Attachments/Heating/HL609/HL609heating kit 36W/230V
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL61814 Sealing kits / Extensions/Products/Extensions/HL618/HL618Extension 130mm/d 195mm with flange
HL19515 Magnum drains/Attachments/Leave/Gravel catcher/HL195/HL195domed plastic grate Perfekt-series
HL618H14 Sealing kits / Extensions/Products/Extensions/HL618/HL618Hextension 130mm/d 195mm with bitumen membrane
HL62014 Sealing kits / Extensions/Products/Extensions/HL620/HL620extension 105mm/d 195mm
Alternatives
HL615HLW15 Magnum drains/Products/horizontal/with flange/HL615W/HL615HLWperfect-drain DN110 horizontal with bitumen membrane, 240x240mm/226x226mm plastic with trap seal
HL615L15 Magnum drains/Products/horizontal/with flange/HL615/HL615Lperfect-drain DN110 horizontal with flange, 240x240mm/226x226mm plastic with frost-proof flap seal
technical data
| material | PP |
| dimension | DN110 |
| capacity | 2,5 l/sec |
| weight | 2 [kg] |
| EAN | 9003076009473 |
| installation height | 235 - 310 mm |
| grate frame |
| grate | Kunststoff 226 x 226 mm |
| load class | L15 - 1,5 t |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 2,76 [kg] |
| height/width/depth | 355/386/386 [mm] |
| volume | 0.05289358 [m3] |
single use pallet
| unit | 24 [pcs.] |
| weight | 86,24 [kg] |
| height/width/depth | 1650/800/1200 [mm] |
| volume | 1.584 [m3] |
downloads
HL615L_pr
HL615L_B
HL615L_gr
txt
66.H7 22 Großer Bodenablauf aus Polypropylen (GroßA PP) Modell "Perfekt" zweiteilig mit Dichtflansch (Dichtfl.) Wasser-Geruchsverschluss, Abgang waagrecht (waagr.) DN110, ÖNORM EN 124, Kunststoffrahmen (KstR) Einlaufrost 226x226 mm, Belastungsklasse L15 mit Bauschutz. Im Positionsstichwort ist die Ausführung des Rostes aus Guss, Kunststoff (Kunst.) oder NIRO angegeben.
B. GroßA PP PerfektDichtfl.waagr.DN110 KstR Kunst.L15 (Stk)
Z.B. HL Hutterer & Lechner Großablauf PERFEKT mit Dichtflansch und Kunststoffrahmen, zweiteilig HL615LW oder Gleichwertiges.
