HL703

pan connector DN110 with anti flood flap valve

HL703

pan connector DN110 with anti-flood flap valve

spare parts

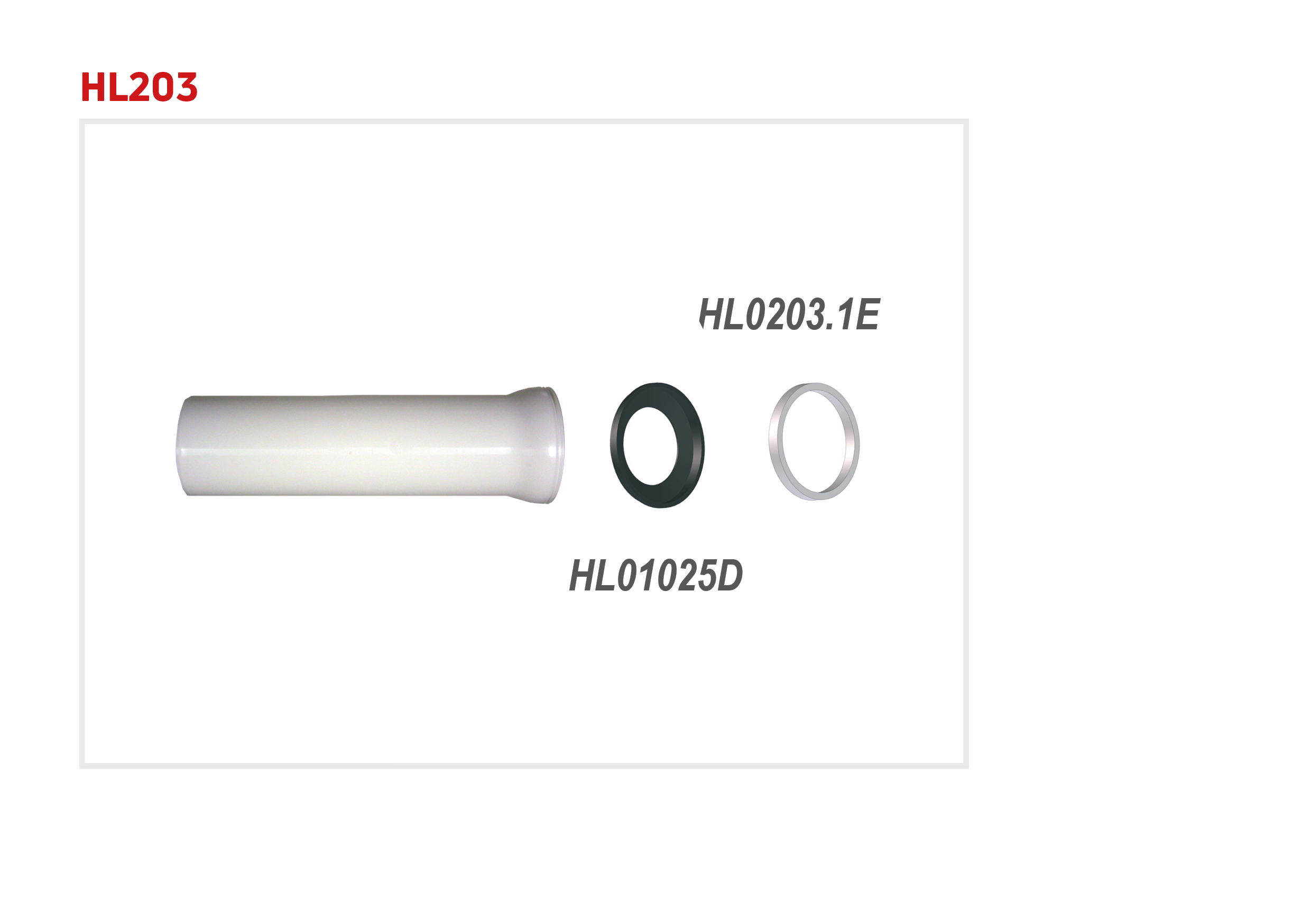

HL01025DProduct overview / Toiletlip seal 124x78mm HL0203.1EProduct overview / Toiletend ring 125x111mm

technical data

material

PP

dimension

DN110

capacity

weight

0,53

[kg]

EAN	9003076507030

installation height

grate frame

grate

load class

inlet

standards

DIN1389

carton

unit

1

[pcs.]

weight

0,7

[kg]

EAN/pack.

9003076507030

height/width/depth

385/280/635

[mm]

volume

0,068453000

[m³]

downloads

Foto Print

max.

Foto Web

640x480/300dpi

Foto Parts List

150x150/72dpi

CAD

dxf
