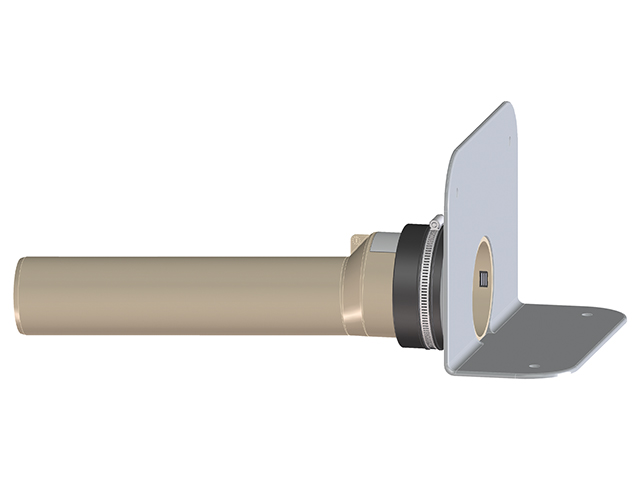

Attica drain with PVC-flange and PP-wastepipe DN75
Attica drain with PVC flange and PP wastepipe DN75; for PVC waterproofings
spare parts
attachment
HL068.1EProduct overview / Balcony and terraceLeaf catcher for attica drains series HL68
HL068.1SafeProduct overview / Balcony and terraceLeaf catcher „emergency drainage“ for attica drains series HL68
HL163Product overview / Balcony and terrace / attachmentsDrain element for attica drains series HL68
HL163.1Product overview / Balcony and terrace / attachmentsGravel guard for attika series HL68
HL163SafeProduct overview / Balcony and terrace / attachmentsDrain element „emergency drainage“ for attica drains series HL68
HL164Product overview / Balcony and terrace / attachmentsInlet element for attica drains series HL68
extensions
HL3000Product overview / Floor drains / attachmentsgrating d 110mm/stainless steel frame 121x121mm/115x115mm. System "KLICK-KLACK". Comes with supporting frame/cover.
HL3020Product overview / Floor drains / attachmentsExtension with tilable frame d 110mm, stainless steel frame 132x132mm / 112x112mm
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL37NProduct overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm. Comes with lot cover
HL39Product overview / Floor drains / attachmentsGrating d 110mm/147x147mm/140x140mm
HL39GProduct overview / Floor drains / attachmentsgrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
technical data
| material | PP, PVC |
| dimension | DN75 |
| capacity | 0,61 l/s |
| weight | 1,176 [kg] |
| EAN | 9003076047604 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 1,5 [kg] |
| EAN/pack. | 9003076047604 |
| height/width/depth | 220/200/500 [mm] |
| volume | 0,022000000 [m3] |
single use pallet
| unit | 72 [pcs.] |
| weight | 108 [kg] |
| EAN/pack. |
| height/width/depth | 1950/800/1200 [mm] |
| volume | 1,872000000 [m3] |
