Catalog

Barriere-free showers

HL541

product link (product category - independent)


Download PDF

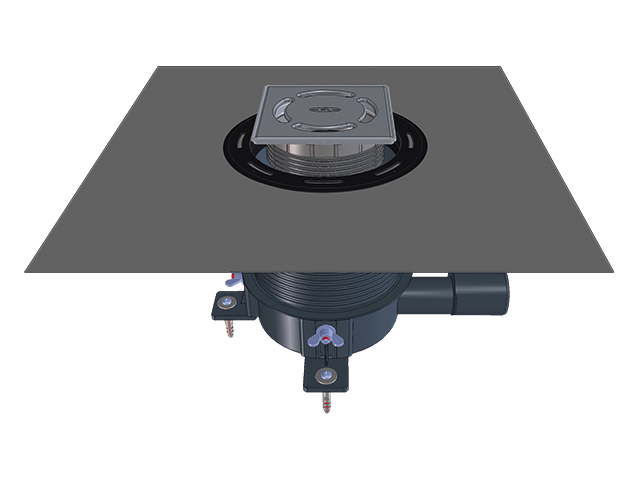

Shower drain "Primus blue", including sealing kit and adjusting angles

HL541

  • main data
  • technical data
  • packaging data
  • downloads

spare parts

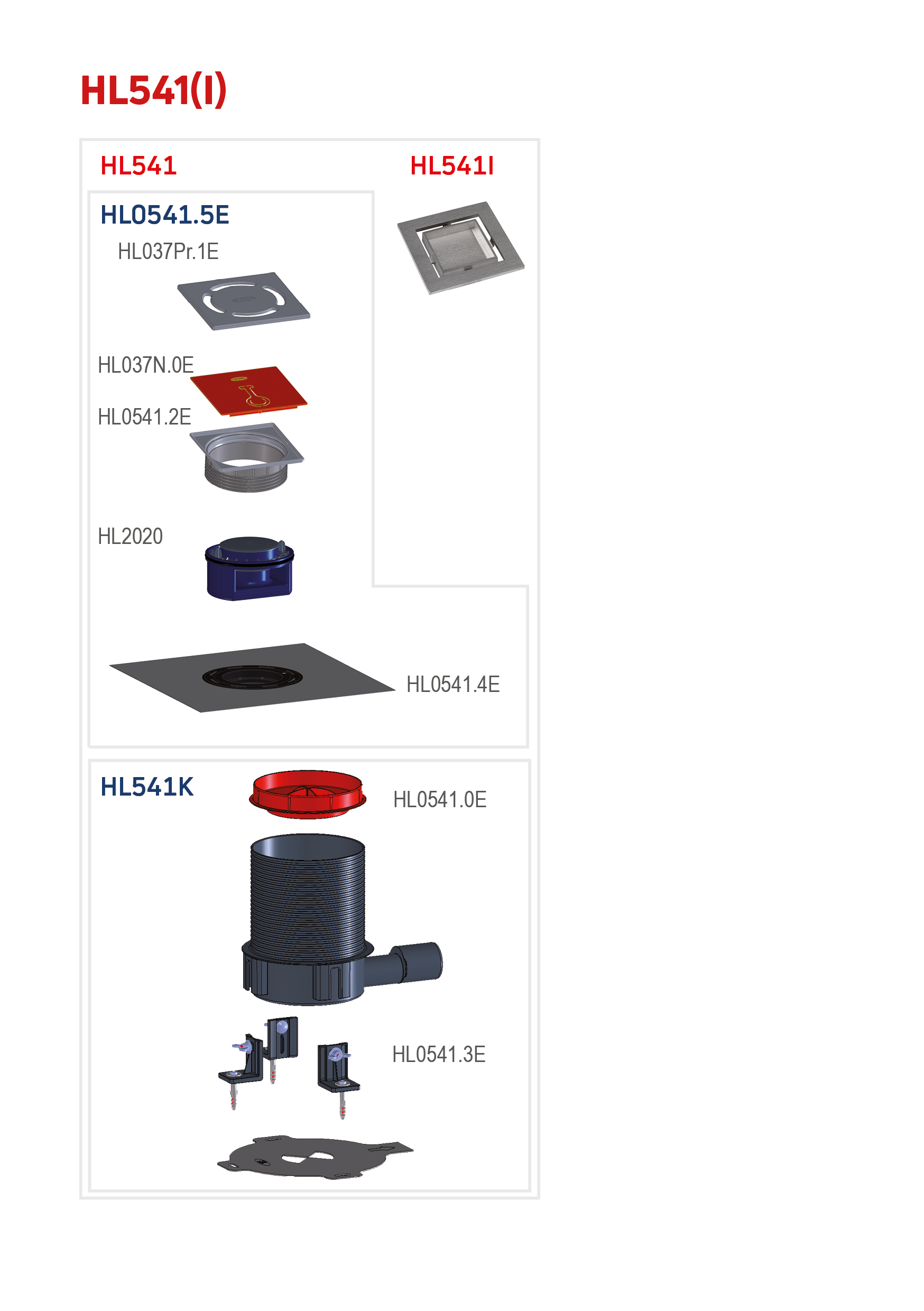

 HL037Pr.1ECatalog / Floor drainsStainless steel grate 115x115mm  HL0541.0ECatalog / Barriere-free showersLot cover HL541  HL0541.2ECatalog / Barriere-free showersExtension with stainless steel frame, system "Klick-Klack"  HL0541.3ECatalog / Barriere-free showersFixing kit, including 3 angles and screws  HL0541.4ECatalog / Barriere-free showersSealing kit including membrane  HL0541.6eCatalog / Barriere-free showersHair stop for HL541  HL2020Catalog / Barriere-free showers"Primus-Blue" trap  HL0541.6eCatalog / Barriere-free showersHair stop for HL541  HL541kCatalog / Barriere-free showersDrain body with 3 fixing angles, including lot cover.  HL0541.0ECatalog / Barriere-free showersLot cover HL541  HL0541.3ECatalog / Barriere-free showersFixing kit, including 3 angles and screws

attachment

 HL0541.5eCatalog / Barriere-free showers / floor drainsSet for completion of shower drain "PRIMUS-BLUE", including stainless steel grate, sealing kit, odour trap, Klick-Klack system and supporting frame  HL0541iCatalog / Barriere-free showers / attachmentsStainless steel grate with tile hollow  HL3120Catalog / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Quadra"  HL3121Catalog / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Seine"  HL3122Catalog / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Loire"  HL3123Catalog / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Orinoko"  HL3124Catalog / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Nil"  HL3125Catalog / Floor drains / attachmentsstainless steel grate (316) 115x115mm "Yukon"  HL3127Catalog / Floor drains / attachmentsStainless steel grate (V4A) 115x115mm 'Primus Design'  HL6200Catalog / Barriere-free showers / attachmentsSound protection pad 500x500mm

Alternatives

 HL541iCatalog / Barriere-free showers / floor drainsShower drain "Primus blue" with tile hollow, including sealing kit and adjusting angles  HL541QCatalog / Barriere-free showers"Primus blue" Shower Drain designed with massive stainless steel grating „Quadra“, including sealing kit and mounting angles

Waterproofing Kits

 HL0541.4ECatalog / Barriere-free showersSealing kit including membrane

technical data

materialPP/Edelstahl
dimensionDN40/50
capacity0,50l/s
weight1,121
[kg]
EAN9003076048205
installation height62-200mm (Estrichoberkante)
grate frameEdelstahl V4A 10-30mm/121x121
grateEdelstahl V2A 115x115mm
load classK3 - 300kg
inlet
standardsEN1253

carton

unit1
[pcs.]
weight1,29
[kg]
EAN/pack.9003076048205
height/width/depth230/200/300
[mm]
volume0,013800000
[m3]

single use pallet

unit128
[pcs.]
weight176
[kg]
EAN/pack.
height/width/depth1850/800/1200
[mm]
volume1,776000000
[m3]

downloads

Foto Print
HL541_pr.tif
max.
Foto Web
640x480/300dpi
Foto Parts List
150x150/72dpi
Techn. drawing
HL541_1_b.pdf
pdf
CAD
HL541_2_b1.dxf
dxf
Instruction sheet
HL540-HL541_Install.pdf
