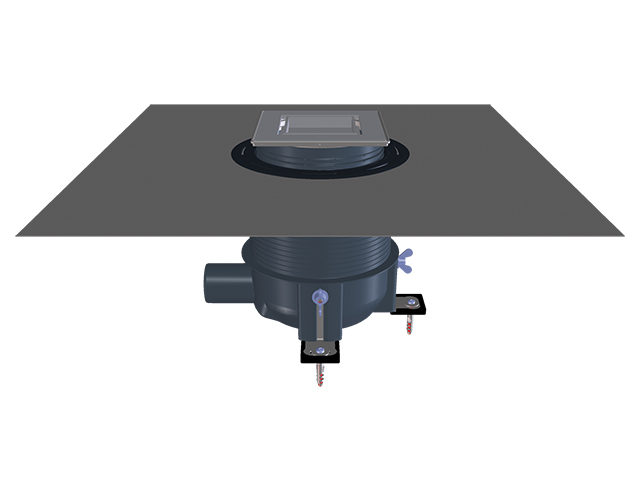

Shower drain "Primus-Drain, with 3 adjusting angles, which are fixed on the raw floor and with which the drain body may be adjusted in height. The drain body is set on the raw floor without knowing the final screed height. After laying the screed, the salient part can be easily cut by a saw. After inserting the sealing kit, the frame may be adjusted to the tile height and the tile hollow is filled with the tile.
material | PP, Edelstahl |
dimension | DN50 |
capacity | 0,60l/s |
weight | 1,898 [kg] |
EAN | 9003076039098 |
installation height | 80-250mm (Estrichoberkante) |
grate frame | Edelstahl V4A 8-30mm/145x145mm |
grate | Edelstahl V4A 138x138mm/74x74 |
load class | K3 - 300kg |
inlet |
standards | EN1253 |
unit | 1 [pcs.] |
weight | 2,205 [kg] |
EAN/pack. | 9003076039098 |
height/width/depth | 240/295/240 [mm] |
volume | 0,016992000 [m3] |
unit | 91 [pcs.] |
weight | 211 [kg] |
EAN/pack. |
height/width/depth | 1850/800/1200 [mm] |
volume | 1,776000000 [m3] |
