Product overviewBarriere-free showers

floor drains

HL540K

product link (product category - independent)


Download PDF

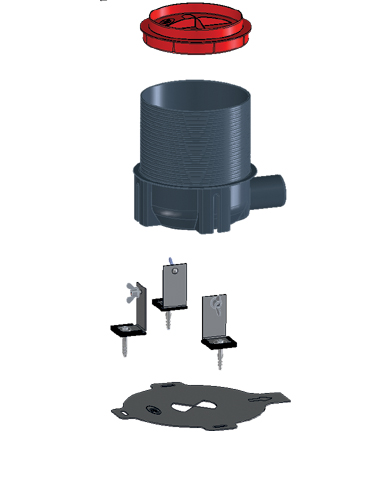

Drain body with 3 fixing angles, including lot cover.

HL540K

  • main data
  • technical data
  • packaging data
  • downloads

spare parts

 HL0540.0EProduct overview / Barriere-free showersLot cover  HL0540.3EProduct overview / Barriere-free showersFixing kit, including 3 angles and screws

attachment

 HL0540.5EProduct overview / Barriere-free showers / floor drainsSet for completion of shower drain "PRIMUS-DRAIN", including stainless steel grate, sealing kit, odour trap, Klick-Klack system and supporting frame

used with

 HL540Product overview / Barriere-free showers / floor drainsShower drain "Primus-Drain", including sealing kit and adjusting angles  HL540-CutProduct overview / Barriere-free showers / floor drains"PRIMUS-DRAIN" Shower Drain designed with massive stainless steel grating „Cut“, including sealing kit and mounting angles  HL540-HamamProduct overview / Barriere-free showers / floor drains"PRIMUS-DRAIN" Shower Drain designed with massive stainless steel grating „Hamam“, including sealing kit and mounting angles  HL540IProduct overview / Barriere-free showers / floor drainsShower drain "Primus-Drain" with tile hollow, including sealing kit and adjusting angles  HL540-QuadraProduct overview / Barriere-free showers / floor drains"PRIMUS-DRAIN" Shower Drain designed with massive stainless steel grating „Quadra“, including sealing kit and mounting angles

technical data

materialPP
dimensionDN50
capacity
weight0,703
[kg]
EAN9003076039067
installation height80-250mm (Estrichoberkante)
grate frame
grate
load class
inlet
standardsEN1253

carton

unit1
[pcs.]
weight1,01
[kg]
EAN/pack.9003076039067
height/width/depth240/295/240
[mm]
volume0,016992000
[m3]

single use pallet

unit91
[pcs.]
weight102
[kg]
EAN/pack.
height/width/depth1850/800/1200
[mm]
volume1,776000000
[m3]

downloads

Foto Print
HL540K_pr.tif
max.
Foto Web
640x480/300dpi
Foto Parts List
150x150/72dpi
Video
YouTube Video

Instruction sheet
HL540-HL541_Install.pdf

Brochure
HL540(I)_Prospekt_EN_web.pdf
