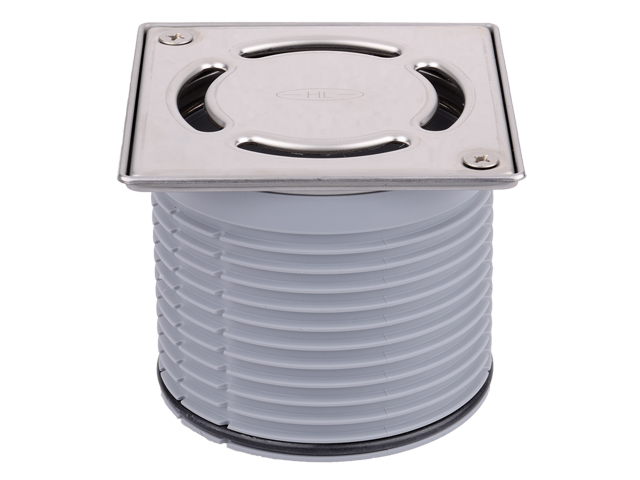

Extension d 110mm, stainless steel frame 121x121mm / stainless steel grate 115x115mm screwable, supporting frame.
Extension d 110 mm with stainless steel frame (V2A) 121 x 121 mm and stainless steel grate 115 x 115 mm, screwable. Length over all 100 mm, frame height 6 mm. Supporting frame included.

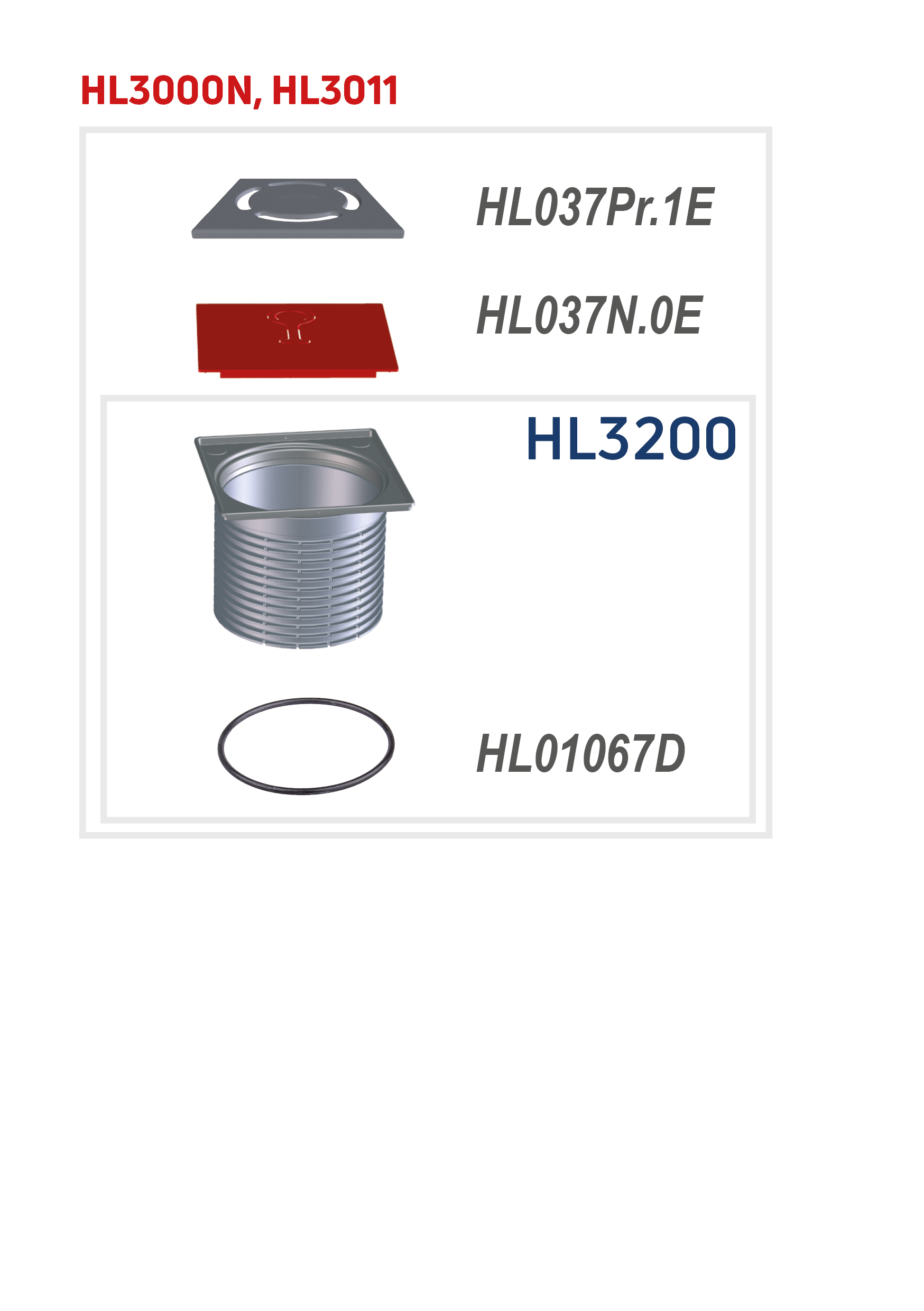

spare parts
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL037N.0EProduct overview / Floor drainssupporting frame/cover 123x123mm
HL037PrS.1EProduct overview / Floor drainsStainless steel grate 115x115mm, screwable
HL03911.3EProduct overview / Floor drainsCountersunk srews M6x8, 2 pieces
attachment
HL03911.4EProduct overview / Floor drains / attachmentsCountersunk safety srews M6x8, 2 pieces
HL0510.7EKKProduct overview / Floor drainstrap seal cartridge
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
Alternatives
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
technical data
| material | PP/Edelstahl V2A |
| dimension | d 110 mm |
| capacity |
| weight | 0,34 [kg] |
| EAN | 9003076032624 |
| installation height | 100 mm |
| grate frame | 121x121mm |
| grate | Edelstahl 115x115mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,355 [kg] |
| EAN/pack. | 9003076032624 |
| height/width/depth | 120/120/180 [mm] |
| volume | 0,002592000 [m3] |
