grating d 110mm/100x100mm/94x94mm

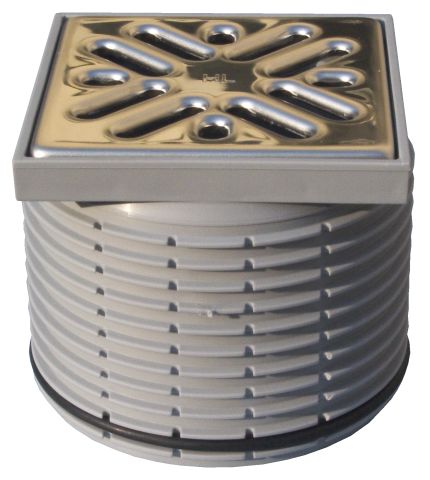

grating d 110 mm / 100 x 100 mm with stainless steel grate 94 x 94 mm. Total height 92 mm, frame height 12 mm
spare parts
HL080.1E13 Floor drains/Attachments/Spare parts/HL080.1Estainless steel grate 94x94mm
HL080.2EN13 Floor drains/Attachments/Spare parts/HL080.2ENgrate frame d 110mm/92mm/100x100mm incl. O-ring
HL01067D13 Floor drains/Attachments/Spare parts/HL01067DO-ring 92x4mm
attachment
HL0301.11E13 Floor drains/Attachments/Spare parts/HL0301.11Esolid brass grate gold plated 94x94mm
HL0301.3E13 Floor drains/Attachments/Spare parts/HL0301.3Epolished solid brass grate 94x94mm
HL0301.4E13 Floor drains/Attachments/Spare parts/HL0301.4Estainless steel grate white 94x94mm
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL340N13 Floor drains/Attachments/Extensions/HL340N/HL340Nextension 80mm/d 110mm incl. O-ring
HL85N12 Balcony and terrace/Attachments/Extensions/HL85N/HL85Nextension with flange incl. O-ring
HL85NH12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NHextension incl. O-ring with bitumen membrane
Alternatives
HL300013 Floor drains/Attachments/Gratings/HL3000/HL3000grating d 110mm/stainless steel frame 121x121mm/115x115mm. System "KLICK-KLACK". Comes with supporting frame/cover.
HL37N13 Floor drains/Attachments/Gratings/HL37/HL37Ngrating d 110mm/123x123mm/115x115mm. Comes with lot cover
HL38N13 Floor drains/Attachments/Gratings/HL38/HL38Ngrating round d 110mm/stainless steel frame d 133mm/d 112mm
HL3913 Floor drains/Attachments/Gratings/HL39/HL39Grating d 110mm/147x147mm/140x140mm
HL39G13 Floor drains/Attachments/Gratings/HL39/HL39Ggrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron
technical data
| material | PP |
| dimension | d 110 mm |
| capacity |
| weight | 0,182 [kg] |
| EAN | 9003076008698 |
| installation height | 92 mm |
| grate frame |
| grate | Edelstahl 94 x 94 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,187 [kg] |
| height/width/depth | 95/110/110 [mm] |
| volume | 0.0011495 [m3] |
downloads
HL36N_pr
HL36N_B
HL36N_gr
txt
66.H5 88 Aufzahlung (Az) auf Balkon- und Terrassenablauf (Balkon-TerrA) für einen Aufsatzrahmen 110x110 mm, Rost aus NIRO 94x94 mm.
A. Az Balkon-TerrA Aufsatzrahmen Rost NIRO 94x94mm (Stk)
HL Hutterer & Lechner Aufsatz HL36N
