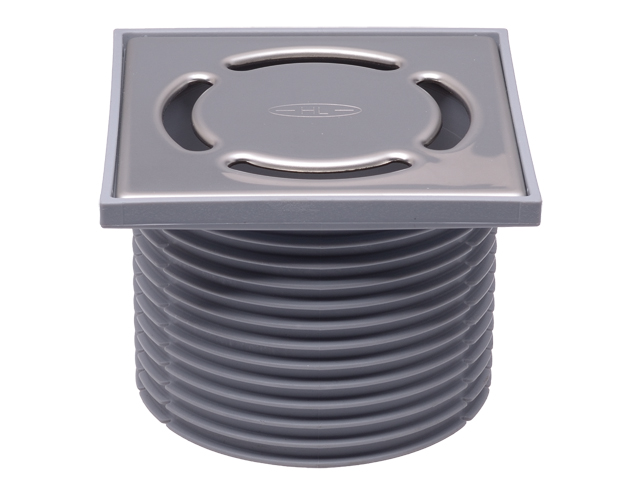

grating d 110mm/123x123mm/115x115mm. Comes with lot cover
grating d 110 mm / 123 x 123 mm with stainless steel grate 115 x 115 mm. Total height 90 mm, frame height 10 mm. Comes with lot cover.

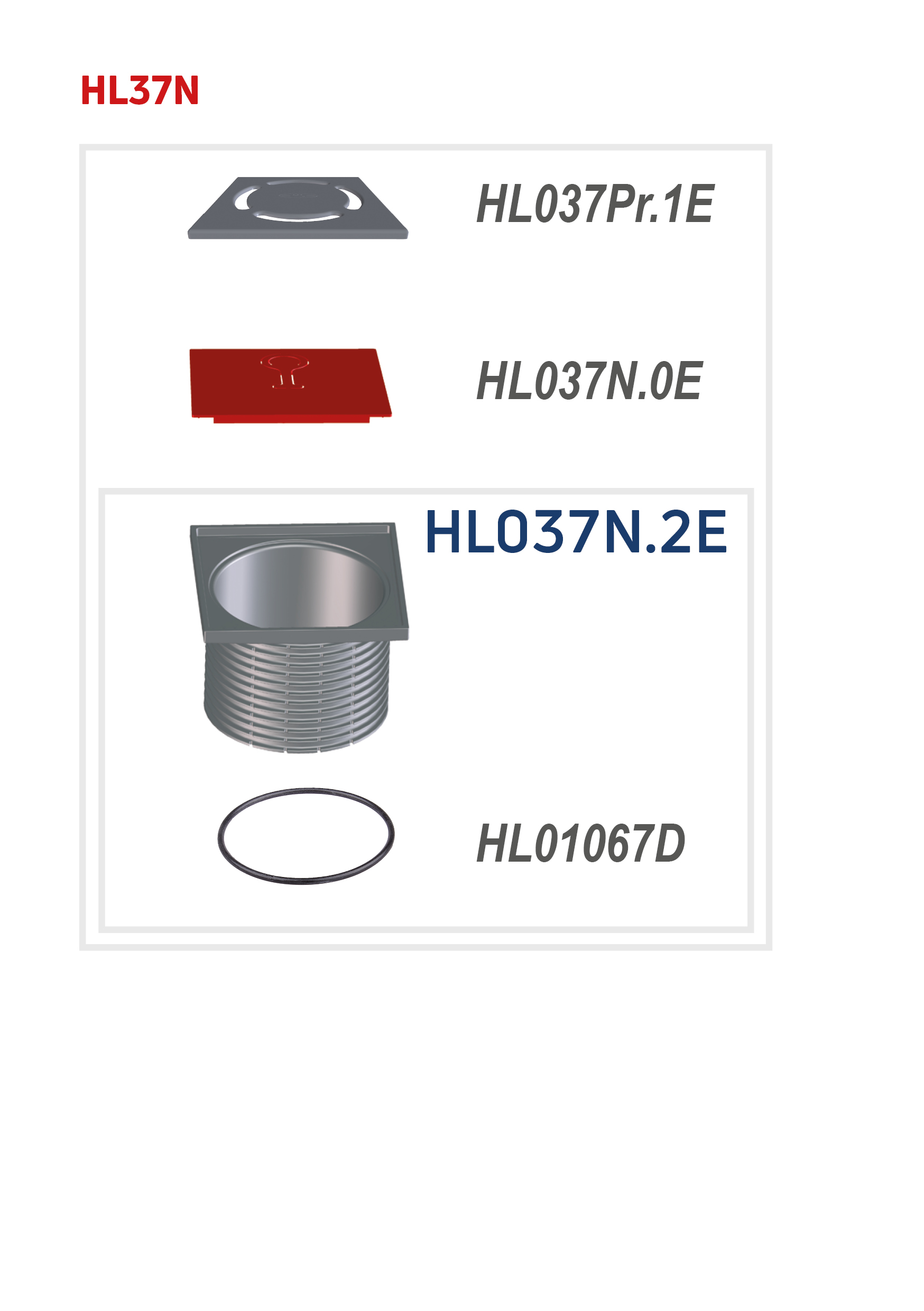

spare parts
HL037N.2E13 Floor drains/Attachments/Spare parts/HL037N.2Egrate frame d 110mm/90mm/123x123mm incl. O-ring
HL01067D13 Floor drains/Attachments/Spare parts/HL01067DO-ring 92x4mm
HL037N.0E13 Floor drains/Attachments/Spare parts/HL037N.0Esupporting frame/cover 123x123mm
HL037Pr.1E13 Floor drains/Attachments/Spare parts/HL037Pr.1EStainless steel grate 115x115mm
attachment
HL0510.7E13 Floor drains/Attachments/Trap insert/HL0510/HL0510.7Etrap seal cartridge
HL090.4E12 Balcony and terrace/Attachments/Trap insert/HL090.4E/HL090.4Eflap cartridge
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL340N13 Floor drains/Attachments/Extensions/HL340N/HL340Nextension 80mm/d 110mm incl. O-ring
HL85N12 Balcony and terrace/Attachments/Extensions/HL85N/HL85Nextension with flange incl. O-ring
HL85NH12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NHextension incl. O-ring with bitumen membrane
Alternatives
HL300013 Floor drains/Attachments/Gratings/HL3000/HL3000grating d 110mm/stainless steel frame 121x121mm/115x115mm. System "KLICK-KLACK". Comes with supporting frame/cover.
HL36N13 Floor drains/Attachments/Gratings/HL36N/HL36Ngrating d 110mm/100x100mm/94x94mm
HL38N13 Floor drains/Attachments/Gratings/HL38/HL38Ngrating round d 110mm/stainless steel frame d 133mm/d 112mm
HL3913 Floor drains/Attachments/Gratings/HL39/HL39Grating d 110mm/147x147mm/140x140mm
HL39G13 Floor drains/Attachments/Gratings/HL39/HL39Ggrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron
technical data
| material | PP |
| dimension | d 110 mm |
| capacity |
| weight | 0,295 [kg] |
| EAN | 9003076015221 |
| installation height | 90 mm |
| grate frame |
| grate | Edelstahl 115 x 115 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,305 [kg] |
| height/width/depth | 125/132/132 [mm] |
| volume | 0.002178 [m3] |
downloads
HL37N_pr
HL37N_B
HL37N_gr
txt
66.H6 71 Aufzahlung (Az) auf Bodenablauf (BodenA) für einen Aufsatz (AS) 110 mm Durchmesser aus PP mit Aufsatzrahmen (AR) 123x123 mm, Rost aus NIRO 115x115 mm, Belastungsklasse K3 mit Baustützrahmen. Im Positionsstichwort ist die Ausführung mit Standard Geruchsverschluss (GV), Modell "Primus" Geruchsverschluss (PrGV) oder Modell "Primus blue" Geruchsverschluss flach (PrGV fl) angegeben
A. Az BodenA AS 110 PP AR Rost NIRO 115x115 K3 (Stk)
HL Hutterer & Lechner Standardaufsatz HL37N
