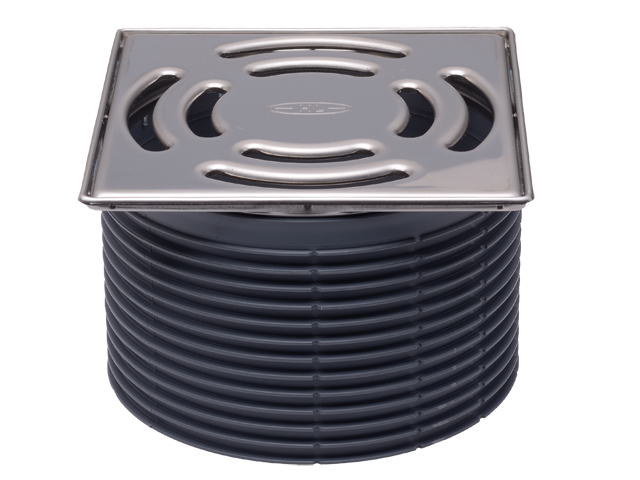

Grating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, with siphon
Grating d 146 mm/ stainless steel frame 145x145 mm/ stainless steel grate 138x138 mm, Klick-Klack fixing system and lot cover for top, hight over all 100mm, with siphon.

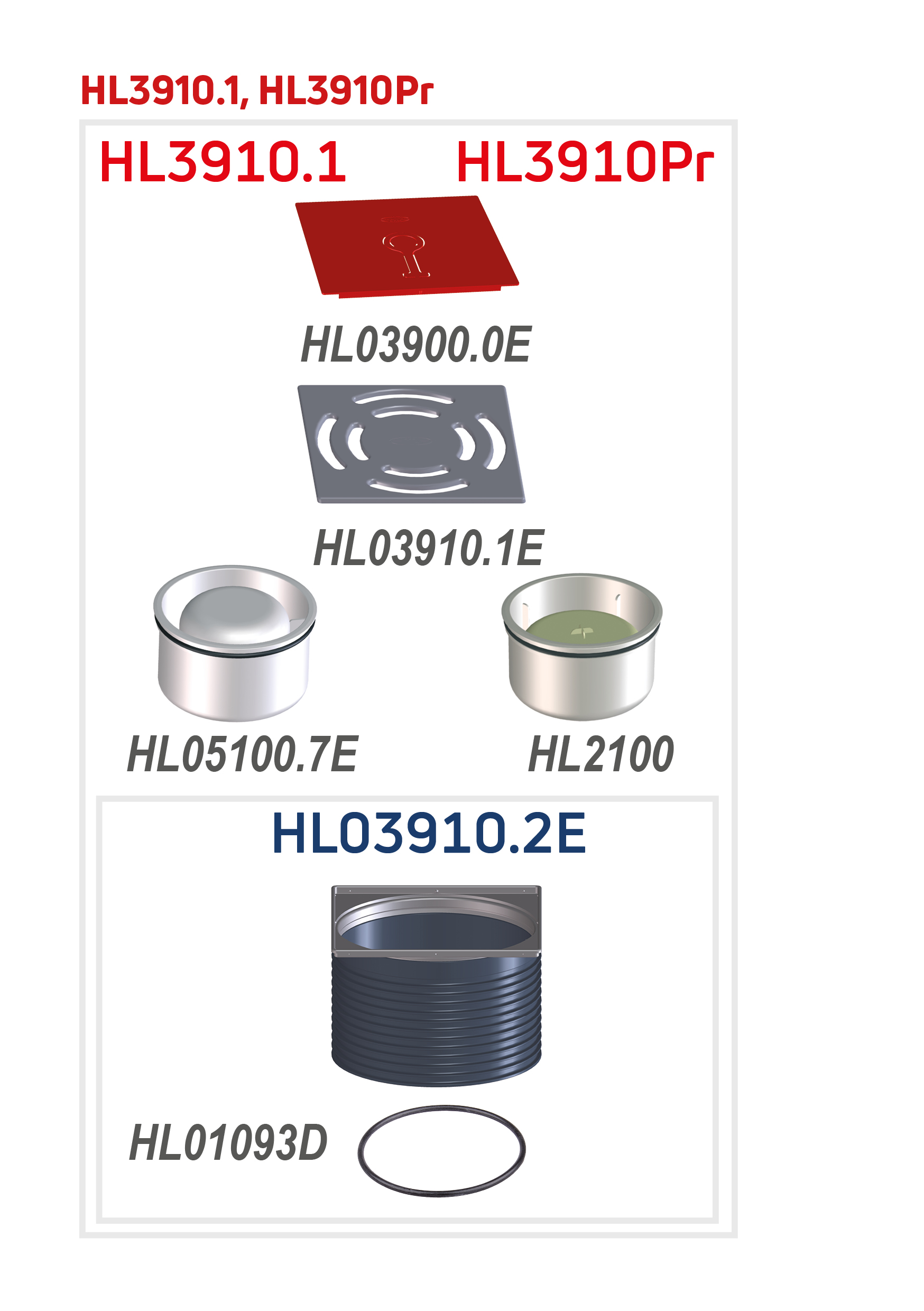

spare parts
HL03910.1E12 Balcony and terrace/Attachments/Cover/HL03910.1E/HL03910.1EGrate stainless steel 138x138mm
HL03910.2E13 Floor drains/Attachments/Spare parts/HL03910.2EGrating d 146mm / stainless steel frame 145x145mm incl. O-ring, system Klick-Klack
HL01093D13 Floor drains/Attachments/Spare parts/HL01093DO-ring 125x4
HL03900.0E13 Floor drains/Attachments/Spare parts/HL03900.0ELot cover 145x145 mm
HL05100.7E13 Floor drains/Attachments/Trap insert/HL05100/HL05100.7ENormal siphon complete
attachment
HL03910.3E13 Floor drains/Attachments/Cover/HL03910/HL03910.3EGrate stainless steel 138x138 mm
HL210008 Toilet/Products/HL210/HL2100Siphon PRIMUS for HL3100Pr and HL5100Pr
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL340012 Balcony and terrace/Attachments/Extensions/HL3400/HL3400Elongation element d 146 mm/ 200 mm incl. O-ring
HL850012 Balcony and terrace/Attachments/Extensions/HL8500/HL8500Elongation element 200 mm/ d 146 mm with flange and O-ring
technical data
| material |
| dimension |
| capacity |
| weight | 0,623 [kg] |
| EAN | 9003076025541 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,64 [kg] |
| height/width/depth | 120/150/150 [mm] |
| volume | 0.0027 [m3] |
downloads
HL3910x1_pr
HL3910x1_B
HL3910x1_gr
txt
66.H6 77 Aufzahlung (Az) auf Bodenablauf (BodenA) für einen Aufsatz (AS) 146 mm Durchmesser aus PP mit Aufsatzrahmen (AR) 145x145 mm, Rost aus NIRO 138x138 mm, Belastungsklasse K3 mit Baustützrahmen. Im Positionsstichwort ist die Ausführung mit Standard Geruchsverschluss (GV), oder Modell "Primus" Geruchsverschluss (PrGV) angegeben
B. Az BodenA AS 146 PP AR 145x145 Rost NIRO 138x138 K3 GV (Stk)
HL Hutterer & Lechner Aufsatz zu Serie 60 Plus mit Geruchsverschlusse HL3910.1
