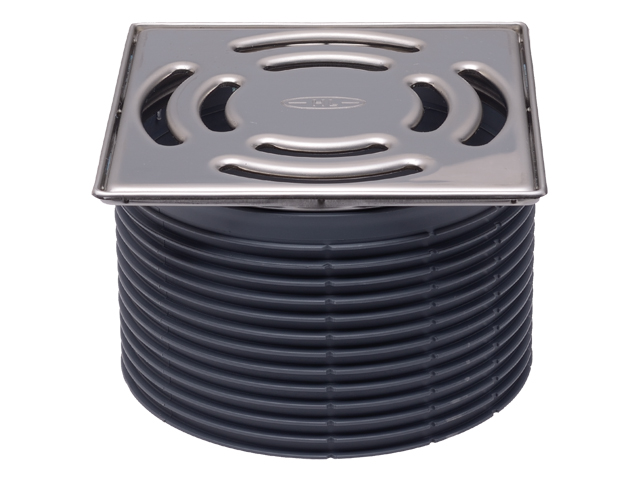

Grating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack
Grating d 146 mm/ stainless steel frame 145x145 mm/ stainless steel grate 138x138 mm, Klick-Klack fixing system and lot cover for top.

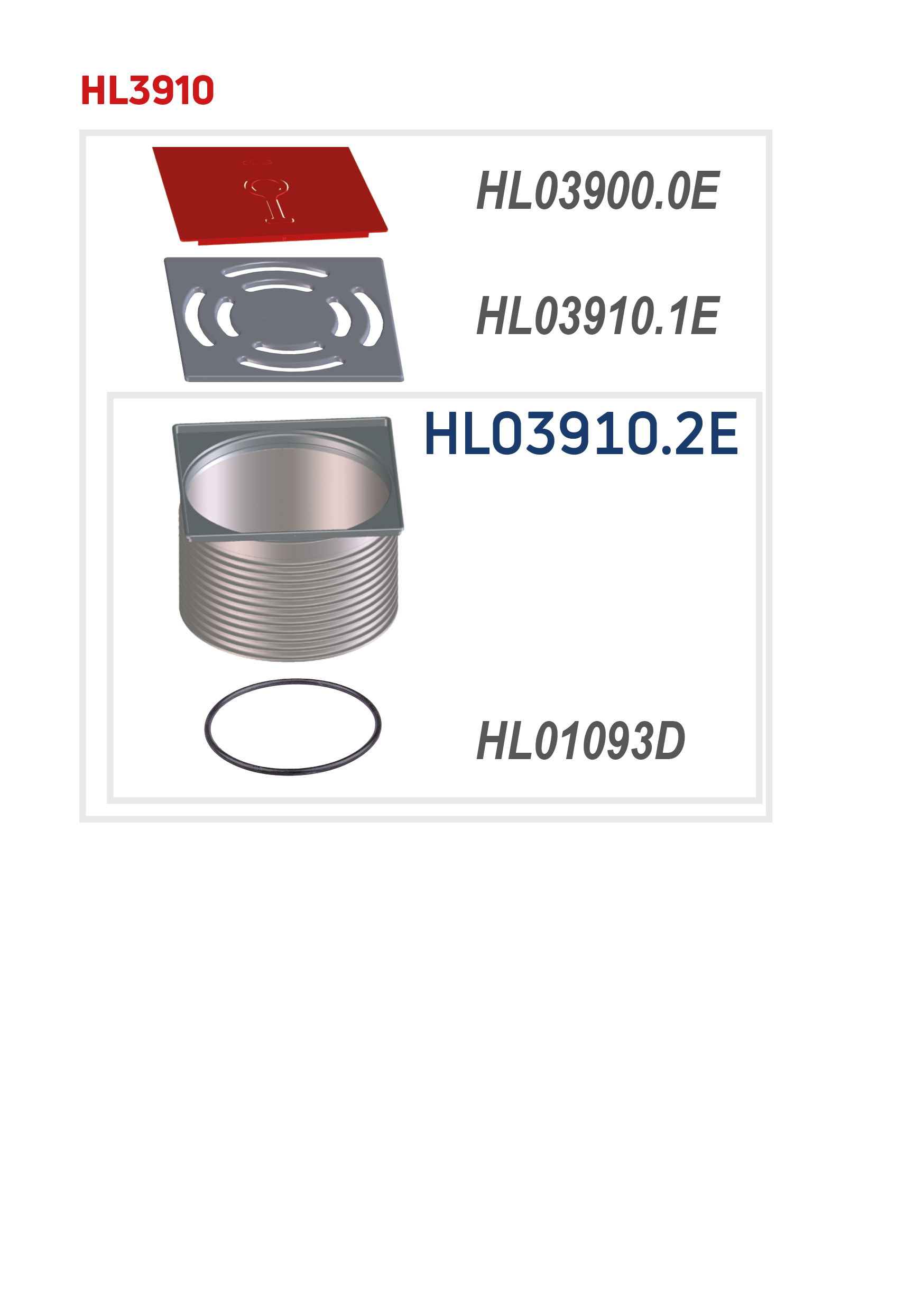

spare parts
HL03910.1EProduct overview / Floor drains / attachmentsGrate stainless steel 138x138mm
HL03910.2EProduct overview / Floor drainsGrating d 146mm / stainless steel frame 145x145mm incl. O-ring, system Klick-Klack
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03900.0EProduct overview / Floor drainsLot cover 145x145 mm
attachment
HL05100.7EProduct overview / Floor drainsNormal siphon complete
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
extensions
HL3400Product overview / Sealing kits / Extensions / extensionsElongation element d 146 mm/ 200 mm incl. O-ring
HL8500Product overview / Sealing kits / Extensions / extensionsElongation element 200 mm/ d 146 mm with flange and O-ring
used with
HL3100TProduct overview / Balcony and terrace / vertical / flangeBalcony and terrace drain DN75/110 vertical with frost-proof stench flap, 145x145mm / 138x138mm
HL3100THProduct overview / Balcony and terrace / vertical / flangeBalcony and terrace drain DN75/110 vertical with bitumen flange, frost-proof stench flap, 145x145mm / 138x138mm
HL5100TProduct overview / Balcony and terrace / horizontal / flangeBalcony and terrace drain DN75 horizontal with frost-proof stench flap, 145x145mm / 138x138mm
HL5100THProduct overview / Balcony and terrace / horizontal / flangeBalcony and terrace drain DN75 horizontal with bitumen flange, frost-proof stench flap, 145x145mm / 138x138mm
technical data
| material |
| dimension |
| capacity |
| weight | 0,467 [kg] |
| EAN | 9003076025534 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,477 [kg] |
| EAN/pack. | 9003076025534 |
| height/width/depth | 120/150/150 [mm] |
| volume | 0,002700000 [m3] |
