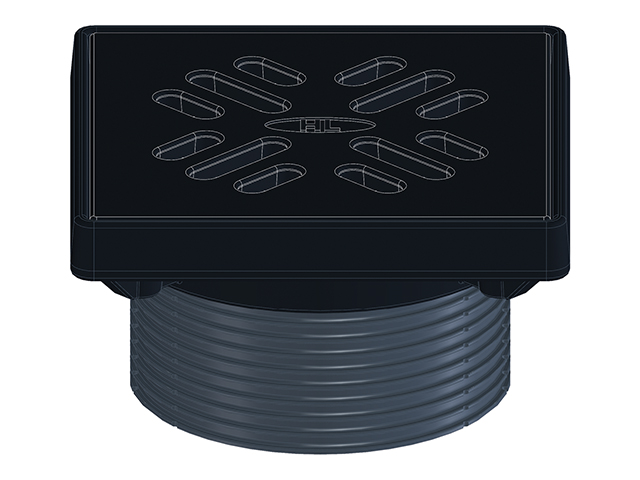

Grating d 146mm, cast iron frame 190x190mm, cast iron grate
175x175mm
Grating d 146mm, cast iron frame 190x190mm, cast iron grate
175x175mm, hight overall 105mm, frame size 44mm

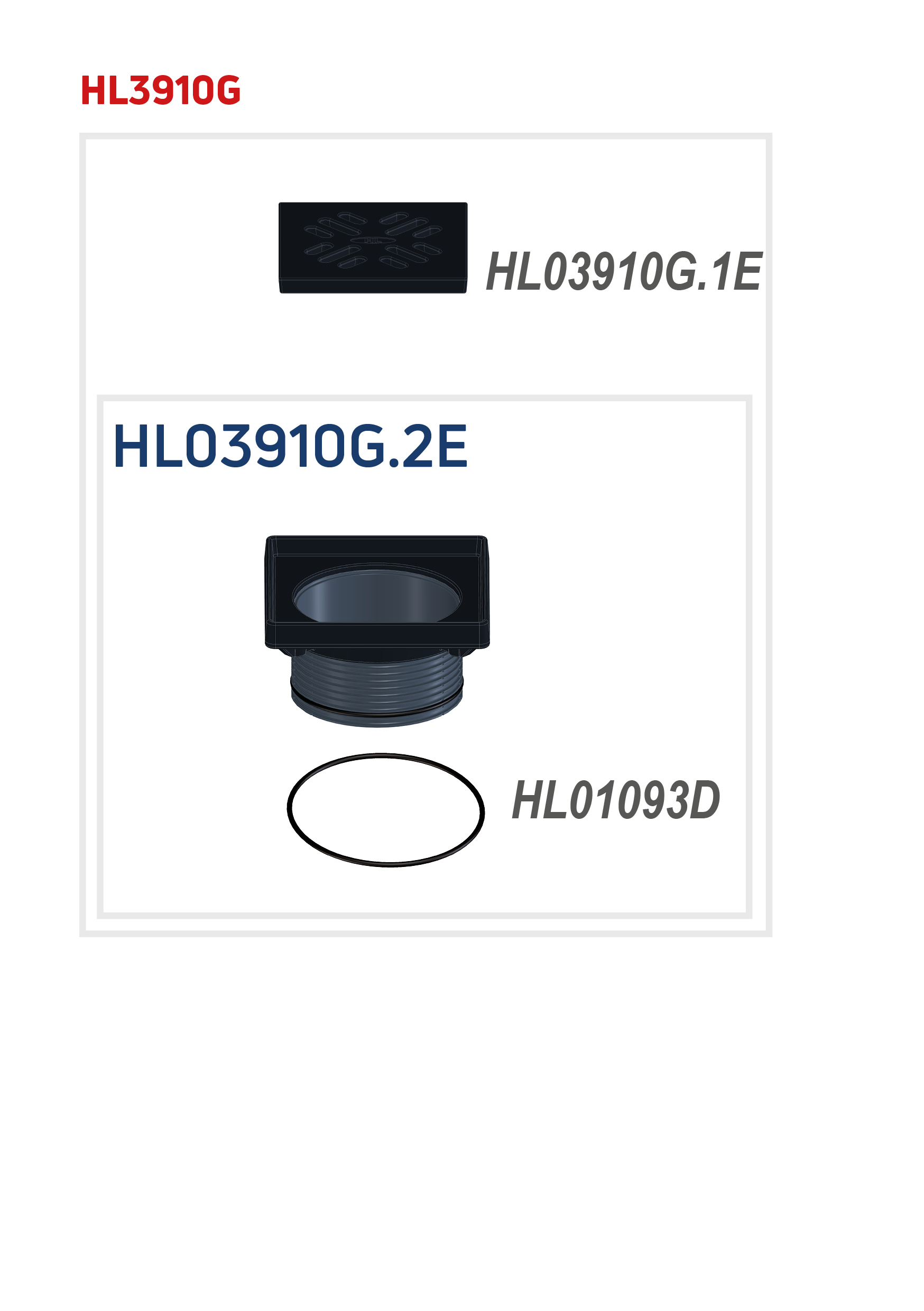

spare parts
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03910G.1EProduct overview / Floor drainsCast iron inlet 175x175mm
HL03910G.2EProduct overview / Floor drainsGrating d 146mm, cast iron frame 190x190mm
HL01093DProduct overview / Floor drainsO-ring 125x4
attachment
HL05100.7EProduct overview / Floor drainsNormal siphon complete
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
Alternatives
HL3910Product overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack
HL3910.1Product overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, with siphon
HL3910PrProduct overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, siphon PRIMUS
HL3911Product overview / Floor drains / attachmentsExtension d 146mm, stainless steel frame (V4A) 145x145mm, stainless steel grate 138x138mm, screwable.
HL3928Product overview / Floor drains / attachmentsExtension "Hamam"d 146mm, stainless steel brass plated frame and grate 145x145mm / 138x138mm, "Klick-Klack"
extensions
HL3400Product overview / Sealing kits / Extensions / extensionsElongation element d 146 mm/ 200 mm incl. O-ring
HL8500Product overview / Sealing kits / Extensions / extensionsElongation element 200 mm/ d 146 mm with flange and O-ring
HL8500HProduct overview / Sealing kits / Extensions / extensionsExtension with bitumen flange for HL3100T and 5100T series
used with
HL3100TGProduct overview / Balcony and terrace / vertical / flangeDrain DN75/110 vertical with frost-proof stench flap, cast iron frame 190x190mm, cast iron grate 175x175mm
HL3100THGProduct overview / Balcony and terrace / vertical / flangeDrain DN75/110 vertical with bitumen flange, frost-proof stench flap, cast iron frame 190x190mm, cast iron grate 175x175mm
HL5100TGProduct overview / Balcony and terrace / horizontal / flangeDrain DN75 horizontal with frost-proof stench flap, cast iron frame 190x190mm, cast iron grate 175x175mm
HL5100THGProduct overview / Balcony and terrace / horizontal / bitumen membraneDrain DN75 horizontal with bitumen flange, frost-proof stench flap, cast iron frame 190x190mm, cast iron grate 175x175mm
technical data
| material | PP/GG |
| dimension |
| capacity |
| weight | 5,4 [kg] |
| EAN | 9003076048793 |
| installation height | 105mm (45-80mm) |
| grate frame | 45-80mm |
| grate | 175x175mm Guss |
| load class | B - max. 12,5 t |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 5,531 [kg] |
| EAN/pack. | 9003076048793 |
| height/width/depth | 155/205/205 [mm] |
| volume | 0,006513875 [m3] |
