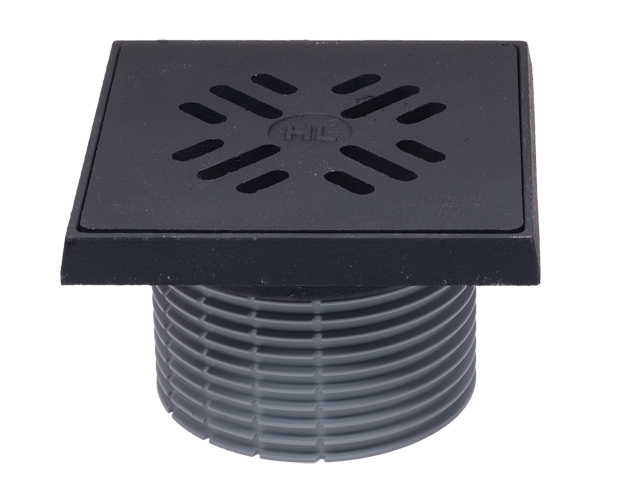

grating d 110mm/cast iron frame 150x150mm/137x137mm cast iron
grating d 110 mm with cast iron frame 150 x 150 mm and -grate 137 x 137 mm. Total height 93 mm, frame height 30 mm

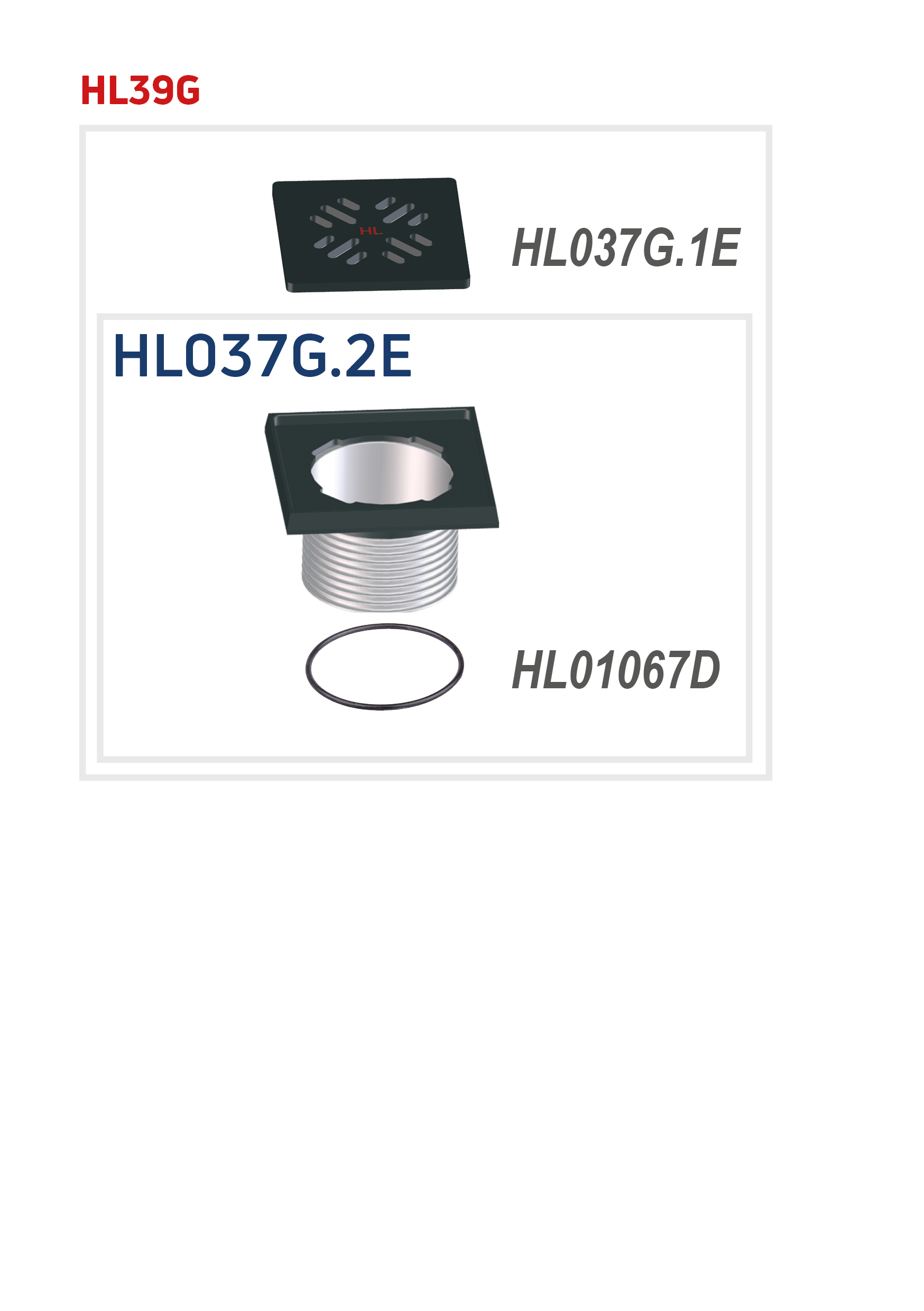

spare parts
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL037G.1EProduct overview / Floor drainscast iron grate 137x137mm
HL037G.2EProduct overview / Floor drainsGrating d 110mm, cast iron frame 150x150mm
HL01067DProduct overview / Floor drainsO-ring 92x4mm
attachment
HL0510.7EProduct overview / Floor drainstrap seal cartridge
HL090.4EProduct overview / Balcony and terrace / attachmentsflap cartridge
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
Alternatives
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
used with
HL300GProduct overview / Floor drains / horizontal / flangefloor drain DN50 horizontal with inlet DN40/50, 150x150mm/137x137mm cast iron
HL310PrblueGProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange,with Primus Blue, cut-to-size plastic extension 34 - 75 mm, cast iron grate frame 150 x 150 mm and - grate 137 x 137 mm. Comes with lot cover.
HL510PrblueGProduct overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with flange, with Primus blue, cut-to-size plastic extension 34 - 78 mm, cast iron grate frame 150 x 150 mm and - grate 137 x 137 mm. Comes with lot cover.
HL70GProduct overview / Anti flood valves / Basement drain with backwater protectionfloor drain DN75/110 horizontal with non-return valve and 3 inlets DN40/50, 150x150mm/137x137mm cast iron
HL81.1GProduct overview / Floor drains / vertical / flangefloor drain DN50/75 ball-joint with trap seal, 150x150mm/137x137mm cast iron
HL81.1GHProduct overview / Floor drains / vertical / bitumen membranefloor drain DN50/75 ball-joint with bitumen membrane and trap seal, 150x150mm/137x137mm cast iron
HL81GProduct overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75 ball-joint with frost-proof flap seal, 150x150mm/137x137mm cast iron
HL81GHProduct overview / Balcony and terrace / vertical / bitumen membranebalcony and terrace drain DN50/75 ball-joint with bitumen membrane and frost-proof flap seal, 150x150mm/137x137mm cast iron
technical data
| material | PP |
| dimension | d 110 mm |
| capacity |
| weight | 2,035 [kg] |
| EAN | 9003076000647 |
| installation height | 93 mm |
| grate frame | 150x150mm Guss |
| grate | Gusseisen 137x137mm |
| load class | A bzw. L - 1,5 t |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 2,166 [kg] |
| EAN/pack. | 9003076000647 |
| height/width/depth | 155/205/205 [mm] |
| volume | 0,006513875 [m3] |
