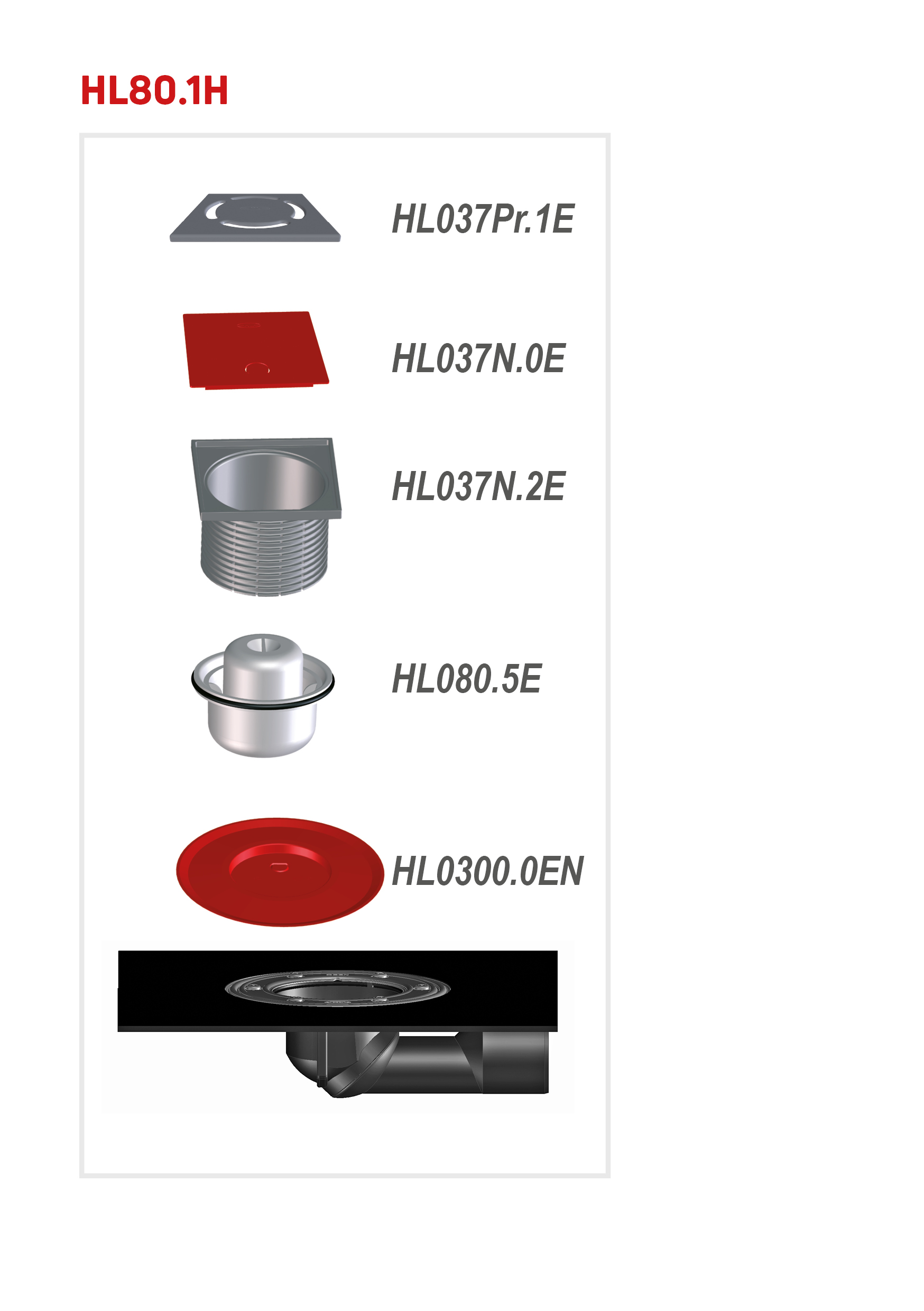

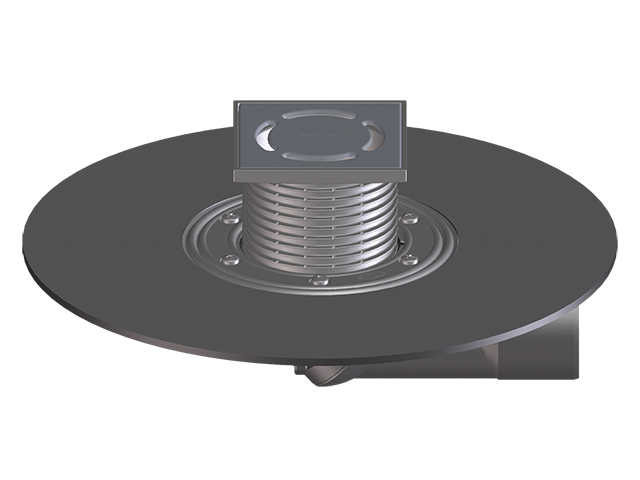

floor drain DN50/75 with ball-joint outlet (for horizontal and vertical use), bitumen membrane d 420 mm for perfect and easy lap-joint waterproofing with bituminous membranes, trap seal, cut-to-size plastic grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.
| material | PP/PE |
| dimension | DN50/75 |
| capacity | 0,5 l/s |
| weight | 1,272 [kg] |
| EAN | 9003076701810 |
| installation height | 103 mm |
| grate frame | 12-70 mm/123 x 123 mm |
| grate | Edelstahl 115 x 115 mm |
| load class | K - 300 kg |
| inlet |
| standards |
| unit | 1 [pcs.] |
| weight | 1,52 [kg] |
| EAN/pack. | 9003076701810 |
| height/width/depth | 145/260/435 [mm] |
| volume | 0,016399500 [m3] |
