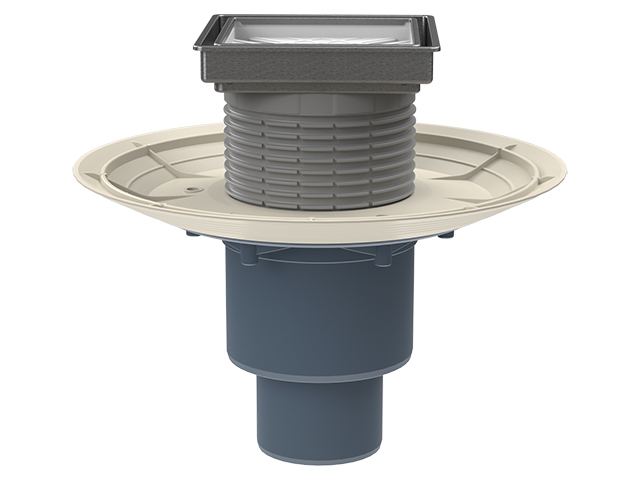

Floor drain DN50/75/110 vertical with sifon cartridge and extension with tileable stainless steel frame 132 x 132 mm / 112 x 112 mm, shortable from 10 - 80 mm. Lot cover included.
| material | PP. Edelstahl |
| dimension | DN50/75/110 |
| capacity | 0,67 l/s |
| weight | 0,661 [kg] |
| EAN | 9003076034383 |
| installation height | 176 mm |
| grate frame | 10-80 mm / 132x132 mm |
| grate | Edelstahl 112x112 mm |
| load class | K3 - 300 kg |
| inlet |
| standards | EN1253 |
| unit | 1 [pcs.] |
| weight | 0,963 [kg] |
| EAN/pack. | 9003076034383 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
