HL317KN

floor drain body DN75 vertical with stainless steel liner

HL317KN

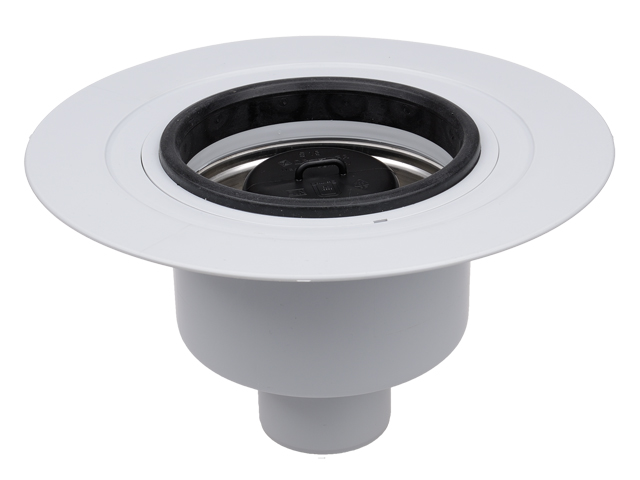

floor drain body DN75 vertical with flange, trap seal and stainless steel liner. Comes with lot cover.

spare parts

HL01059DProduct overview / Sealing kits / Extensionstailback gasket 172x145mm HL0317KN.3EProduct overview / Floor drainstrap cartridge HL0317.3EProduct overview / Floor drainsbell trap

attachment

HL0317.4EProduct overview / Floor drainsreduction DN110xDN75 HL0317.5EProduct overview / Floor drainsstrainer HL160Product overview / Roof drains / attachmentsgravel guard d 150mm HL66Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm HL062B.3EProduct overview / Roof drainsadapter HL160Product overview / Roof drains / attachmentsgravel guard d 150mm HL66.1Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm HL062B.3EProduct overview / Roof drainsadapter HL160Product overview / Roof drains / attachmentsgravel guard d 150mm HL66.3Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/147x147mm/138x138mm HL66.4Product overview / Floor drains / vertical / without flangegrating d 145mm sleek/147x147mm/138x138mm plastic HL66PProduct overview / Floor drains / vertical / flangegrating d 145mm sleek with PVC collar 206x206mm/138x138mm HL66QProduct overview / Floor drains / vertical / without flangegrating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm "Quadra" (316) HL67Product overview / Floor drains / vertical / without flangegrating round d 145mm sleek/(316) stainless steel frame d 155mm/d 145mm HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm HL062B.3EProduct overview / Roof drainsadapter HL160Product overview / Roof drains / attachmentsgravel guard d 150mm HL850Product overview / Attachmentsfire collar R90 for HL317 series HL855Product overview / Attachmentsformwork-core with center-ring for HL850

Alternatives

HL317KHNProduct overview / Floor drains / vertical / bitumen membranefloor drain body DN75 vertical with bitumen membrane and stainless steel liner

extensions

HL350Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm HL350.1Product overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with flange and waterproofing kit HL84 HL350.1HProduct overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with bitumen membrane HL350.2Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm with inlet DN40

Waterproofing Kits

HL84Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar d 500mm HL84.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit HL84.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece

technical data

material

PP, Edelstahl

dimension

DN75

capacity

1,60 l/s

weight

0,981

[kg]

EAN	9003076006946

installation height

200 mm

grate frame

grate

load class

inlet

standards

carton

unit

1

[pcs.]

weight

1,34

[kg]

EAN/pack.

9003076006946

height/width/depth

185/305/305

[mm]

volume

0,017209625

[m³]

downloads

Foto Print

max.

Foto Web

640x480/300dpi

Foto Parts List

150x150/72dpi

Techn. drawing

pdf

CAD

HL317KN_2_a.dxf

dxf
