HL66.9

grating d 145mm fluted/148x148mm/138x138mm

HL66.9

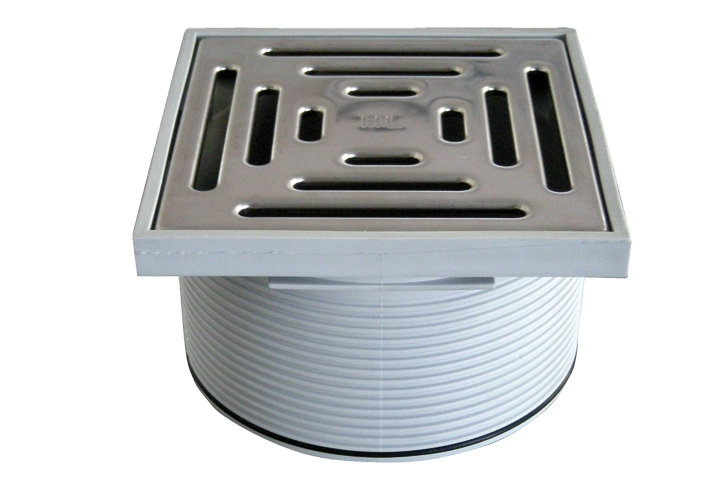

grating 90 mm fluted / d 145 mm / 148 x 148 mm with stainless steel grate 138 x 138 mm. Total height 90 mm, frame height 10 mm

spare parts

HL0317.1EProduct overview / Floor drainsstainless steel grate 138x138mm HL062B.2EProduct overview / Roof drainsgrate frame d 145mm/90mm/148x148mm HL066.4EProduct overview / Floor drainsO-ring 135x2,5mm

attachment

HL062B.3EProduct overview / Roof drainsadapter HL160Product overview / Roof drains / attachmentsgravel guard d 150mm

extensions

HL350Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm HL350.1Product overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with flange and waterproofing kit HL84 HL350.1HProduct overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with bitumen membrane HL65Product overview / Roof drains / vertical / clamping ringextension 300mm/d 125mm with clamping ring HL65HProduct overview / Roof drains / vertical / bitumen membraneextension 300mm/d 125mm with bitumen membrane HL65PProduct overview / Roof drains / vertical / PVC-collarextension 345mm/d 125mm with PVC collar

used with

HL62.1B/1Product overview / Roof drains / vertical / clamping ringflat-roof drain DN110 with clamping ring, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1B/2Product overview / Roof drains / vertical / clamping ringflat-roof drain DN125 with clamping ring, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1B/5Product overview / Roof drains / vertical / clamping ringflat-roof drain DN160 with clamping ring, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1B/7Product overview / Roof drains / vertical / clamping ringflat-roof drain DN75 with clamping ring, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BF/1Product overview / Roof drains / verticalFlat-roof drain DN110 vertical with PP-flange and heating /10-30W/230V), walkable HL62.1BF/2Product overview / Roof drains / verticalFlat-roof drain DN125 vertical with PP-flange and heating /10-30W/230V), walkable HL62.1BF/7Product overview / Roof drains / verticalFlat-roof drain DN75 vertical with PP-flange and heating /10-30W/230V), walkable HL62.1BH/1Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN110 with bitumen membrane, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BH/2Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN125 with bitumen membrane, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BH/5Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN160 with bitumen membrane, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BH/7Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN75 with bitumen membrane, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BP/1Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN110 with PVC collar, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BP/2Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN110 with PVC collar, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BP/5Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN160 with PVC collar, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62.1BP/7Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN75 with PVC collar, heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL62B/1Product overview / Roof drains / vertical / clamping ringflat-roof drain DN110 with clamping ring. Walkable - 148x148mm/137x137mm HL62B/2Product overview / Roof drains / vertical / clamping ringflat-roof drain DN125 with clamping ring. Walkable - 148x148mm/137x137mm HL62B/5Product overview / Roof drains / vertical / clamping ringflat-roof drain DN160 with clamping ring. Walkable - 148x148mm/137x137mm HL62B/7Product overview / Roof drains / vertical / clamping ringflat-roof drain DN75 with clamping ring. Walkable - 148x148mm/137x137mm HL62BF/1Product overview / Roof drains / verticalFlat-roof drain DN110 vertical with PP-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL62BF/2Product overview / Roof drains / verticalFlat-roof drain DN125 vertical with PP-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL62BF/7Product overview / Roof drains / verticalFlat-roof drain DN75 vertical with PP-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL62BH/1Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN110 with bitumen membrane. Walkable - 148x148mm/137x137mm HL62BH/2Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN125 with bitumen membrane. Walkable - 148x148mm/137x137mm HL62BH/5Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN160 with bitumen membrane. Walkable - 148x148mm/137x137mm HL62BH/7Product overview / Roof drains / vertical / bitumen membraneflat-roof drain DN75 with bitumen membrane. Walkable - 148x148mm/137x137mm HL62BP/1Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN110 with PVC collar. Walkable - 148x148mm/137x137mm HL62BP/2Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN125 with PVC collar. Walkable - 148x148mm/137x137mm HL62BP/5Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN160 with PVC collar. Walkable - 148x148mm/137x137mm HL62BP/7Product overview / Roof drains / vertical / PVC-collarflat-roof drain DN75 with PVC collar. Walkable - 148x148mm/137x137mm HL64.1BProduct overview / Roof drains / horizontal / clamping ringflat-roof drain DN75/110 horizontal with clamping ring heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL64.1BF/1Product overview / Roof drains / horizontalFlat-roof drain DN110 horizontal with PP-flange and heating /10-30W/230V), walkable HL64.1BF/7Product overview / Roof drains / horizontalFlat-roof drain DN75 horizontal with PP-flange and heating /10-30W/230V), walkable HL64.1BHProduct overview / Roof drains / horizontal / bitumen membraneflat-roof drain DN75/110 horizontal with bitumen membrane heated (10-30W/230V). Walkable - 148x148mm/137x137mm HL64.1BP/1Product overview / Roof drains / horizontal / PVC-collarFlat-roof drain DN110 horizontal with PVC-flange and heating /10-30W/230V), walkable HL64.1BP/7Product overview / Roof drains / horizontal / PVC-collarFlat-roof drain DN75 horizontal with PVC-flange and heating /10-30W/230V), walkable HL64BProduct overview / Roof drains / horizontal / clamping ringflat-roof drain DN75/110 horizontal with clamping ring. Walkable - 148x148mm/137x137mm HL64BF/1Product overview / Roof drains / horizontalFlat-roof drain DN110 horizontal with PP-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL64BF/7Product overview / Roof drains / horizontalFlat-roof drain DN75 horizontal with PP-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL64BHProduct overview / Roof drains / horizontal / bitumen membraneflat-roof drain DN75/110 horizontal with bitumen membrane. Walkable - 148x148mm/137x137mm HL64BP/1Product overview / Roof drains / horizontal / PVC-collarFlat-roof drain DN110 horizontal with PVC-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL64BP/7Product overview / Roof drains / horizontal / PVC-collarFlat-roof drain DN75 horizontal with PVC-flange, walkable. Frame 137mm x 137mm, grate 148mm x 148mm. HL72NProduct overview / Anti flood valves / Basement drainbasement drain DN110 horizontal 148x148mm/138x138mm HL72N/7Product overview / Anti flood valves / Basement drainbasement drain DN75 horizontal 148x148mm/138x138mm

technical data

material

PP

dimension

d 145mm

capacity

weight

0,345

[kg]

EAN	9003076014606

installation height

90mm

grate frame

147x147mm

grate

Edelstahl 138x138mm

load class

K - 300kg

inlet

standards

PE-bag

unit

1

[pcs.]

weight

0,352

[kg]

EAN/pack.

9003076014606

height/width/depth

100/160/160

[mm]

volume

0,002560000

[m³]

downloads

Foto Print

max.

Foto Web

640x480/300dpi

Foto Parts List

150x150/72dpi

Techn. drawing

pdf

CAD

dxf
