Product overviewShower trays

products

HL520F

product link (product category - independent)


Download PDF

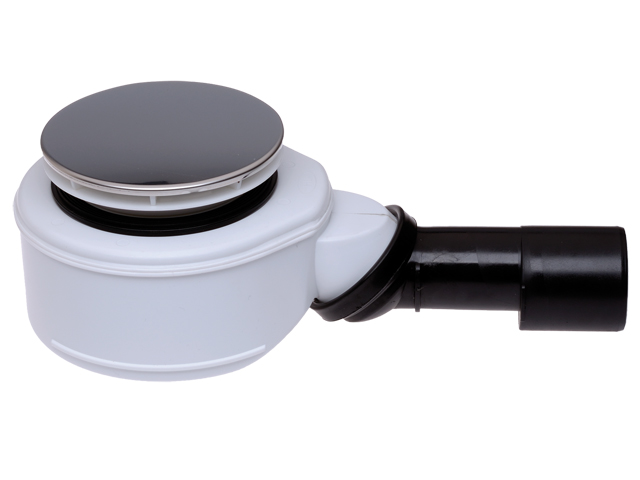

Flat shower trap DN40/50 with ball-joint for waste holes d 90mm and stainless steel coverplate d 113mm

HL520F

  • main data
  • technical data
  • packaging data
  • downloads

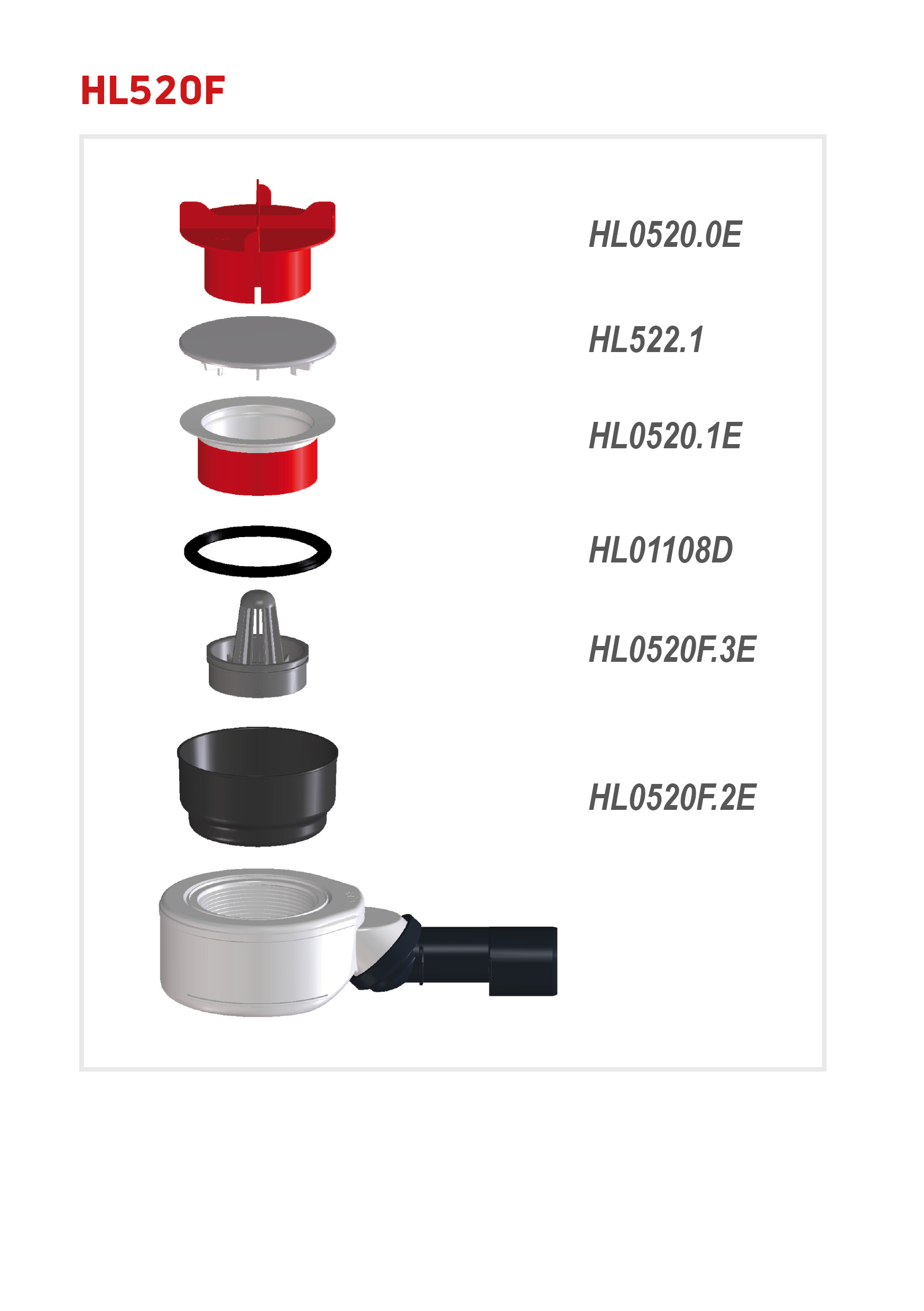

spare parts

 HL01108DProduct overview / Shower traysWaste gasket for HL520F  HL0520.0EProduct overview / Shower traysfunction lot cover / assembling tool for HL520-series  HL0520.1EProduct overview / Shower trayswaste valve for HL520-series  HL0520F.2EProduct overview / Shower traysTrap seal cartridge for HL520F-series  HL0520F.3EProduct overview / Shower traysHair strainer for HL520F  HL522.1Product overview / Shower trays / attachmentsCover plate stainless steel d 112mm

attachment

 HL522.11Product overview / Shower trays / attachmentsCover plate gold plated d 112mm  HL522.2Product overview / Shower trays / attachmentsCover plate solid brass d 112mm  HL522.3Product overview / Shower trays / attachmentsCover plate white d 112mm

technical data

materialPP/PE
dimensionDN40/50
capacity0,60 l/s
weight0,53
[kg]
EAN9003076037452
installation height73 mm
grate frame
grate
load class
inlet
standardsEN274

carton

unit1
[pcs.]
weight0,682
[kg]
EAN/pack.9003076037452
height/width/depth120/295/225
[mm]
volume0,007965000
[m3]

single use pallet

unit182
[pcs.]
weight138
[kg]
EAN/pack.
height/width/depth1950/800/1200
[mm]
volume1,872000000
[m3]

downloads

Foto Print
HL520F_pr.tif
max.
Foto Web
640x480/300dpi
Foto Parts List
150x150/72dpi
Techn. drawing
HL520F_1_a.pdf
pdf
CAD
HL520F_2_a1.dxf
dxf
example of use
HL520F_PZ.pdf
pdf
