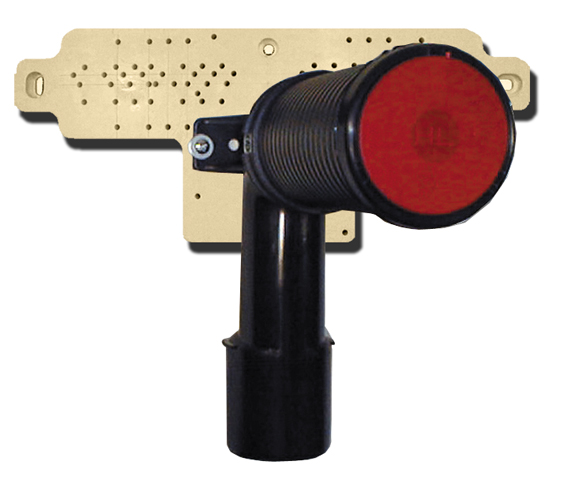

wash-basin connection kit consisting of HL34 and HL44
wash-basin connection kit consisting of 90° connector DN40/50 HL34 and mounting plate HL44
spare parts
HL3402 Wash basins/Attachments/Others/HL34/HL3490° connector DN40/50 for outlet pipes DN32 and DN40
HL01054D01 Kitchen traps/Attachments/Spare parts/HL01054Dlip seal 48x26mm
HL034.1E02 Wash basins/Attachments/Spare parts/Spare Parts Washbasins/HL034.1Elot-cover
HL4402 Wash basins/Attachments/Spare parts/Spare Parts Washbasins/HL44mounting plate
attachment
technical data
| material | PE |
| dimension | DN40/DN50 |
| capacity |
| weight | 0,286 [kg] |
| EAN | 9003076900350 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,289 [kg] |
| height/width/depth | 80/200/270 [mm] |
| volume | 0.00432 [m3] |
carton
| unit | 10 [pcs.] |
| weight | 3,23 [kg] |
| height/width/depth | 320/250/410 [mm] |
| volume | 0.0328 [m3] |
