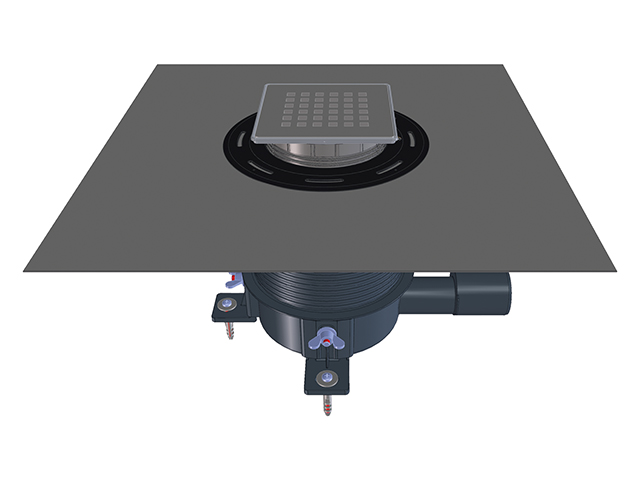

"Primus blue" Shower Drain designed with massive stainless steel grating „Quadra“, including sealing kit and mounting angles
spare parts
HL0541.0EProduct overview / Barriere-free showersLot cover HL541
HL0541.2EProduct overview / Barriere-free showersExtension with stainless steel frame, system "Klick-Klack"
HL0541.3EProduct overview / Barriere-free showersFixing kit, including 3 angles and screws
HL0541.4EProduct overview / Barriere-free showersSealing kit including membrane
HL0541.6eProduct overview / Barriere-free showersHair stop for HL541
HL2020Product overview / Barriere-free showers"Primus blue" trap
HL0541.6eProduct overview / Barriere-free showersHair stop for HL541
HL3120Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Quadra"
HL541kProduct overview / Barriere-free showers / floor drainsDrain body with 3 fixing angles, including lot cover.
HL0541.0EProduct overview / Barriere-free showersLot cover HL541
HL0541.3EProduct overview / Barriere-free showersFixing kit, including 3 angles and screws
attachment
HL0541.5eProduct overview / Barriere-free showers / floor drainsSet for completion of shower drain "PRIMUS-BLUE", including stainless steel grate, sealing kit, odour trap, Klick-Klack system and supporting frame
HL0541iProduct overview / Barriere-free showers / attachmentsStainless steel grate with tile hollow
HL3121Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Seine"
HL3122Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Loire"
HL3123Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Orinoko"
HL3124Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Nil"
HL3125Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Yukon"
HL3127Product overview / Floor drains / attachmentsStainless steel grate 115x115mm 'Primus Design'
HL6200Product overview / Barriere-free showers / attachmentsSound protection pad 500x500mm
Alternatives
HL541Product overview / Barriere-free showers / floor drainsShower drain "Primus blue", including sealing kit and adjusting angles
HL541iProduct overview / Barriere-free showers / floor drainsShower drain "Primus blue" with tile hollow, including sealing kit and adjusting angles
Waterproofing Kits
technical data
| material | PP, Edelstahl |
| dimension | DN40/50 |
| capacity | 0,45l/s |
| weight | 1,819 [kg] |
| EAN | 9003076048236 |
| installation height | 62-230mm (Estrichoberkante) |
| grate frame | Edelstahl V4A 10-30mm/121x121 |
| grate | Edelstahl V4A 115x115 |
| load class | K3 - 300 |
| inlet |
| standards | EN1253 |
carton
| unit | 1 [pcs.] |
| weight | 2,017 [kg] |
| EAN/pack. | 9003076048236 |
| height/width/depth | 230/200/300 [mm] |
| volume | 0,013800000 [m3] |
