Product overviewFloor drainsvertical

flange

HL310K

product link (product category - independent)


Download PDF

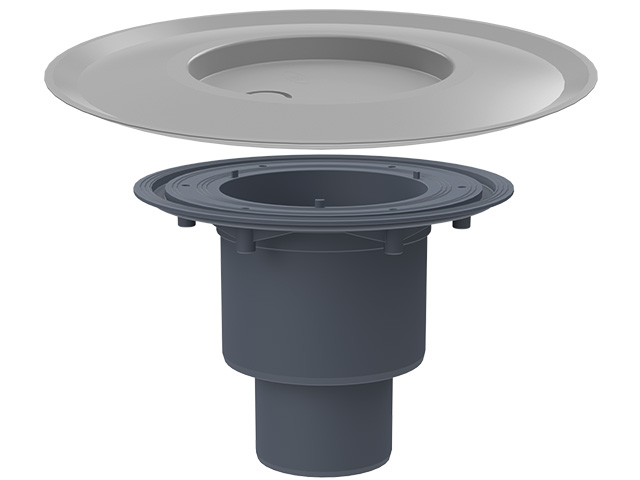

Floor drain body DN50/75/110 vertical with flange. Comes with lot cover.

HL310K

  • main data
  • technical data
  • packaging data
  • downloads

used with

 HL310NProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 123x123mm/115x115mm  HL310N.2Product overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75/110 vertical with frost-proof flap seal, 123x123mm/115x115mm  HL310N-3000Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm  HL310N-3120Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Quadra"  HL310N-3121Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Seine"  HL310N-3123Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Orinoco"  HL310N-3124Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Nil"  HL310N-3125Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Yukon"  HL310NGProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 150x150mm/137x137mm cast iron  HL310PrblueProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, trap seal Primus Blue, cut-to-size grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.  HL310Prblue-3000Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, trap seal Primus Blue, cut-to-size grate frame 12 - 70 mm and stainless steel grate 115 x 115 mm and stainless steel rame 121x121mm. Comes with lot cover.  HL310Prblue-3120Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange,with Primus Blue, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Quadra" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK"  HL310Prblue-3121Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Seine" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK"  HL310Prblue-3123Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Orinoco" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK"  HL310Prblue-3124Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Nil" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK"  HL310Prblue-3125Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Yukon" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK  HL310PrblueGProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange,with Primus Blue, cut-to-size plastic extension 34 - 75 mm, cast iron grate frame 150 x 150 mm and - grate 137 x 137 mm. Comes with lot cover.  HL310PrblueRProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size plastic extension 20 - 75 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.

technical data

materialPP
dimensionDN50/75/110
capacity
weight0,173
[kg]
EAN9003076001781
installation height144 mm
grate frame
grate
load class
inlet
standards

carton

unit1
[pcs.]
weight0,35
[kg]
EAN/pack.9003076001781
height/width/depth155/225/295
[mm]
volume0,010288125
[m3]

single use pallet

unit143
[pcs.]
weight60
[kg]
EAN/pack.
height/width/depth1900/800/1200
[mm]
volume1,824000000
[m3]

downloads

Foto Print
HL310K_pr.tif
max.
Foto Web
640x480/300dpi
Techn. drawing
HL310K_1_a.pdf
pdf
CAD
HL310K_2_a1.dxf
dxf
example of use
HL310K_PZ.pdf
pdf
