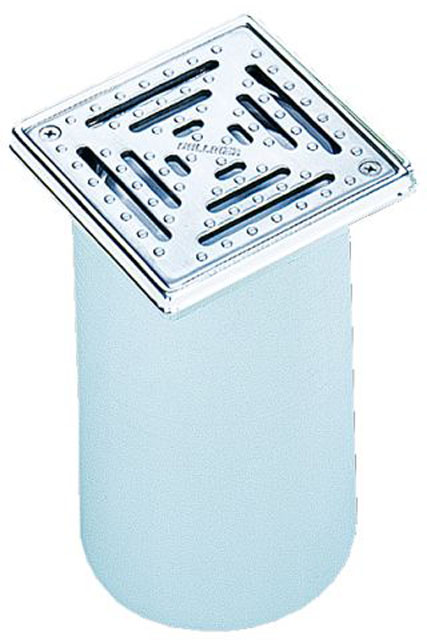

grating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant
grating 205 mm sleek / d 145 mm with stainless steel frame (316) 150 x 150 mm and secured and slip-resistant stainless steel grate (316) 138 x 138 mm. Total height 203 mm, frame height 15mm

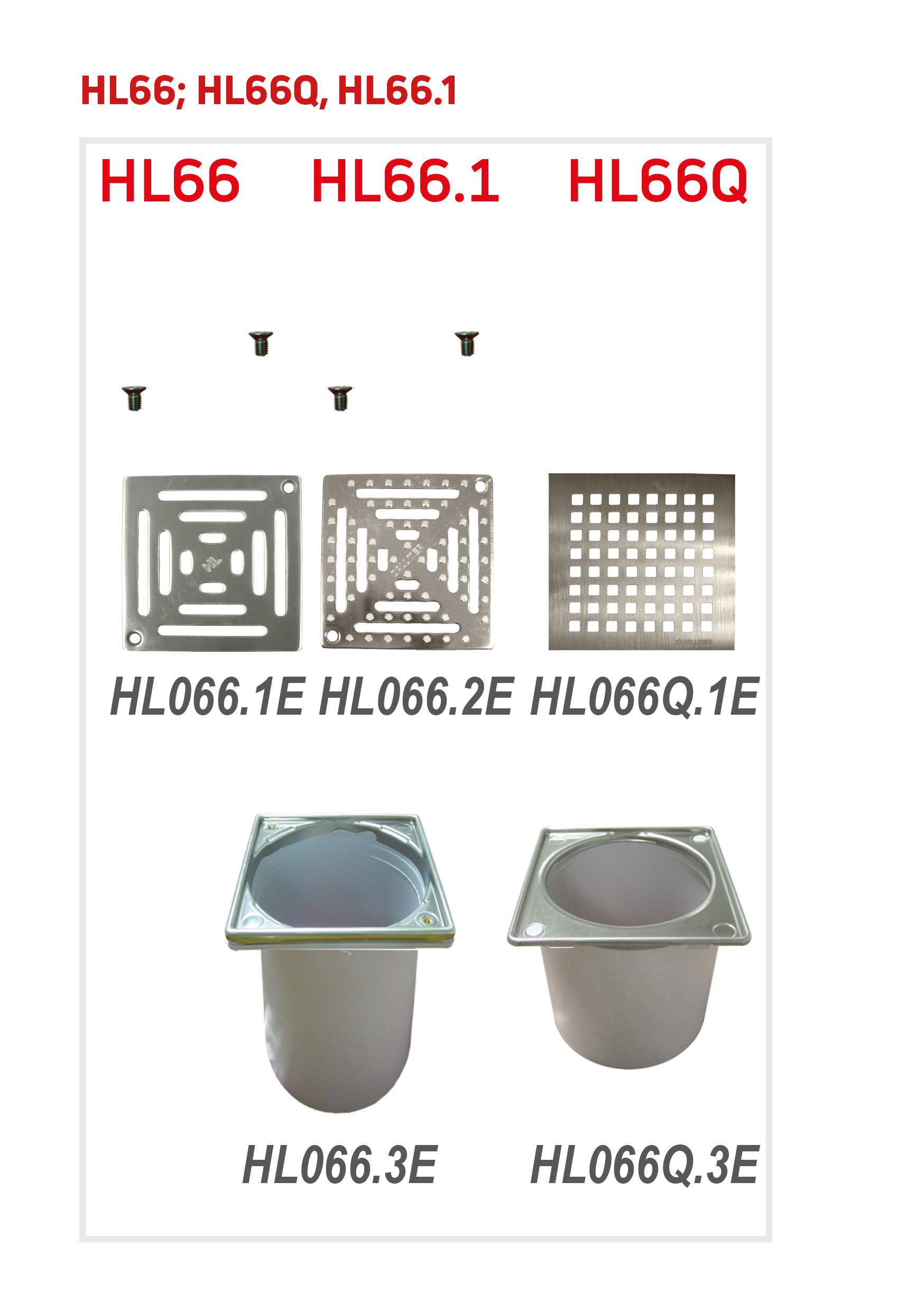

spare parts
HL066.2EProduct overview / Floor drainsstainless steel grate (316) 138x138mm secured and slip-resistant
HL066.3EProduct overview / Floor drainsgrate frame d 145mm/205mm/stainless steel frame 150x150mm secured
attachment
HL01058DProduct overview / Sealing kits / Extensionstailback gasket for stainless steel flange 220x155mm
HL062B.3EProduct overview / Roof drainsadapter
HL160Product overview / Roof drains / attachmentsgravel guard d 150mm
Alternatives
extensions
HL350Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm
HL350.1Product overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1HProduct overview / Sealing kits / Extensions / extensionsextension 180mm/d 145mm with bitumen membrane
HL350.2Product overview / Sealing kits / Extensions / extensionsextension 130mm/d 145mm with inlet DN40
HL65Product overview / Roof drains / vertical / clamping ringextension 300mm/d 125mm with clamping ring
HL65HProduct overview / Roof drains / vertical / bitumen membraneextension 300mm/d 125mm with bitumen membrane
HL65PProduct overview / Roof drains / vertical / PVC-collarextension 345mm/d 125mm with PVC collar
technical data
| material | PP/Edelstahl V4A |
| dimension | d 145 mm |
| capacity |
| weight | 1,049 [kg] |
| EAN | 9003076702664 |
| installation height | 205 mm |
| grate frame | 150x150mm |
| grate | Edelstahl 138x138mm |
| load class | A bzw. L - 1,5 t |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 1,059 [kg] |
| EAN/pack. | 9003076702664 |
| height/width/depth | 210/150/150 [mm] |
| volume | 0,004725000 [m3] |
