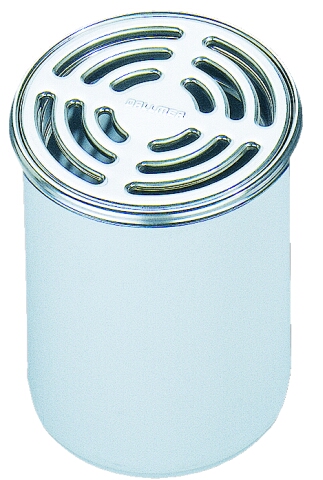

grating round d 145mm sleek/(316) stainless steel frame d 155mm/d 145mm
grating round 150 mm sleek / d 145 mm with stainless steel frame d 155 mm and stainless steel grate d 145 mm. Total height 150 mm, frame height 7 mm
spare parts
HL067.1E13 Floor drains/Attachments/Spare parts/HL067.1Estainless steel grate round d 145mm
HL067.2E13 Floor drains/Attachments/Spare parts/HL067.2Egrate frame round d 145mm/150mm/stainless steel frame (316) d 155mm
attachment
HL01058D14 Sealing kits / Extensions/Attachments/Spare parts/HL01058Dtailback gasket for stainless steel flange 220x155mm
HL062B.3E11 Roof drains/Attachments/Spare parts/HL062B.3Eadapter
HL16011 Roof drains/Attachments/Drainage elements/HL160/HL160gravel guard d 150mm
HL35013 Floor drains/Attachments/Extensions/HL350/HL350extension 130mm/d 145mm
HL350.111 Roof drains/Attachments/Extensions/HL350/HL350.1extension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1H13 Floor drains/Attachments/Extensions/HL350/HL350.1Hextension 180mm/d 145mm with bitumen membrane
HL350.211 Roof drains/Attachments/Extensions/HL350/HL350.2extension 130mm/d 145mm with inlet DN40
HL6511 Roof drains/Attachments/Extensions/HL65/HL65extension 300mm/d 125mm with clamping ring
HL062.1E11 Roof drains/Attachments/Spare parts/HL062.1Edomed plastic grate
HL17511 Roof drains/Attachments/Leave/Gravel catcher/HL175/HL175domed grate stainless steel
HL6613 Floor drains/Attachments/Gratings/HL66/HL66grating d 145mm sleek stainless steel frame 150x150mm/138x138mm secured
HL66.113 Floor drains/Attachments/Gratings/HL66/HL66.1grating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant
HL66.913 Floor drains/Attachments/Gratings/HL66/HL66.9grating d 145mm fluted/148x148mm/138x138mm
HL65H11 Roof drains/Attachments/Extensions/HL65/HL65Hextension 300mm/d 125mm with bitumen membrane
HL65P11 Roof drains/Attachments/Extensions/HL65/HL65Pextension 345mm/d 125mm with PVC collar
technical data
| material | PP |
| dimension | d 145 mm |
| capacity |
| weight | 0,518 [kg] |
| EAN | 9003076700677 |
| installation height | 150 mm |
| grate frame |
| grate | Edelstahl d 145 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
pcs.
| unit | 1 [pcs.] |
| weight | 0,518 [kg] |
| height/width/depth | 160/160/160 [mm] |
| volume | 0.004096 [m3] |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,524 [kg] |
| height/width/depth | 160/160/160 [mm] |
| volume | 0.004096 [m3] |
downloads
HL67_pr
HL67_B
HL67_gr
txt
66.H6 79 Aufzahlung (Az) auf Bodenablauf (BodenA) für einen Aufsatz (AS) 145 mm Durchmesser aus PP mit Aufsatzrahmen (AR) 150x150 mm und Rost aus NIRO 138x138 mm, Belastungsklasse K3 mit Baustützrahmen. Im Positionsstichwort ist die Ausführung des Rostes verschraubbar (vers.), Modell "Quadra", rutschhemmend (rutschhemmd.), V2A Rost, Kunststoffrost (KunststoffR), NIRO mit PVC-Kragen, PP-Rost mit Rillen, Aufsatz gerillt mit NIRO-Rost, rund NIRO 155 mm Durchmesser oder nur Aufsatz mit NIRO Rahmen 121x121 mm angegeben.
M. Az BodenA AS 145 PP AR rund NIRO 155mm K3 (Stk)
