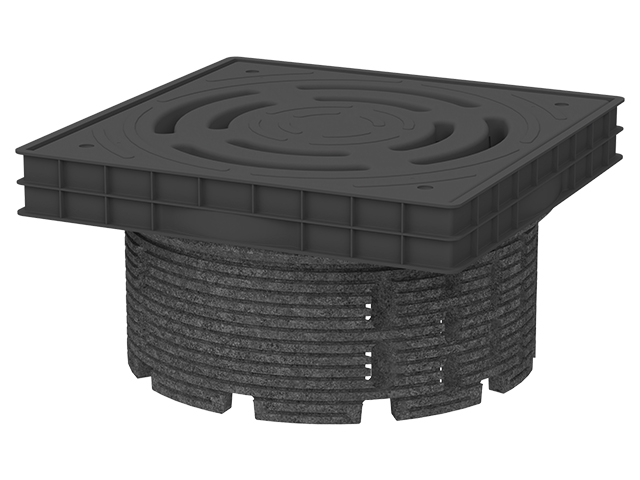

Drainage and inspection chamber for green roofs, gravel roofs and terraces. Including plastic frame and plastic grate
Drainage and inspection chamber for green roofs, gravel roofs and terraces. Including plastic frame and screwable plastic grate. For easy inspection and maintanence of roof drains. Size adjustable between 68 and 200 mm. Load class K3 - max. 300 kg.
spare parts
HL0635N.1Product overview / Roof drainsPlastic grate for drainage and inspection chamber HL635N(.0)
HL0635N.5EProduct overview / Roof drainsCountersunk srews M6 x 40mm (4pcs)
attachment
HL0635N.2Product overview / Roof drainsGalvanized steel grate for drainage and inspection chamber HL635N(.0)
HL0635N.3Product overview / Roof drainsPlastic cover for drainage and inspection chamber HL635N(.0)
HL636NProduct overview / Roof drainsExtension for drainage and inspection chamber HL635N(.0)
technical data
| material | EPS/PP |
| dimension |
| capacity |
| weight | 2,151 [kg] |
| EAN | 9003076032228 |
| installation height | 70-205mm |
| grate frame |
| grate |
| load class | K3- 300kg |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 2,544 [kg] |
| EAN/pack. | 9003076032228 |
| height/width/depth | 210/390/390 [mm] |
| volume | 0,031941000 [m3] |
single use pallet
| unit | 42 [pcs.] |
| weight | 116,85 [kg] |
| EAN/pack. |
| height/width/depth | 1800/800/1200 [mm] |
| volume | 1,728000000 [m3] |
