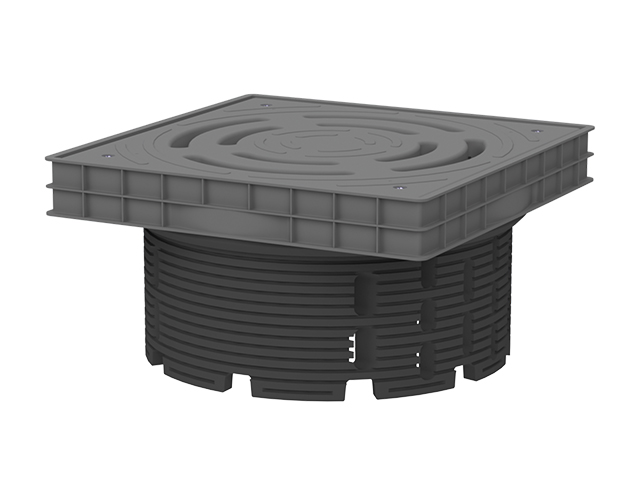

Drainage and inspection chamber for green roofs, gravel roofs and terraces. Including plastic frame and plastic grate
Drainage and inspection chamber for green roofs, gravel roofs and terraces. Including plastic frame and screwable plastic grate. For easy inspection and maintanence of roof drains. Size adjustable between 68 and 200 mm. Load class K3 - max. 300 kg.

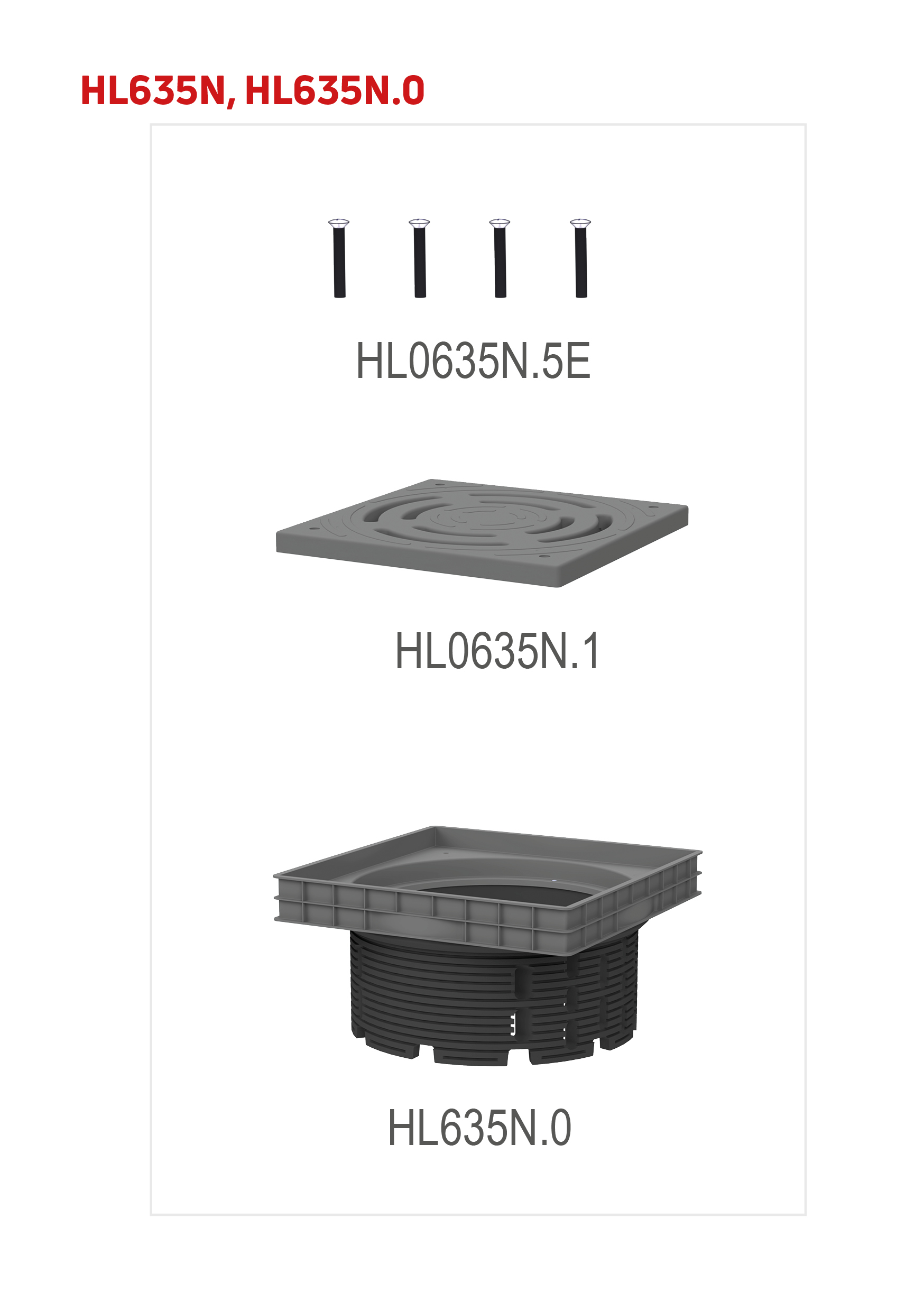

spare parts
HL0635N.111 Roof drains/Attachments/Drainage chamber/HL635N/HL0635N.1Plastic grate for drainage and inspection chamber HL635N(.0)
HL0635N.5E11 Roof drains/Attachments/Spare parts/HL0635N.5ECountersunk srews M6 x 40mm (4pcs)
attachment
HL0635N.211 Roof drains/Attachments/Drainage chamber/HL635N/HL0635N.2Galvanized steel grate for drainage and inspection chamber HL635N(.0)
HL0635N.311 Roof drains/Attachments/Drainage chamber/HL635N/HL0635N.3Plastic cover for drainage and inspection chamber HL635N(.0)
HL636N11 Roof drains/Attachments/Extensions/HL636N/HL636NExtension for drainage and inspection chamber HL635N(.0)
technical data
| material | EPP |
| dimension |
| capacity |
| weight | 2,151 [kg] |
| EAN | 9003076032228 |
| installation height | 70 - 205 mm |
| grate frame |
| grate |
| load class | K3 - 300 kg |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 2,544 [kg] |
| height/width/depth | 210/390/390 [mm] |
| volume | 0.031941 [m3] |
single use pallet
| unit | 42 [pcs.] |
| weight | 116,85 [kg] |
| height/width/depth | 1800/800/1200 [mm] |
| volume | 1.728 [m3] |
downloads
HL635N_pr
HL635N_B
HL635N_gr
txt
66.H5 50 Kontroll- und Drainageschacht aus EPP für Grün-, Kies- und Terrassendächer mit Kunststoff-Rahmen und verschraubtem Kunststoff-Rost. Zur Inspektion und Wartung von Dachabläufen. Ablängbar von 68 bis 200mm. Belastungsklasse K3-300kg.
A. Kontroll- und Drainageschacht aus EPP ablängbar (Stk)
Z.B. HL Hutterer & Lechner Kontroll- und Drainageschacht für Grün-, Kies- und Terrassendächer mit Kunststoff-Rahmen und Kunststoff-Rost HL635N oder Gleichwertiges.
