Flat-roof drain DN160 with clamping ring

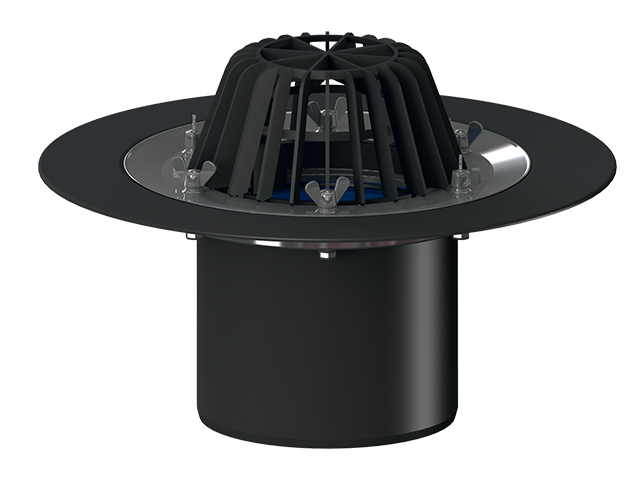

Flat-roof drain DN160 vertical with insulated drain body, flange with stainless steel clamping ring (- dress the membrane over the flange and clamp it - ready!) and domed plastic grate d 180 mm. Comes with lot cover.
spare parts
HL062.1E11 Roof drains/Attachments/Spare parts/HL062.1Edomed plastic grate
HL062.3E11 Roof drains/Attachments/Spare parts/HL062.3Estainless steel clamping ring
HL062.4E11 Roof drains/Attachments/Spare parts/HL062.4Ebutterfly nuts
HL062N.4E11 Roof drains/Attachments/Spare parts/HL062N.4E6 pcs. hexagon nut
HL17011 Roof drains/Attachments/Leave/Gravel catcher/HL170/HL170flat grate d 150mm
attachment
HL16011 Roof drains/Attachments/Drainage elements/HL160/HL160gravel guard d 150mm
HL17511 Roof drains/Attachments/Leave/Gravel catcher/HL175/HL175domed grate stainless steel
HL635N11 Roof drains/Attachments/Drainage chamber/HL635N/HL635NDrainage and inspection chamber for green roofs, gravel roofs and terraces. Including plastic frame and plastic grate
HL0635N.211 Roof drains/Attachments/Drainage chamber/HL635N/HL0635N.2Galvanized steel grate for drainage and inspection chamber HL635N(.0)
HL0635N.311 Roof drains/Attachments/Drainage chamber/HL635N/HL0635N.3Plastic cover for drainage and inspection chamber HL635N(.0)
HL636N11 Roof drains/Attachments/Extensions/HL636N/HL636NExtension for drainage and inspection chamber HL635N(.0)
HL6613 Floor drains/Attachments/Gratings/HL66/HL66grating d 145mm sleek stainless steel frame 150x150mm/138x138mm secured
HL01058D14 Sealing kits / Extensions/Attachments/Spare parts/HL01058Dtailback gasket for stainless steel flange 220x155mm
HL062B.3E11 Roof drains/Attachments/Spare parts/HL062B.3Eadapter
HL35013 Floor drains/Attachments/Extensions/HL350/HL350extension 130mm/d 145mm
HL350.111 Roof drains/Attachments/Extensions/HL350/HL350.1extension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1H13 Floor drains/Attachments/Extensions/HL350/HL350.1Hextension 180mm/d 145mm with bitumen membrane
HL350.211 Roof drains/Attachments/Extensions/HL350/HL350.2extension 130mm/d 145mm with inlet DN40
HL6511 Roof drains/Attachments/Extensions/HL65/HL65extension 300mm/d 125mm with clamping ring
HL65H11 Roof drains/Attachments/Extensions/HL65/HL65Hextension 300mm/d 125mm with bitumen membrane
HL65P11 Roof drains/Attachments/Extensions/HL65/HL65Pextension 345mm/d 125mm with PVC collar
HL66.113 Floor drains/Attachments/Gratings/HL66/HL66.1grating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant
HL66.913 Floor drains/Attachments/Gratings/HL66/HL66.9grating d 145mm fluted/148x148mm/138x138mm
HL6713 Floor drains/Attachments/Gratings/HL67/HL67grating round d 145mm sleek/(316) stainless steel frame d 155mm/d 145mm
Alternatives
HL62.1/511 Roof drains/Products/Gravity drainage/vertical/HL62/HL62.1/5flat-roof drain DN160 with clamping ring, heated (10-30W/230V)
HL62B/511 Roof drains/Products/Gravity drainage/vertical/HL62/HL62B/5flat-roof drain DN160 with clamping ring. Walkable - 148x148mm/137x137mm
HL62H/511 Roof drains/Products/Gravity drainage/vertical/HL62H/HL62H/5flat-roof drain DN160 with bitumen membrane
HL62P/511 Roof drains/Products/Gravity drainage/vertical/HL62P/HL62P/5flat-roof drain DN160 with PVC collar
technical data
| material | PP |
| dimension | DN160 |
| capacity | 14,1 l/sec |
| weight | 1,52 [kg] |
| EAN | 9003076820627 |
| installation height | 100 mm |
| grate frame |
| grate | Laubfangkorb d 145 mm |
| load class |
| inlet |
| standards | EN1253 |
carton
| unit | 1 [pcs.] |
| weight | 1,96 [kg] |
| height/width/depth | 180/385/385 [mm] |
| volume | 0.0266805 [m3] |
single use pallet
| unit | 60 [pcs.] |
| weight | 130 [kg] |
| height/width/depth | 1950/800/1200 [mm] |
| volume | 1.872 [m3] |
downloads
HL62_5_pr
HL62_5_B
HL62_5_gr
txt
66.H5 01 Dachablauf aus Polypropylen (PP), Abgang senkrecht (senk.), mit wärmegedämmtem Ablaufgehäuse (WD), Dichtflansch und Klemmelement aus NIRO, Laubfangkorb 170 mm Durchmesser, ÖNORM EN 1253, DIN 19599, mit Bauschutz. Im Positionsstichwort ist die Nennweite des Abganges angegeben.
D. Dachablauf PP senk.WD NIRO DN160 (Stk)
Z.B. HL Hutterer & Lechner Dachablauf, wärmegedämmt HL62/5 oder Gleichwertiges.
