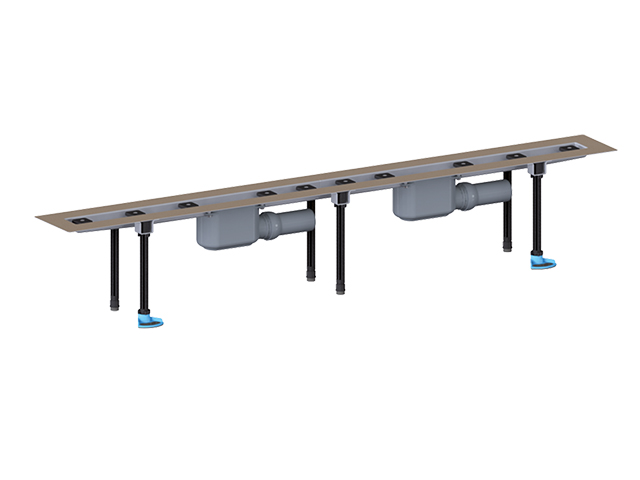

Stainless steel shower gutter to be used in the surface, incl. 2 drains DN50, fixing material and protection, but without cover. Length incl. flange 900mm

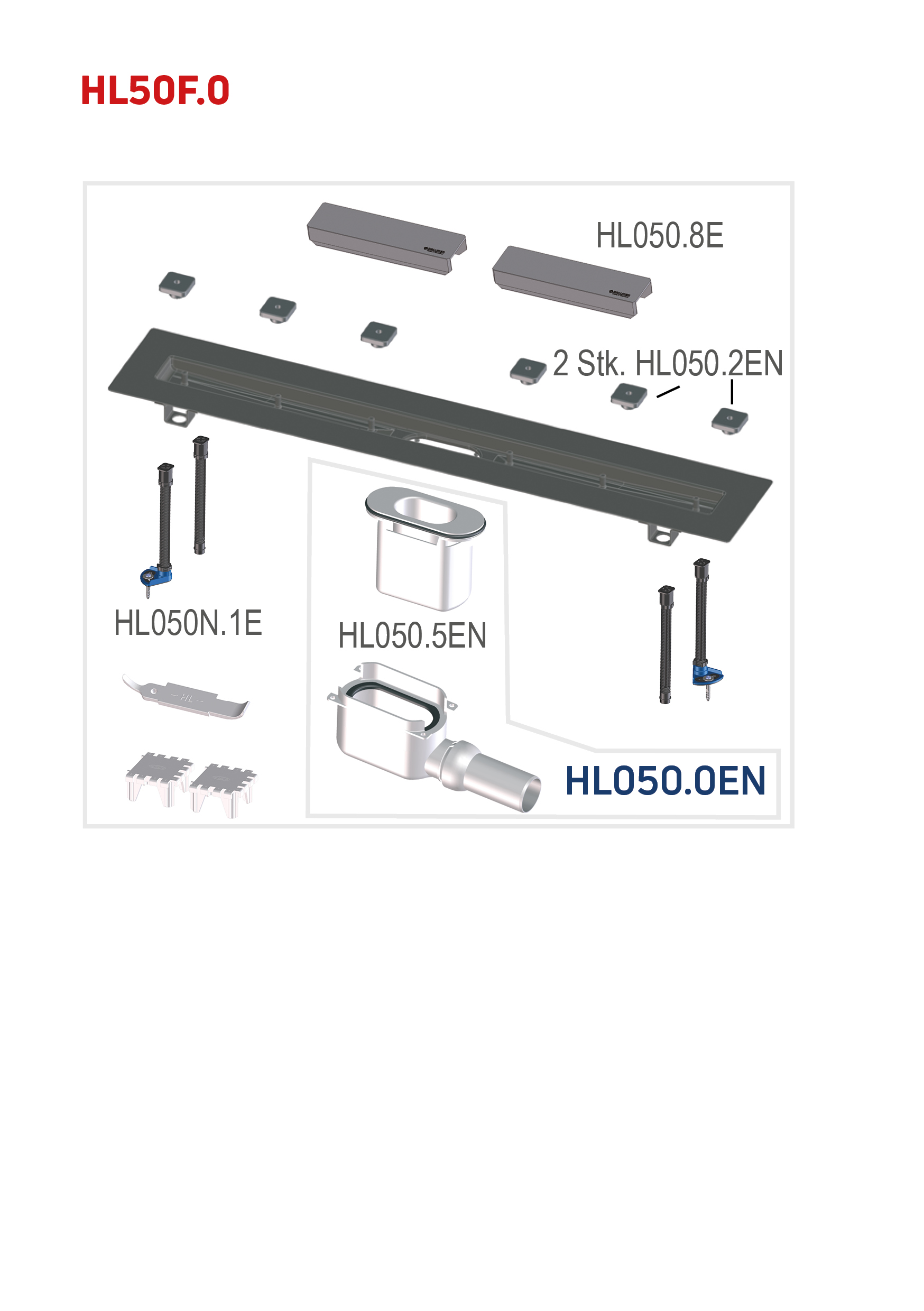

spare parts
HL050.0ENProduct overview / Barriere-free showersDrain DN50 NEW, complete
HL050.2ENProduct overview / Barriere-free showersAdjustment screws (2 pcs.)
HL050.5ENProduct overview / Barriere-free showersSiphon cartridge NEW
HL050.8EProduct overview / Barriere-free showersEdge guide for tiles
HL050N.1EProduct overview / Barriere-free showersAdjustment set (screw pads - 2 pcs.set) - NEW
attachment
HL050.3ENProduct overview / Barriere-free showersAdjustment screws long (2 pcs.)
HL050D/90Product overview / Barriere-free showers / attachmentsStainless steel cover 'Design', fitting to gutter length 900mm
HL050I/90Product overview / Barriere-free showers / attachmentsStainless steel cover 'Individual', fitting to gutter length 900mm
HL050S/90Product overview / Barriere-free showersStainless steel cover 'Standard', fitting to gutter length 900mm
HL6100Product overview / Barriere-free showers / attachmentsSound protection pad 500x250mm
technical data
| material | Edelstahl, PP |
| dimension | 2 x DN50 |
| capacity | 1,4 l/s |
| weight | 3,194 [kg] |
| EAN | 9003076032433 |
| installation height | min. 110mm |
| grate frame |
| grate |
| load class | K3 - 300kg |
| inlet |
| standards | EN1253 |
carton
| unit | 1 [pcs.] |
| weight | 3,7 [kg] |
| EAN/pack. | 9003076032433 |
| height/width/depth | 185/185/1450 [mm] |
| volume | 0,049626250 [m3] |
