floor drain DN40/50 horizontal 123x123mm/115x115mm
floor drain DN40/50 horizontal with flange, trap seal, cut-to-size grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.

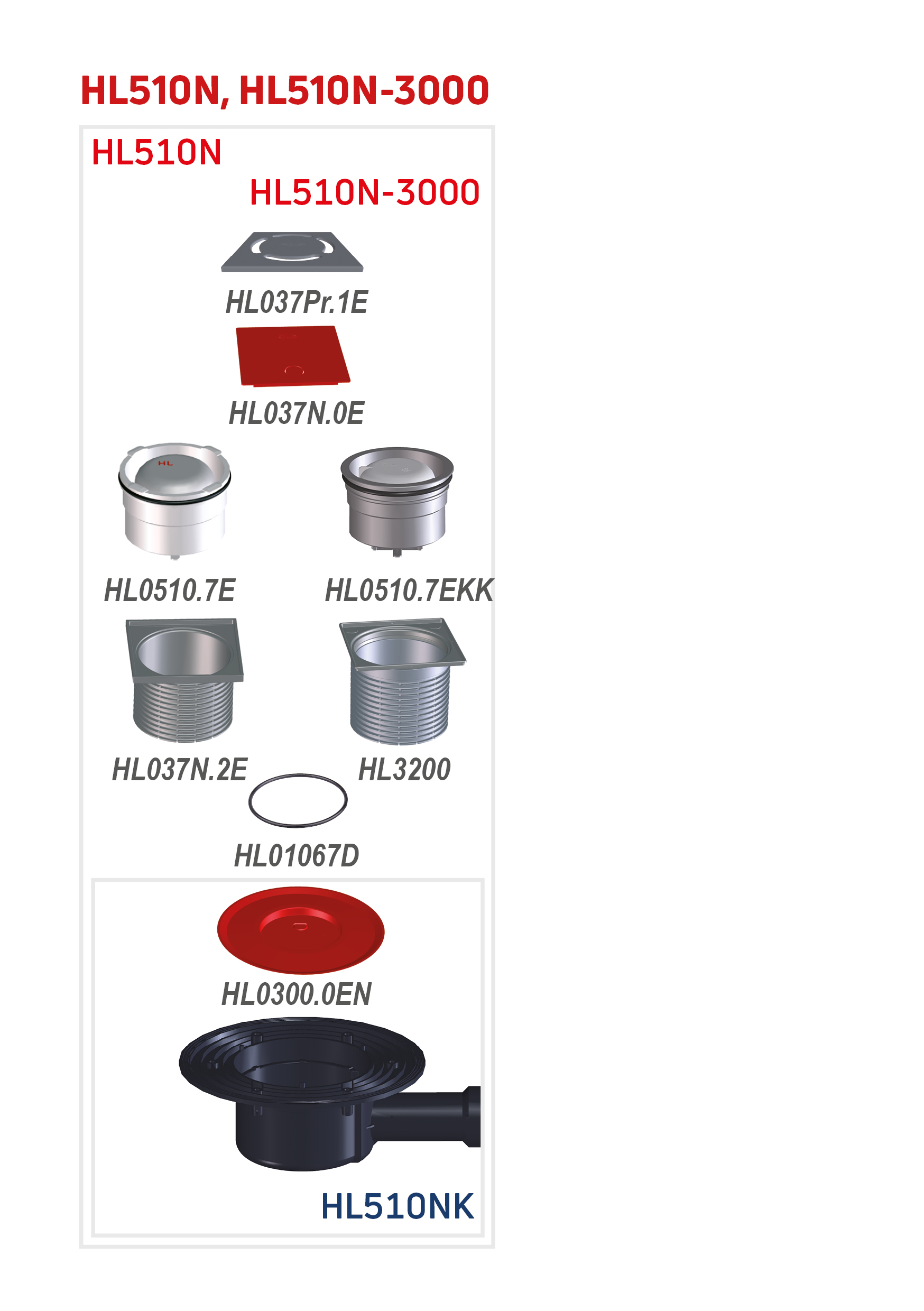

spare parts
HL37N.113 Floor drains/Attachments/Gratings/HL37/HL37N.1grating d 110mm/123x123mm/115x115mm with trap seal. Comes with lot cover
HL037N.2E13 Floor drains/Attachments/Spare parts/HL037N.2Egrate frame d 110mm/90mm/123x123mm incl. O-ring
HL037Pr.1E13 Floor drains/Attachments/Spare parts/HL037Pr.1EStainless steel grate 115x115mm
HL0510.7E13 Floor drains/Attachments/Trap insert/HL0510/HL0510.7Etrap seal cartridge
attachment
HL311012 Balcony and terrace/Attachments/Cover/HL3110/HL3110stainless steel grate (316) 115x115mm
HL312005 Barriere-free showers/floor drains/Attachments/Cover/HL3120stainless steel grate 115x115mm "Quadra"
HL312105 Barriere-free showers/floor drains/Attachments/Cover/HL3121stainless steel grate 115x115mm "Seine"
HL312205 Barriere-free showers/floor drains/Attachments/Cover/HL3122stainless steel grate 115x115mm "Loire"
HL312305 Barriere-free showers/floor drains/Attachments/Cover/HL3123stainless steel grate 115x115mm "Orinoko"
HL312405 Barriere-free showers/floor drains/Attachments/Cover/HL3124stainless steel grate 115x115mm "Nil"
HL312505 Barriere-free showers/floor drains/Attachments/Cover/HL3125stainless steel grate 115x115mm "Yukon"
HL312705 Barriere-free showers/floor drains/Attachments/Cover/HL3127Stainless steel grate 115x115mm 'Primus Design'
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL620005 Barriere-free showers/Attachments/Soundproofing/Substructure elements/Sound Insulation Mats/HL6200Sound protection pad 500x500mm
HL340N13 Floor drains/Attachments/Extensions/HL340N/HL340Nextension 80mm/d 110mm incl. O-ring
HL85N12 Balcony and terrace/Attachments/Extensions/HL85N/HL85Nextension with flange incl. O-ring
HL85NH12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NHextension incl. O-ring with bitumen membrane
Alternatives
HL510NG13 Floor drains/Products/horizontal/HL510N/HL510NGfloor drain DN40/50 horizontal 150x150mm/137x137mm cast iron
HL510NR13 Floor drains/Products/horizontal/HL510N/HL510NRfloor drain DN40/50 horizontal round d 133mm/d 112mm
HL80.112 Balcony and terrace/Products/Balcony and terrace drains/ball-joint/HL80/HL80.1floor drain DN50/75 ball-joint with trap seal, 123x123mm/115x115mm
technical data
| material | PE, PP,ABS,Edelstahl |
| dimension | DN40/DN50 |
| capacity | 0,55 l/sec |
| weight | 0,63 [kg] |
| EAN | 9003076051007 |
| installation height | 93 mm |
| grate frame |
| grate | Edelstahl 115 x 115 mm |
| load class | K3 - 300 kg |
| inlet |
| standards | EN 1253 |
carton
| unit | 1 [pcs.] |
| weight | 0,819 [kg] |
| height/width/depth | 155/225/295 [mm] |
| volume | 0.010288125 [m3] |
single use pallet
| unit | 143 [pcs.] |
| weight | 127,5 [kg] |
| height/width/depth | 2000/800/1200 [mm] |
| volume | 1.92 [m3] |
downloads
HL510N_pr
HL510N_B
HL510N_gr
txt
66.H6 35 Bodenablauf aus Polypropylen (PP) mit Dichtflansch und Geruchsverschluss, Sperrwasserhöhe 50 mm, Abgang waagrecht (waagr.) DN40/50, Ablaufleistung 0,55 l/s, ÖNORM EN 1253, DIN 19535, 19560, temperaturbeständig bis 85°C. Aufsatzrahmen 123x123 mm mit Rost aus NIRO 115x115 mm oder 132x132 mm verfliesbar. Belastungsklasse K3 mit Baustützrahmen und Bauschutz.
A. Bodenablauf PP waagr.DN40/50 Rost NIRO K3 (Stk)
Z.B. HL Hutterer & Lechner Bodenablauf HL510N oder Gleichwertiges.
