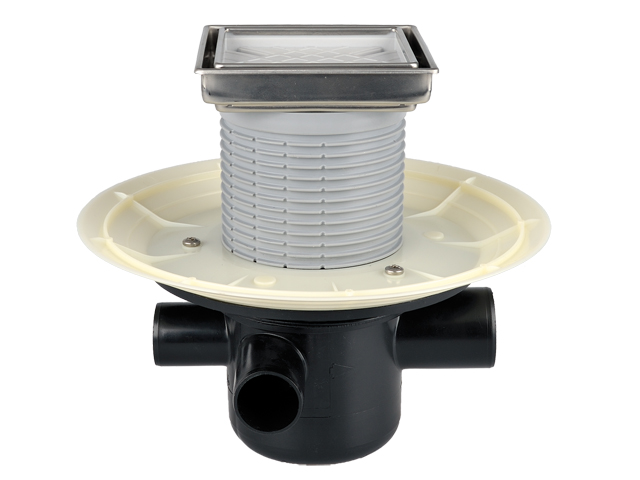

Floor drain DN50 horizontal with 3 side inlets DN40 and extension with tilable frame 132x132mm / 112x112mm
Floor drain DN50 horizontal with flange, sifon cartridge with backwater stop, 3 side inlets DN40 and extension with tilable stainless steel frame 132 x 132 mm / 112 x 112 mm, shortable from 10 - 80 mm. Lot cover included.
spare parts
HL3020Product overview / Floor drains / attachmentsExtension with tilable frame d 110mm, stainless steel frame 132x132mm / 112x112mm
HL03020.1EProduct overview / Floor drainsMould for tiles 112x112mm, fits to HL3020
HL304K-3020Product overview / Floor drains / horizontal / flangeFloor drain body DN50 horizontal with 3 side inlets DN40 and deep, pre-installed lot cover.
HL0300.6EProduct overview / Floor drainstrap cartridge
HL03020.0EProduct overview / Floor drainsDeep lot cover, fits to HL3020 series
attachment
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85N-3020Product overview / Sealing kits / Extensions / extensionsExtension with flange and O-ring and deep, pre-installed lot cover, fitting to HL3020 series.
Waterproofing Kits
technical data
| material | PE |
| dimension | DN50 |
| capacity | 0,5 l/s |
| weight | 0,85 [kg] |
| EAN | 9003076034369 |
| installation height | 155 mm |
| grate frame | 10 - 80 mm / 132 x 132 mm |
| grate | 112 x 112 mm |
| load class | D3 - 300 kg |
| inlet | 3 x DN40 |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 1,144 [kg] |
| EAN/pack. | 9003076034369 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
