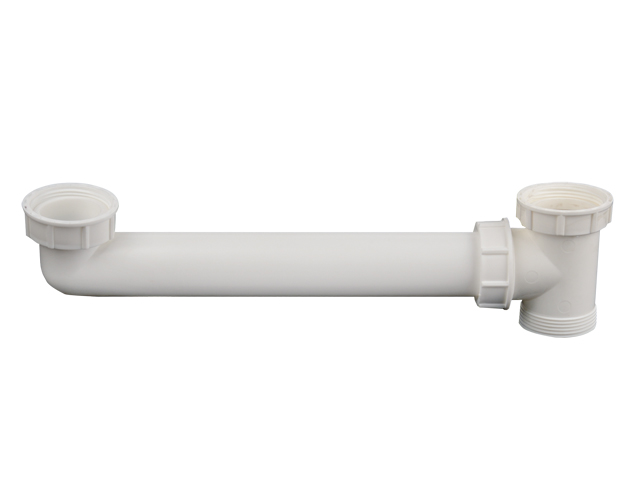

Outlet connection for double sinks DN40 x 1 1/2"
outlet connection DN40 x 1 1/2' for double sinks. max. distance 240 mm

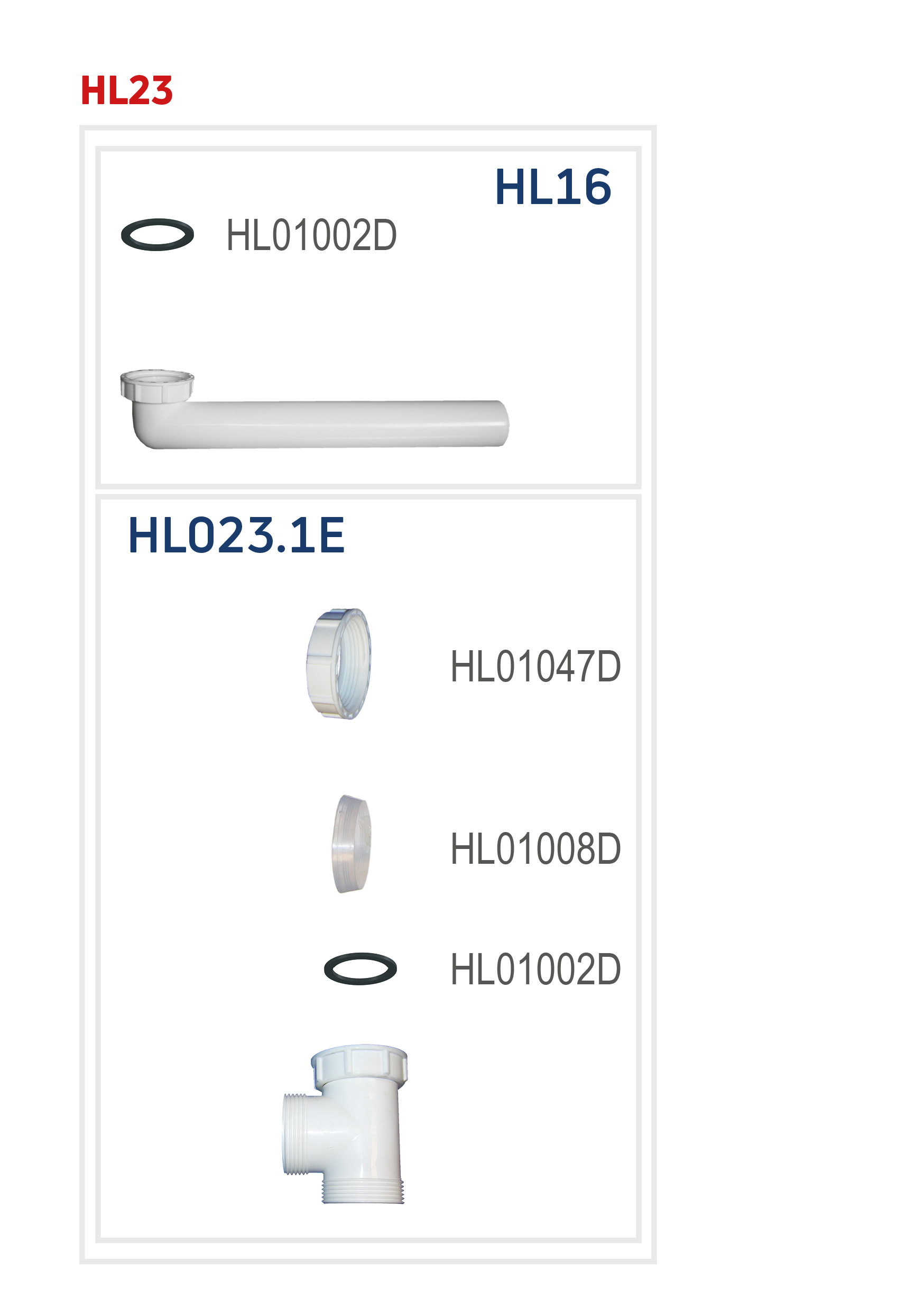

spare parts
HL023.1E01 Kitchen traps/Attachments/Spare parts/HL023.1Etee DN40x1 1/2'
HL01002D01 Kitchen traps/Attachments/Spare parts/HL01002Dgasket 1 1/2'
HL01008D01 Kitchen traps/Attachments/Spare parts/HL01008Dgasket wedge shaped T40
HL01047D01 Kitchen traps/Attachments/Spare parts/HL01047Dlocking nut 1 1/2'
HL1603 bath tubs/Attachments/Spare parts/Spare Parts Bathtubs/HL16elbow and tube DN40x1 1/2'
attachment
HL10/4001 Kitchen traps/Attachments/Pipe extensions/HL10/HL10/40extension tube DN40
HL12.101 Kitchen traps/Attachments/Pipe extensions/HL12/HL12.1reducer/spacer 1 1/4'x1 1/2'
HL12.201 Kitchen traps/Attachments/Pipe extensions/HL12/HL12.2reducer/spacer 1 1/2"x1 1/2"
HL12.401 Kitchen traps/Attachments/Pipe extensions/HL12/HL12.4reducer/spacer 2'x1 1/2'
technical data
| material | PP |
| dimension | DN40 |
| capacity |
| weight | 0,125 [kg] |
| EAN | 9003076100231 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards | EN274 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,135 [kg] |
| height/width/depth | 120/120/350 [mm] |
| volume | 0.00504 [m3] |
carton
| unit | 10 [pcs.] |
| weight | 1,677 [kg] |
| height/width/depth | 260/250/410 [mm] |
| volume | 0.02665 [m3] |
