Product overview

Air condition and ventilation

HL138H

product link (product category - independent)


Download PDF

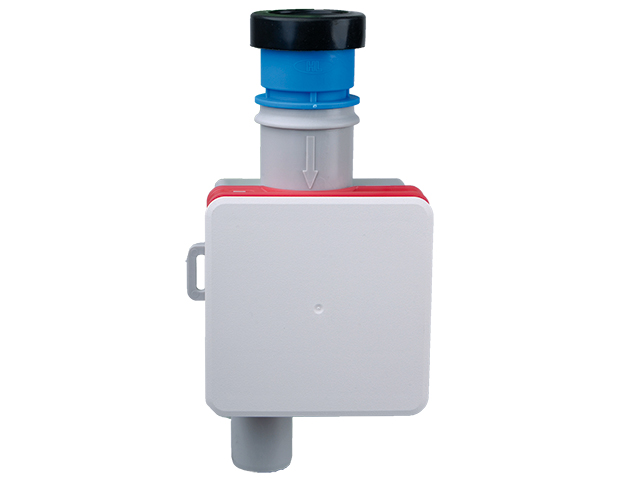

In-wall siphon for condensate water with hygienic adapter

HL138H

  • main data
  • technical data
  • packaging data
  • downloads

spare parts

 HL0138.1EProduct overview / Air condition and ventilationLot cover  HL0138.2EProduct overview / Air condition and ventilationCover plate  HL0138.3EProduct overview / Air condition and ventilationsiphon cartridge  HL01097DProduct overview / Air condition and ventilation2 x Gasket for cartridge of HL138 15-22mm  HL0138.HEProduct overview / Air condition and ventilationHygienic adapter for HL138  HL138KProduct overview / Air condition and ventilationDrain body for in-wall siphon for condensate water/ 100x100mm  HL01096DProduct overview / Air condition and ventilationGasket 20-32mm for HL138

Alternatives

 HL138Product overview / Air condition and ventilationIn-wall siphon for condensate water for air conditioners DN32 - 100x100mm

technical data

materialPP/ABS
dimensionDN32
capacity72l/h
weight0,3
[kg]
EAN9003076000166
installation height
grate frame
grate
load class
inlet
standardsDIN19541, VDI6022,

PE-bag

unit1
[pcs.]
weight0,309
[kg]
EAN/pack.9003076000166
height/width/depth120/120/240
[mm]
volume0,003456000
[m3]

carton

unit10
[pcs.]
weight3,461
[kg]
EAN/pack.
height/width/depth320/250/410
[mm]
volume0,032800000
[m3]

single use pallet

unit450
[pcs.]
weight166
[kg]
EAN/pack.
height/width/depth1800/800/1250
[mm]
volume1,800000000
[m3]

downloads

Foto Print
HL138H_pr.tif
max.
Foto Web
640x480/300dpi
Foto Parts List
150x150/72dpi
Techn. drawing
HL138H_1_a.pdf
pdf
CAD
HL138H_2_a1.dxf
dxf
example of use
HL138H_PZ.pdf
pdf
