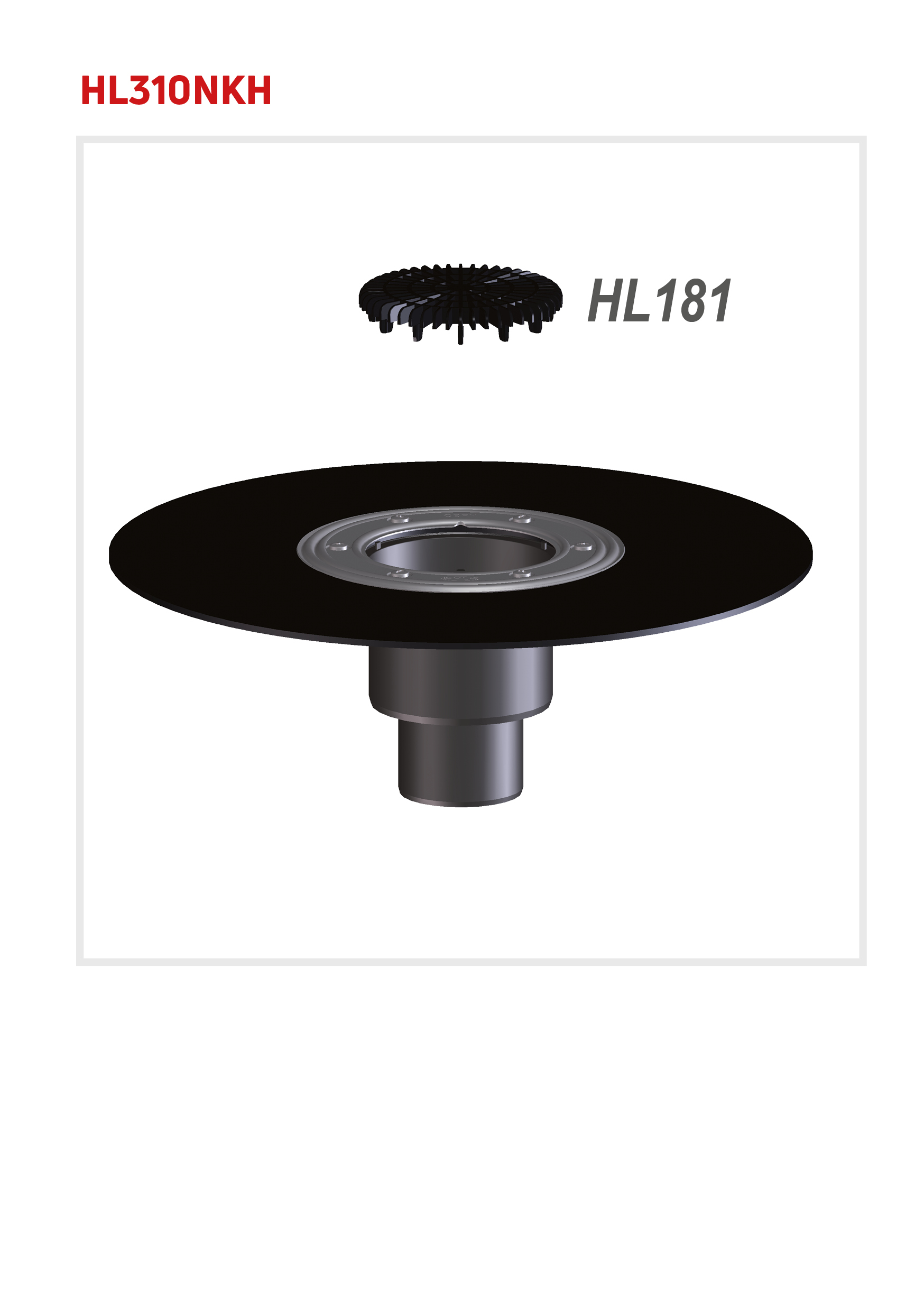

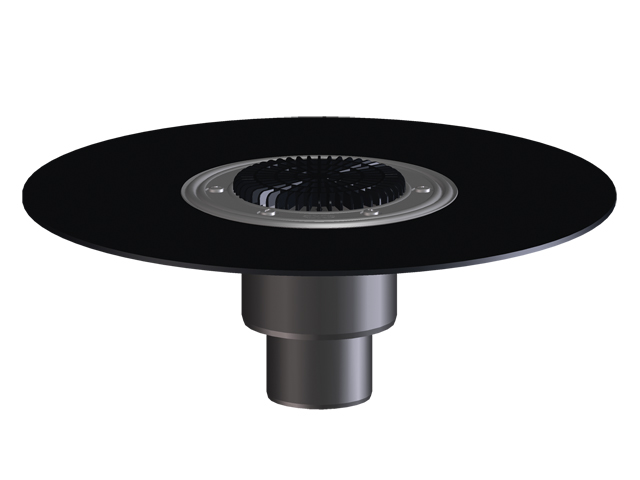

Balcony- and terrace drain body DN50/75/110 with bitumene flange
Balcony- and terrace drain body DN50/75/110 vertical, with pre-welded bitumene flange for a perfect connection to bitumene waterproofings. Lot cover included.
spare parts
attachment
Alternatives
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
technical data
| material | PE, Bitumen |
| dimension | DN50/75/110 |
| capacity | 1,65 l/s |
| weight | 1,12 [kg] |
| EAN | 9003076037018 |
| installation height | 144 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 1,34 [kg] |
| EAN/pack. | 9003076037018 |
| height/width/depth | 145/260/435 [mm] |
| volume | 0,016399500 [m3] |
single use pallet
| unit | 90 [pcs.] |
| weight | 130,6 [kg] |
| EAN/pack. |
| height/width/depth | 1800/800/1300 [mm] |
| volume | 1,872000000 [m3] |
