"PRIMUS-DRAIN"

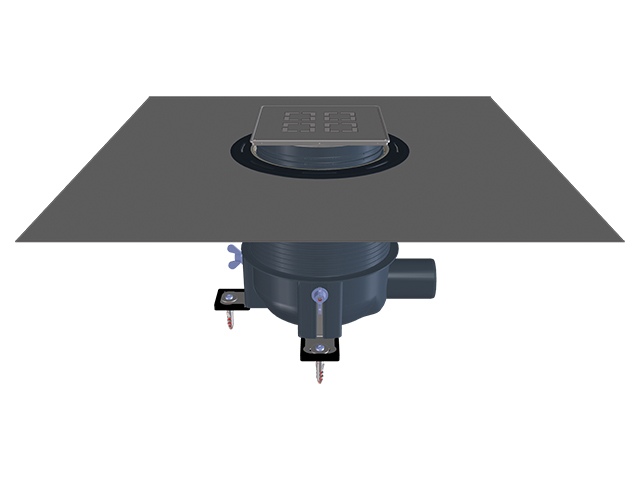

Shower Drain designed with massive stainless steel grating „Cut“, including 3 height adjustable mounting angles, which can be fixed to the floor. There is no necessity to exactly adjust the outlet unit to the top edge of the screed during the installation process. Sticking out parts can easily be sawed off to level the height of the screed. The top unit can be adjusted to the tile height after installation of the sealing kit.
material | PP, Edelstahl |
dimension | DN50 |
capacity | 0,70l/s |
weight | 1,898 [kg] |
EAN | 9003076041800 |
installation height | 80-250mm (Estrichoberkante) |
grate frame | Edelstahl V4A 8-30mm/145x145mm |
grate | Edelstahl V4A 138x138x5mm |
load class | L - max. 1,5 t |
inlet |
standards | EN1253 |
unit | 1 [pcs.] |
weight | 2,205 [kg] |
EAN/pack. | 9003076041800 |
height/width/depth | 240/295/240 [mm] |
volume | 0,016992000 [m3] |
unit | 91 [pcs.] |
weight | 211 [kg] |
EAN/pack. |
height/width/depth | 1850/800/1200 [mm] |
volume | 1,776000000 [m3] |
