grating d 110mm/PVC-collar 185x185mm/115x115mm and trap seal Primus
grating d 110 mm with PVC-collar 185 x 185 mm, stainless steel grate 115 x 115 mm and trap seal PRIMUS. Total height 109 mm, frame height 30 mm + 1,5 mm

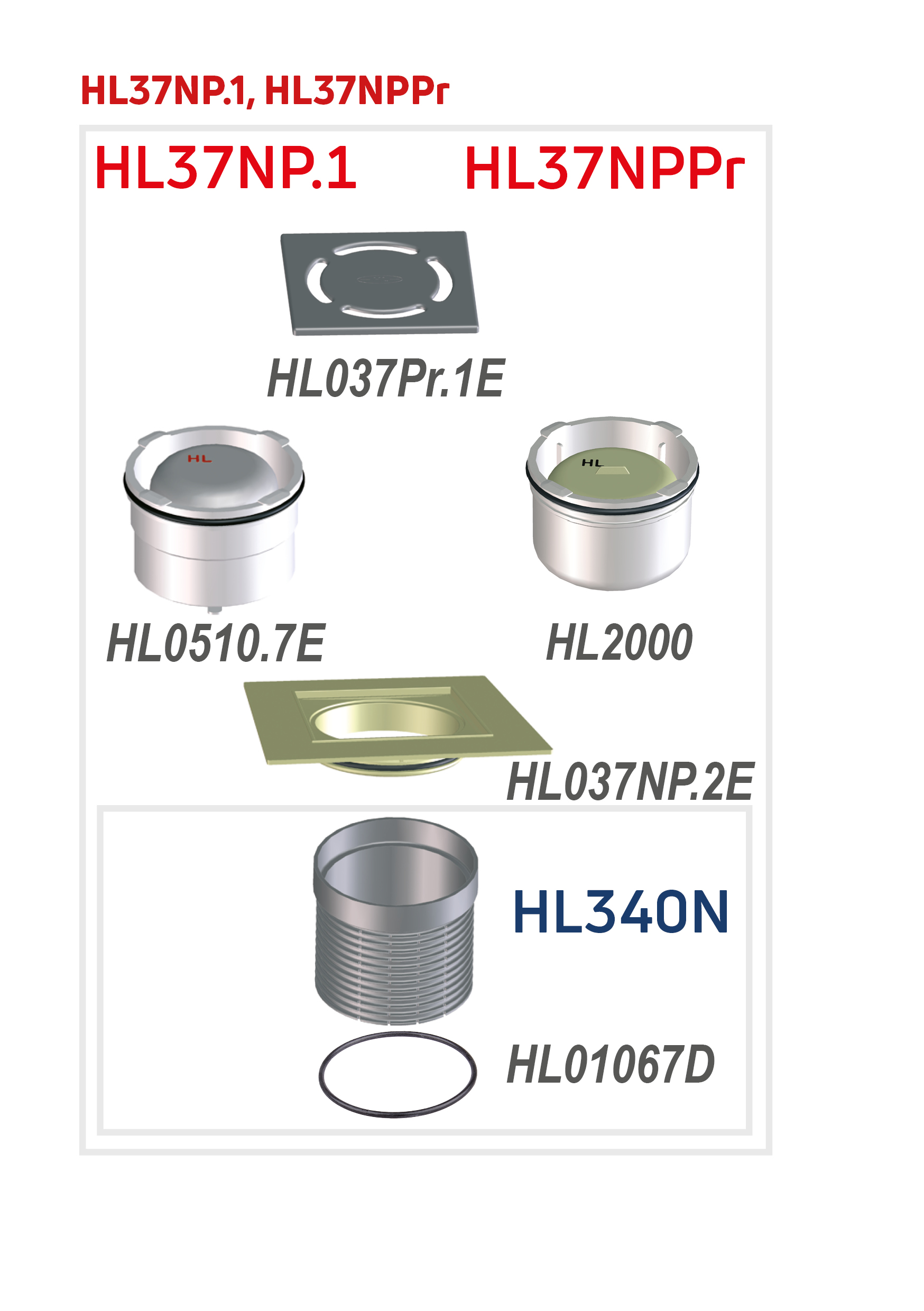

spare parts
HL037NP.2EProduct overview / Floor drainsPVC-collar 185x185mm incl. O-ring
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL01067DProduct overview / Floor drainsO-ring 92x4mm
attachment
HL0510.7EProduct overview / Floor drainstrap seal cartridge
HL090.4EProduct overview / Balcony and terraceflap cartridge
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
extensions
technical data
| material | PP/PVC |
| dimension | d 110 mm |
| capacity |
| weight | 0,342 [kg] |
| EAN | 9003076022830 |
| installation height | 111 mm |
| grate frame | 185x185mm |
| grate | Edelstahl 115x115mm |
| load class | K - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,39 [kg] |
| EAN/pack. | 9003076022830 |
| height/width/depth | 140/200/200 [mm] |
| volume | 0,005600000 [m3] |
